High Resolution Outdoor Led Video Screen , Electronic Advertising Display 27.7kg

Price Negotiable
Price: $399~999
MOQ: 1 square meter
Delivery Time: 20-25days
Brand: BAKOVISION
Product Description

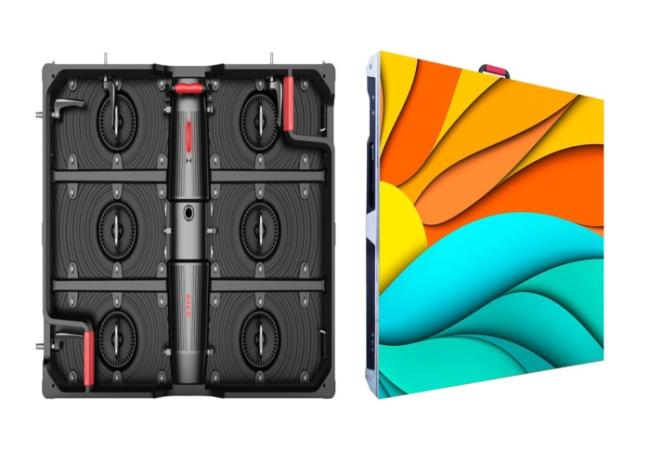

P8mm SMD Fixed LED Board, High Resolution Billboard LED Display for Outdoor Advertising



Advantages:

1. Competitive Price: Orders directly from manufacturer to reduce intermidate expenditure, buy high quality sign products with more reasonable price;



2. First-class Quality: We provide you with high quality signs produced by our experienced technicians using technology and high quality raw materials;



3. Strict Leading Time: Depending on the type and quantity of ordered signs, we generally need only 4 to 15 days to complete the production;



4. OEM service offered, Customized service offered, Design service offered;



5. Competitive price, Short delivery, Timely transportation, Installation instruction;



6. Long time cooperate with signs company, construction company, design company, advertising company, chain shops, distributers, hotels, shopping malls and etc.

FAQ

How to choose a proper led screen for your need?
You just need to think of three simple questions when you choose a led screen by yourself.



1.Will you use it indoor or outdoor?
2.Is it for rental use(need to be moved from one place to another place very often) or for fixed installation(to be installed in one place for ever)
3.what is the appoximate size of the led screen you would like to purchase?



Which pixel pitch should i choose?
There are many different pixel pitch from 1.667--20,25,30mm, there is a roughly principle-usually small pixel(1.667mm-10mm) used for indoor led screen, bigger pixel (10mm-30mm) used for outdoor led screen(for example high way huge advertisement).



How to install it after i received it?

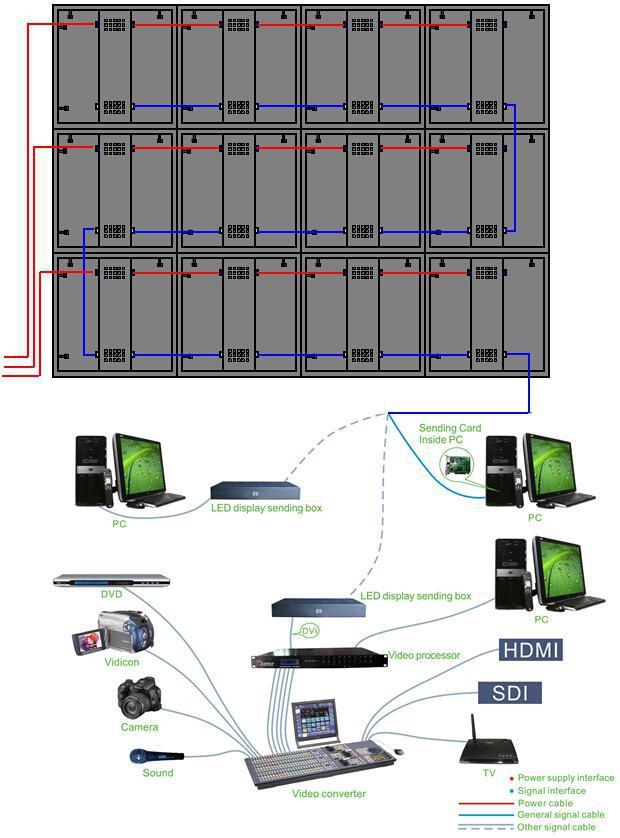

We will offer you the drawing to guide you for installation, we could also offer steel drawing, software set up drawing or photo or send our engineer fly to you for help if needed.



Model Spaceship-8
Pixel Pitch 8mm
Pixel Density 15625 pixels/m2
LED Type SMD2727
LED Configuration 1R1G1B
Cabinet Dimension 1024mm*768mm
Moduel Size 512*256
Cabinet Material cold steel
Ingress Protection
(front/rear)
IP65/IP54
Brightness >6500nits
Viewing Angle(H/V) 160°/140°
Driving Method 1/8 scan
Frame Refresh ≥ 60Hz
Data Refresh Rate >1920Hz
Gray Scale 14~16bit
Power Consumption(avg.) 245w/m2
Input Voltage AC 110/220±10%
50~60Hz
Weight 27.7KG
Temperature
(operating/storage)
-20~50°C / -40~60°C
Humidity(operating/storage) 10%~90%RH
/ 10%~85%RH
MTBF ≥1000hrs
Life Span ≥100000hrs
Pixel Failure <0.0003
