P6.25 Outdoor High Resolution Stage Rental LED Display Low Power Consumption Wide Viewing Angle
P6.25 Outdoor High Resolution Stage Rental LED Display Low Power Consumption Wide Viewing Angle
Product Description:
1, Outdoor high resolution and high brightness
2, Ingress protection being IP65, weather proof and dust proof.
3, High brightness uniformity and color uniformity(≥95%)

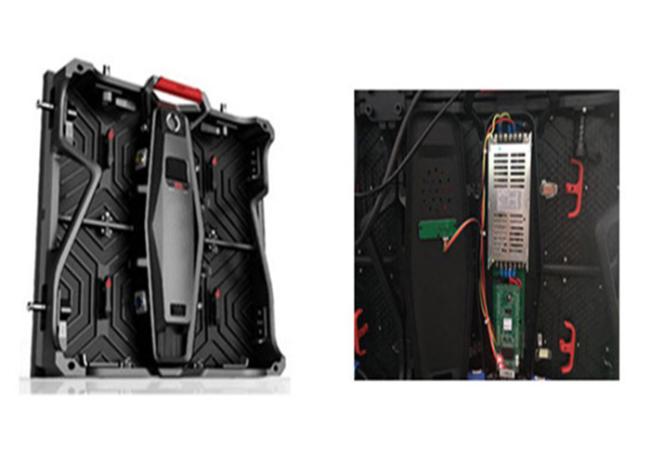

4, Super thin and light with die-casting aluminum cabinet design.
5, Good anti-UV and anti-oxidation performance.
6, Large viewing distance, 140° in horizontal, 140° in vertical.
7, Excellent flatness and no splicing gap between modules
8, Quick installation and removal with facile connection lock
Applications:

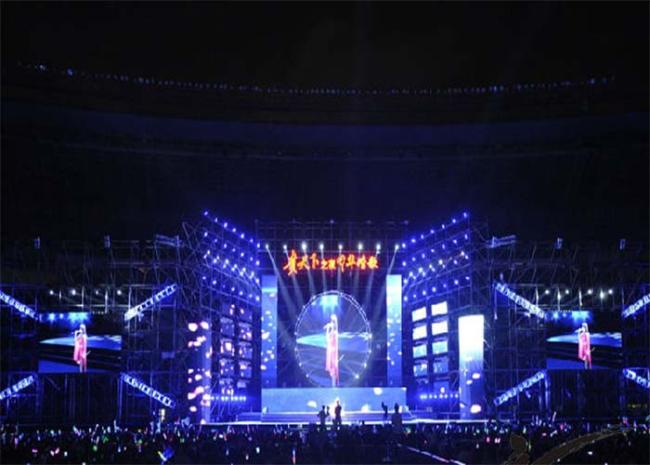

concerts, exhibitions, stage,events,bar and party etc.
Specification
| Model | ORA-6.25 |
| Pixel Pitch | 6.25mm |
| Pixel Density | 25600 pixels/m2 |
| LED Type | SMD3535 |
| LED Configuration | 1R1G1B |
| Cabinet Dimension | 500x500mm/500x1000mm |
| Cabinet Resolution | 80*80px/80*160px |
| Cabinet Weight | 8kg/14kg |
| Cabinet Material | die casting aluminum |
| Ingress Protection(front/rear) | IP65/IP54 |
| Brightness | >6500nits |
| Viewing Angle(H/V) | 140°/140° |
| Driving Method | 1/10 Scan |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | >1500Hz |
| Gray Scale | 16bit |
| Power Consumption(avg.) | 420w/m2 |
| Input Voltage | AC 110/220±10%, 50~60Hz |
| Temperature(operating/storage) | -20~50°C / -40~60°C |
| Humidity(operating/storage) | 10%~90%RH / 10%~85%RH |
| MTBF | ≥1000hrs |
| Life Span | ≥100000hrs |
| Pixel Failure | <0.0003 |
