Commercial P1.66 Indoor HD LED Display Fine Pitch Shaped Screen Lightweight
P1.66 Indoor HD LED Display Fine Pitch Shaped Screen Lightweight Cabinet Panel Assemble Flexibly
Features
1. Suitable for indoor, commercial applications, banking, financial securities, post office, ferry, shopping malls, railway stations, telecommunications, government, offices, monitoring, schools, restaurants, hotels, entertainment, enterprises and other various indoor places.

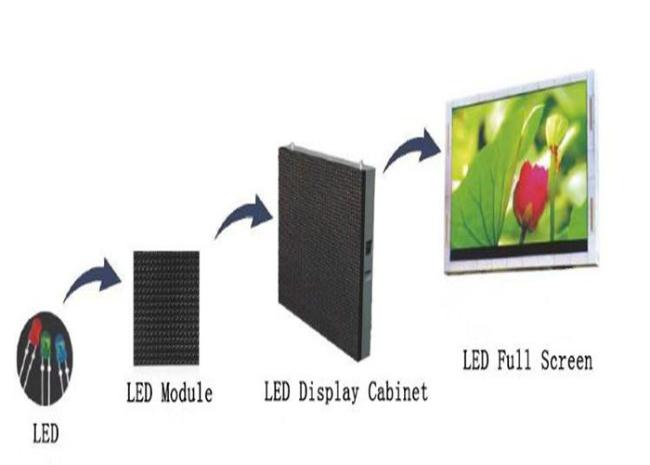

2. Modularization design make it easier for the installation .User just mounts iron sheet or magnetic product on the surface which convenient for maintenance.
3. Lower power consumption and longer lifespan time about 50,000 hours.
4. The LED Display can change the shape by your needs,such as arc screen.

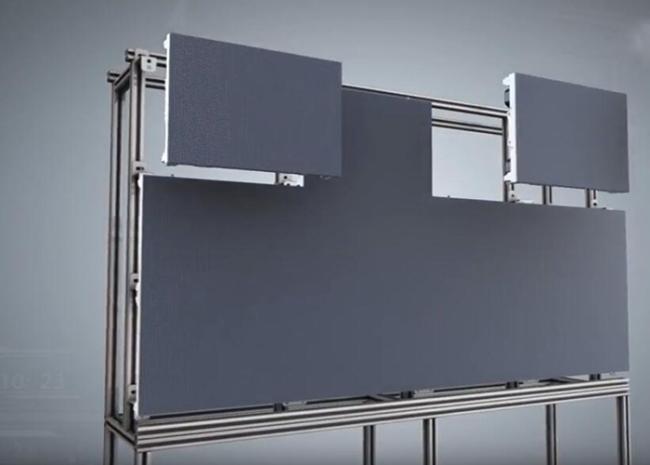

5. Super thin and super light cabinet, convenient for transportation and installation.Due to its wide application range, there are different ways to install,which owns a flexible installation
6. The HD series owns high definition and it is made of die-casting aluminum, through CNC precision processing.Then the error is controlled within +/-0.05mm, it can achieve seamless connection.
Details
| Pixel Pitch | 1.66mm |
| Pixel Density | 360000px/m2 |
| LED Type | SMD1010 |
| LED Configuration | 1R1G1B |
| Cabinet Weight | 4.6kg |
| Cabinet Material | die-casting |
| Ingress Protection (front/rear) | IP40/IP21 |
| Brightness | >800nits |
| Viewing Angle(H/V) | 140°/140° |
| Driving Method | 1/30 Scan |
| Power Consumption(avg.) | 220w/m2 |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | ≥ 1500Hz |
| Gray Scale | 16bit |
| Power Supply | AC 110/220±10% 50~60Hz |
| Temperature (operating/storage) | -20~50°C -40~60°C |
| Humidity(operating/storage) | 10%~90%RH 10%~85%RH |
| MTBF | ≥1000 Hours |
| Life Span | ≥50000 Hours |
| Pixel Failure | <0.0003 |
Images
Advantages of Factory
1. 10 years' production experience, have passed certifications CE/ROHS/FCC/ISO9001/Supplier assessment.
2. 10000square meters manufacturing base and complete and integrated LED supply-chain.
3. Standardized management and production.So,every production process is well controlled.
4. More than 72 hours of screen aging test before leaving factory.
5. We have CE RoHS and other certificates to ensure that our products are qualified.
FAQ
Q1:How to choose a proper led screen for need?
A:You need to think about the following three questions.
1)Where will you use for?Just for indoor or outdoor?
2)Did you want to install it in one fixed place or want it to move anytime and anyway convenient?
3)what is the specific size of the led screen you would like to purchase?
Q2:May I know the shipment?
A:Yes,we will ship with 20-25 working days after we received your deposit.
Q3.How about your package?
A:Well,we usually pack in wooden boxes or flight case.It decide on your size and your needs.We respect your choose.
