P1.25 Ultra Small Pixel Pitch LED Display SMD0909 HD RGB Digital Panel
P1.25 Ultra Small Pitches Indoor Fixed LED Display SMD0909 HD RGB Digital Panel
Product Description:
- P1.25 ultra small pitches got you a impressive visual experience.
- Viewing angle: Widely viewing angle :With 140 degree in horizontal and 140degree in vertical.
- Design: Standard panel design made stocking, transportation, construction and maintenance easy and simple.
- High precision with seamless stitching made the picture vivid and natural.
- Low power consumption and long life span save your cost greatly.
- Working environment: Silent operation and little heat generated are available by the no fan design.
- The fast lock system made the mask more flat and improved its display effect.
- Contrast ratio: The contrast ratio for RGB reached 3:6:1, bringing the product excellent performance.
- Ultra slim design: Single cabinet weights only 4.6kg with adopting fashionable die-casting aluminum made the product easy to operate.
Applications:

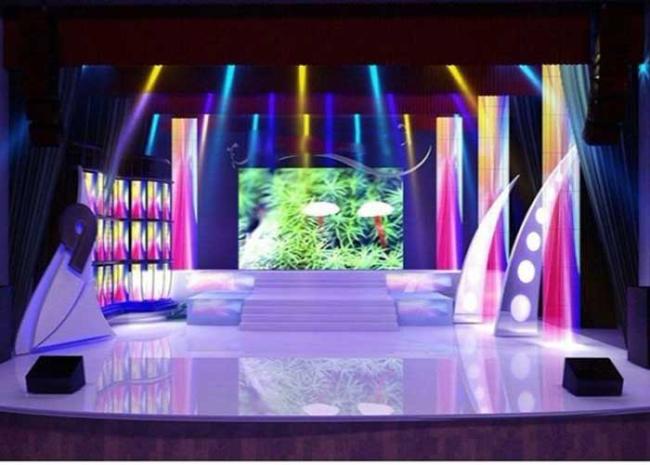

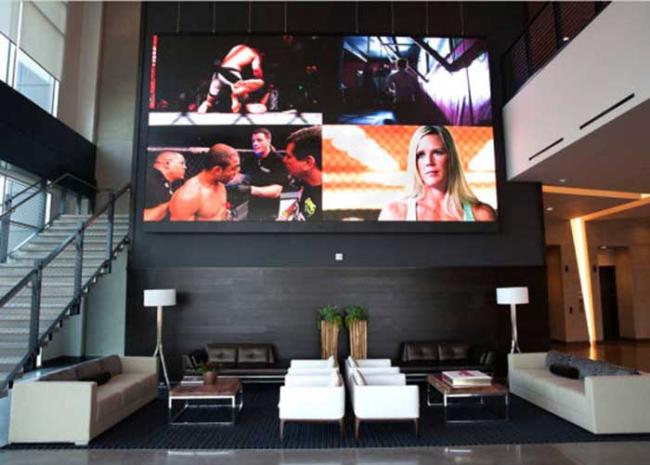

Sports Stadium, indoor advertisement, Entertainment centers, Building facilities, Community centers, and Maintenance shops etc.
Technical Specification
| Model | IU-1.2 |
| Pixel Pitch | 1.25mm |
| Pixel Density | 640000 px/m2 |
| LED Type | SMD0909 |
| LED Configuration | 1R1G1B |
| Cabinet Dimension | 400*300mm |
| Cabinet Resolution | 320*240px |
| Cabinet Weight | 4.6kg |
| Cabinet Material | die-casting |
| Ingress Protection (front/rear) |
IP40/IP21 |
| Brightness | >800nits |
| Viewing Angle(H/V) | 140°/140° |
| Driving Method | 1/30 Scan |
| Power Consumption(avg.) | 220w/m2 |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | ≥ 1500Hz |
| Gray Scale | 16bit |
| Power Supply | AC 110/220±10% 50~60Hz |
| Temperature (operating/storage) |
-20~50°C -40~60°C |
| Humidity(operating/storage) | 10%~90%RH 10%~85%RH |
| MTBF | ≥1000 Hours |
| Life Span | ≥50000 Hours |
| Pixel Failure | <0.0003 |
FAQ :
1. Q: Can I get some samples?
A: Yes,sample order is available for quality check and market test.
2. Do you have the products in stock?
A: Yes ,of course.
3. How does your factory do regarding the quality control?
A: Quality is priority. Every product will be fully assembled and carefully tested before packing and shipping.
4. Is it Available to print customer required logo on your led product ?
A: Surely it is .Please inform and confirm the logo design details with our team ahead of the production.Then,we will follow your requirement.
