P33/50mm Flexible Led Video Curtain Rental , 80% Transparent Led Curtain Screen
P(33/50mm) LED Curtain Display,80% Transparency High Brightness LED Video Wall
Description
Weight per square meter (approx. 7 kg / m²), IP65 rating on the back and front, concealed cable and connector and remote power supply box, material (usually aluminum) for unique heat dissipation.
All of these features make transparent LED displays or “digital grids” ideal for harsh environments.
This special series of high-brightness LEDs also provide daylight visibility up to 70 mm pixel pitch. Other products with 80,100 or more pixel pitches are typically based on a single pixel rather than an LED strip, making it ideal for night-time appearance and architectural installations close to LED lighting. These features are ideal for installation on the facade of a building (MEDIA FACADE), where it is important to have lights inside that allow people to see the outside through the digital grid. This product is also very suitable for special landscape and architectural design.
Advantage
Special LED displays for indoor full color, with possible viewing even in daylight thanks to the high brightness LEDs. The series is based on a unique and innovative design, lightweight, thin, easy to install and manage based on integration of glass and LEDs. The modular configuration, with embedded controller and wiring allows for easy instal
Our Product
| MODEL | 33/50mm |
| LED Type | DIP346 |
| Pixel configuration | 2R2G2B |
| Pixel pitch(H×W) mm | 33/50 |

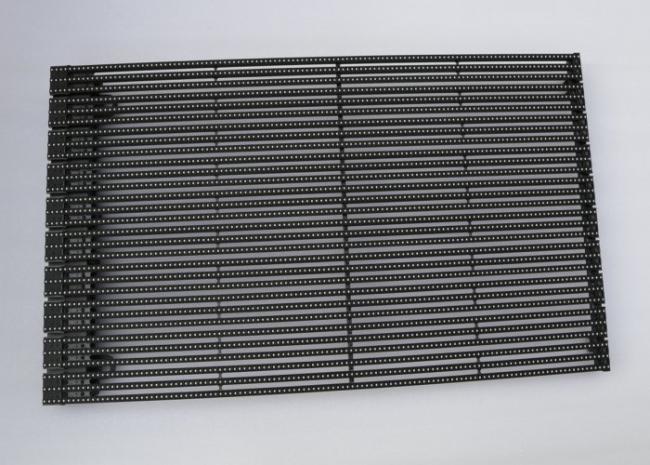

| Module size(H×W×L) mm | single light strip |
| Resolution |
30×10(H×W) other sizes |
| Cabinet size(H×W×L)mm | 1000×500×60 other sizes |
| Net.weight/Cabinet | 7.0kg |
| Ingress Protection (Front/Rear) | IP65 |
| Power | AC 240 or 110±10%,50~60Hz |
| Serviceability | Front&Rear service |
| Max.Power consumption | ≤430W/m² |
| Avg.Power consumption | 150W/m² |
| Brightness | 6500cd/m² |
| Pixel density(pixel/m²) | 600 |
| Viewing Angle(H/V) | 120°/60° |
| Contrast ratio | 3,000:1 |
| Transparency | 80% |
| Operation temperature/humidity | -30°C to +50°C/10% to 95% |
| Lifetime(50%brightness) | 80,000hours |
| Gray scale | 14 bit |
| Refresh rate | ≥1920Hz |
| Frame rate | 30/50/60fps |
Company Information:
Shenzhen Bako Technology Co. Limited is a full range manufacturer and LED display solutions provider and its ancillary systems worldwide since 2009, headquartered in Shenzhen with a 6, 000m² production state of the art facility to cover international demands. We provide a one-stop shopping in the design, production, and distributions of LED displays and solutions for our customers domestically and globally.
Our products include ranges of indoor, outdoor, fixed, rental and creative LED Solutions for various applications including sports, advertisement, concerts, shopping malls, stadiums, exhibitions or any other indoor and outdoor events that comes to your imagination.
We strictly follows ISO9001: 2008 quality management system and passed CE, FCC, UL, RoHS, CCC etc. All of these factors ensure high quality LED products and effective services.
We keep the company culture ``Professional, Concentration, Focus`` aimed at LED. With the development of LED technology and the perfervid competition in the LED field.
