Fine Pitch Led Publicity Screens , Shopping Mall Led Advertising Board 1/10 Scan

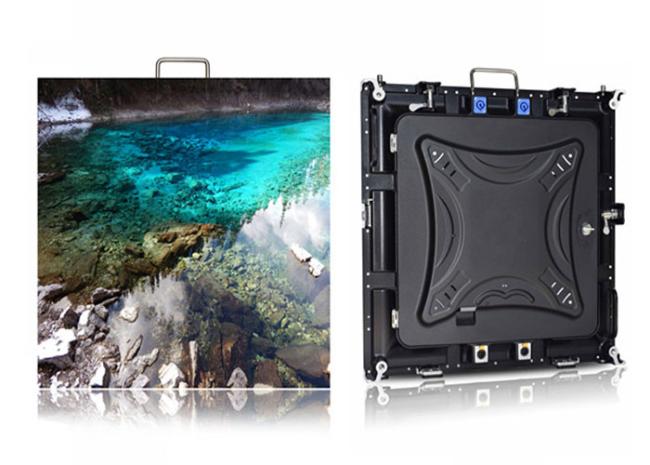

Fine Pitch Indoor rental LED Display with Slim and Light Weight Aluminum Cabinet
Description:

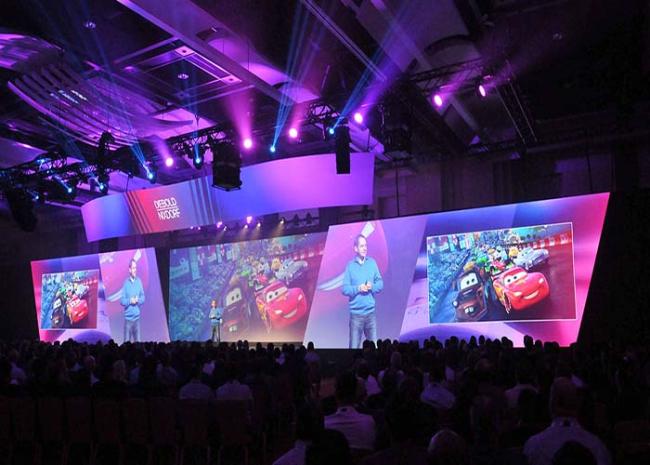

Indoor rental LED display is widely used for stage, concert, show, banquet, wedding, stage
background, public advertising etc.
Features:
1. Standard cabinet size of 500mm*500mm, 500*1000mm, it is very convenient to set up a golden16:9 aspect ratio screen.
2. Light weight of only 10kg/ panel, with exquisite cabinet size, the LED panel would get less chance to be damaged during the installation.
3. Seamless connection. The cabinet is die-casted by high precision machine, plus dual locks are armed on each side of the cabinet, so the installation is more secure and gapless.
4. Front access and rear service design are both available. The module, power supply and receiving card could be removed from the front side. That makes the way of installation more flexible.
Advantages:
1. High gray scale and high refresh rate. By adopting high quality material with excellent PCB design, the gray scale is up to 16bit.
2. Intelligent. The panel is with temperature, voltage & operation time information, that would help users a lot during the event management.
3. Amazing visual effect with stable performance. Our product is used superior quality material, with the outstanding design, the visual effect is extraordinary. And the performance is very reliable.
Technical Parameter:
| Model | IRA-2.98 | IRA-3.9 | IRA-6.25 |
| Pixel Pitch | 2.98mm | 3.91mm | 6.25mm |
| Pixel Density | 112896 pixels/m² | 65536 pixels/m² | 25600 pixels/m² |
| LED Type | SMD2121 | SMD2121 | SMD3528 |
| LED Configuration | 1R1G1B | 1R1G1B | 1R1G1B |
| Cabinet Dimension |
500*500mm 500*1000mm |
500*500mm 500*1000mm |
500*500mm 500*1000mm |
| Cabinet Resolution |
168*168px 168*336px |
128*128px 128*256px |
80*80px 80*160px |
| Cabinet Weight | 8kg | 8kg | 8kg |
| Cabinet Material | die casting aluminum | die casting aluminum | die casting aluminum |
| Ingress Protection | IP40/IP21 | IP40/IP21 | IP40/IP21 |
| Brightness | >1200nits | >1200nits | >1200nits |
| Viewing Angle | 140°/140° | 140°/140° | 140°/140° |
| Driving Method | 1/22 Scan | 1/16 Scan | 1/10 Scan |
| Frame Refresh | ≥60HZ | ≥60HZ | ≥60HZ |
| Data Refresh Rate | >1500HZ | >1500HZ | >1500HZ |
Services:
Pre-sales support:
1. Help you to choose the most appropriate products within budget.
2. Design the framework structure to install our led products with technical drawing.
3. We offered software customization for our your specific usage.
After- sales service:
1. We promise you more than just two years warranty service.
2.We provide free maintenance services including remote configuration, technical consultation, and trouble shooting for you.
3. We promise a life time follow-up service for all the equipment supply by our company. These include continuously improve of system functions and upgrade of system software.
4. We offered training to our customer who includes operating and maintenance of our products.
Shipment:
Delivery Method: Flight case: 4-8 unit display Panels are packaged in one case.
Delivery Time: 20-25 Working Days.
Payment Item: T/T, L/C, West Union.
