LED Video Wall Interior UHD LED Display 1R1G1B SMD0909 High Refresh Rate 1/30 Scan IP40/IP21
LED Video Wall Interior UHD LED Display 1R1G1B SMD0909 High Refresh Rate 1/30 Scan IP40/IP21
Features&Advantages

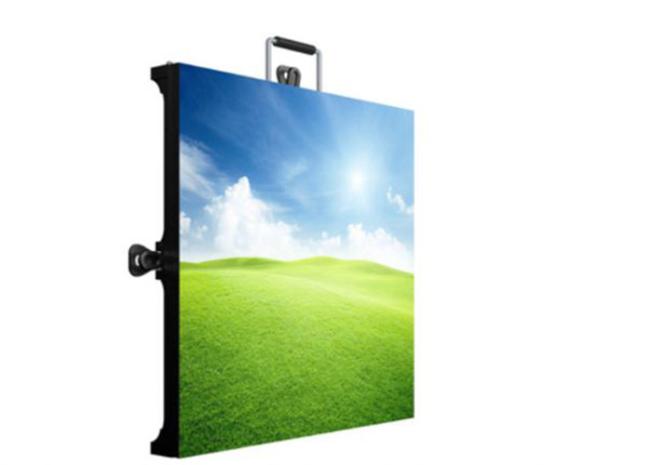

1. It is die-casting aluminum cabinet, with strong and high precision,so it is ultra light-weight which reduce the installation and transport cost.
2. High refresh rate ensure the vivid and clear pictures with high resolution.The excellent uniformity with a good display effect,solve the problem of mosaic well.
3. The surface is very smooth, and vivid videos without ripple and blank, clear images restored accurately which bringing to the audience greatest visual enjoy.
4. Module design makes it convenient to assemble and also ensures that the cabinets are nice-looking.
5. With a wide viewing angle of horizontal and vertical viewing angle up to 140°,bringing you more optional viewing area.
6. It can be played with Video, flash, animation, graphic, text and so on.
7. Optional of Convex Shaped, Concave Shaped and Wave Shaped screens
8. CE,FCC,RoHS,C-Tick approved
9.2 years warranty, best after-sales service
LED Video Wall Specification
| Pixel Pitch | 1.25mm |
| Pixel Density | 640000px/m2 |
| LED Type | SMD0909 |
| LED Configuration | 1R1G1B |
| Cabinet Dimension | 430*430mm |
| Cabinet Resolution | 320*240px |
| Cabinet Weight | 4.6kg |
| Cabinet Material | die-casting |
| Ingress Protection (front/rear) |
IP40/IP21 |
| Brightness | >800nits |
| Viewing Angle(H/V) | 140°/140° |
| Driving Method | 1/30 Scan |
| Power Consumption(avg.) | 220w/m2 |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | ≥ 1500Hz |
| Gray Scale | 16bit |
| Power Supply | AC 110/220±10% 50~60Hz |
| Temperature (operating/storage) |
-20~50°C -40~60°C |
| Humidity(operating/storage) | 10%~90%RH 10%~85%RH |
| MTBF | ≥1000 Hours |
| Life Span | ≥50000 Hours |
| Pixel Failure | <0.0003 |
Images
FAQ
How to Select a Led Display
1. Location-indoor,outdoor or semi-outdoor
Location is the most important factors for selecting the correct LED display.Different type of location such as rooftop,large billboards and stage backdrops or requires front access for servicing will require different led cabinets and modules.
2. Size,Shape and Pitch
Size:Once you have measured the height, width and depth of the space and availability, then you want to make sure the selected LED size (and number of cabinets, height, width & depth) can be accommodated.
Shape:determines if curve or column or flat screens are required.
Pitch:determines the contents of the display and the range of viewing.You need to predict how far away your viewers are from the display screen.
3. LED Facing Direction
Outdoor LEDs facing east or direct west sunlight will require higher lamination than those facing north or south. The larger outdoor billboards and configurations must be equipped with automatic light sensors to automatically adjust brightness in reaction to sunlight and cloud covers.
