Stage / Exhibition Large Video Wall Displays , P1.56 SMD1010 Led Hd Screen
P1.56 Indoor Full Color SMD1010 HD LED Display Video Mall Screen For Stage/Exhibition
Features
1. Through the excellent structure design, guarantee the stable performance when it works in the normal temperature.
2. The module cases with the handle for installation and maintenance,it is more convenient and safe.
3. The mask is do well in dissipate heat and spotlight.It also played an important role in prolonging life.
4. There is almost no gap between the cabinets, and the cabinets is very smooth so that the picture playing is excellent.
5. The pixel pitch of the led display is 1.56 mm which owns a 409600 pixels/m², reaching the effect of High Resolution.
Product Details
| Pixel Pitch | 1.56mm |
| Pixel Density | 409600px/m2 |
| LED Type | SMD1010 |
| LED Configuration | 1R1G1B |
| Cabinet Dimension | 430*430mm |
| Cabinet Resolution | 256*192px |
| Cabinet Weight | 4.6kg |
| Cabinet Material | die-casting |
| Ingress Protection (front/rear) | IP40/IP21 |
| Brightness | >800nits |
| Viewing Angle(H/V) | 140°/140° |
| Driving Method | 1/32Scan |
| Power Consumption(avg.) | 220w/m2 |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | ≥ 1500Hz |
| Gray Scale | 16bit |
| Power Supply | AC 110/220±10% 50~60Hz |
| Temperature (operating/storage) | -20~50°C -40~60°C |
| Humidity(operating/storage) | 10%~90%RH 10%~85%RH |
| MTBF | ≥1000 Hours |
| Life Span | ≥50000 Hours |
| Pixel Failure | <0.0003 |

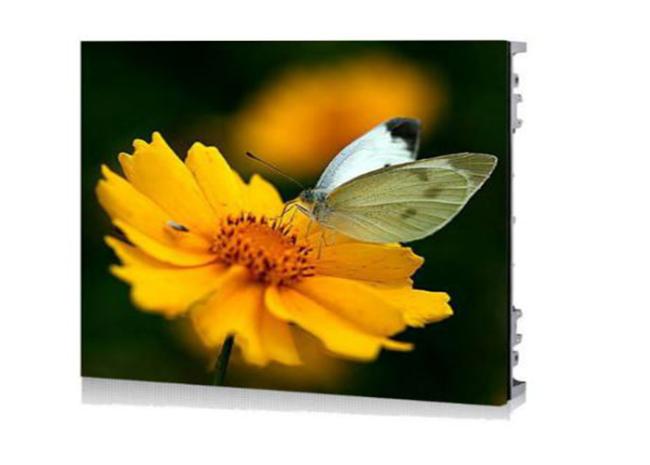

Product Images
Advantages
1. Quick installation and easy maintenance, front or rear maintenance.
2. A high gray of 16 bit and 281 trillion colors match to create a good color uniformity.
3. Lower power consumption and long life span time minimum 50,000 hours.
4. The whole cabinet looks very light and beautiful,good quality.
5. Optional of Convex Shaped, Concave Shaped and Wave Shaped screens
Services
1. Warranty
1) We provide warranty of all components for 2 full years. During this time, we will replace or repair our goods for free if there is something wrong with them.
2) We will provide maintenance for a lifetime and charge for the raw materials only.
2. Technology Training
1) We provide the technology training for free, which contains the installation of software and hardware, as well as the daily operation and troubleshooting of the LED display.
2) We also provide lifetime consultation by E-mail, Skype, WhatsApp or other ways for free.
3. Certification
We provide the operation manual and all kinds of certification such as CE, RoHS EMC UL and so on.
4. Package&Shipment
1) Usually, we will ship within 20-25 working days after the customer place an order, but the actual arrival time is affected by transportation environment and other aspects.
2) In general,our products are packed in wooden boxes and flight case
