IP40/IP21 Protection Indoor Rental LED Display For Stage Show Easy Installation
Light Weight Indoor Rental LED Display with easy installation for satge show
Description:

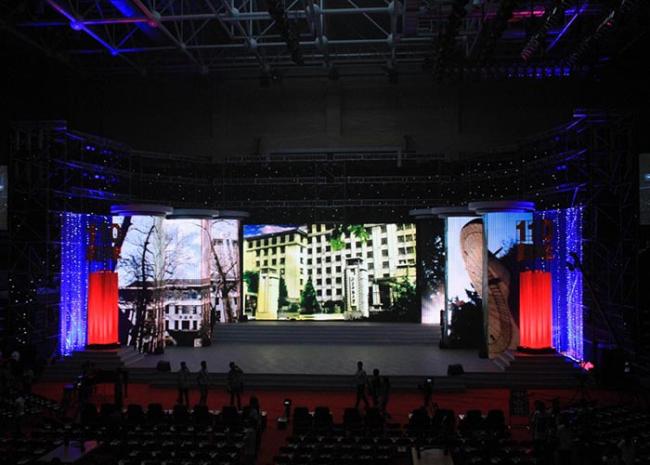

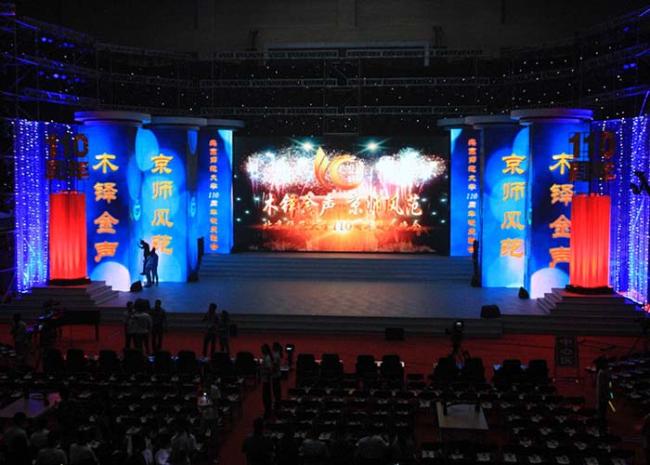

Indoor rental LED display is widely used for stage, concert, show, banquet, wedding, stage
background, public advertising etc.
Features:
1. Ultra-thin thickness: 76mm
2. Light weight: 8 kg per square meter (exclusive of power supply and LED module kit)
3. Excellent heat dissipation
4. Strong hardness and high precision
5. Excellent corrosion and rust resistance
6. Processes: solder paste printing, IC sticking, surface mounting, reflowing soldering
7. Easy installation: Pushing, spinning and fastening only for 10 seconds.
8. Various appearance designs( mold and appearance of box can be modified slightly).
9. Size of tensile aluminum box series of boxes is as follows: 480mmX480mm,512mmX512mm,576mmX576mm
Advantages:
1. Wide application field. Such as stadium, shopping mall, bank, bus station and so on.
2. High Contrast ratio: 4000:1, Which is a very high level to ensure a vivid image of our LED display screen system.
3. First-class LED chip, Supplied by famous brand LED chip to ensure the long lifetime and high brightness of our LED display screen system.
4. Easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system
5. Front and rear cabinet access makes the maintenance become very convenient.
Technical Parameter:
| Model | IRB-3 | IRB-4 | IRB-5 |
| Pixel Pitch | 3mm | 4mm | 5mm |
| Pixel Density | 111110 pixels/m² | 62500 pixels/m² | 40000 pixels/m² |
| LED Type | SMD2121 | SMD2121 | SMD2121 |
| LED Configuration | 1R1G1B | 1R1G1B | 1R1G1B |
| Cabinet Dimension |
576*576mm |
512*512mm |
480*480mm |
| Cabinet Resolution |
192*192px |
128*128px |
96*96px |
| Cabinet Weight | 8kg | 7.5kg | 7kg |
| Cabinet Material | die casting aluminum | die casting aluminum | die casting aluminum |
| Ingress Protection | IP40/IP21 | IP40/IP21 | IP40/IP21 |
| Brightness | >1200nits | >1200nits | >1200nits |
| Viewing Angle | 140°/140° | 140°/140° | 140°/140° |
| Driving Method | 1/16 Scan | 1/16 Scan | 1/12 Scan |
| Frame Refresh | ≥60HZ | ≥60HZ | ≥60HZ |
| Data Refresh Rate | >1500HZ | >1500HZ | >1500HZ |
Services:
1. All products have passed CE, FCC, ROHS certifications. We can provide you high quality products.
2. Any problems you can contact our sales or engineers. we will response you at once.
3. Prochure, manual, video of installation and usage are provide by us for free.
4. OEM & ODM are also available. Customized design for you.
5. Warmly welcome you visit our factory in Shenzhen.
Shipment:
Business term: FOB Shenzhen
Payment term: T/T, usually 30% down payment before production, 70% balance to be paid before delivery, it can also change according to total quantity.
Delivery time: 20~25 days.
Shipping port: Shenzhen, Mainland China
MOQ: LED Screen 1 sqm / LED module1pcs
Guarantee: Two years quality guarantee
