High Brightness P5 Transparent LED Screens Glass Video Wall For Shopping Mall Ads
High Brightness P5 Transparent LED Screens Glass Video Wall For Shopping Mall Ads
P5 Transparent LED Screens Advantages:
High transparency
Over 80% transparency makes the glass retained its perspective lighting performance. LED lamp is invisible from a so remote distance that would have no affected to see the around space near the glass or window video wall.
LED recessed-in design
LED lamps are recessed in the PCB board, on the one hand can protect the LED lamps, on the other hand will help to enhance the stability of LED lamps,prevent the lamps from LED damage.
Attractive and exquisite appearance
Cables hidden in the cabinet makes the whole LED display looks neat and exquisite.
No need for steel frame structure, substantial saving cost
Using special glue, the display will directly paste on the glass video wall, only 10 seconds to curdle, no structural changes required, convenient and efficient.
Easy to maintain
Indoor maintenance, quick and safe,save manpower and material resources.
Saving the building lighting project cost
Installing the glass LED display in the building can help not only saving a large part of the lighting lamps of external walls to save cost, but also making advertising income because of the more attraction of the transparent LED display.
Energy conservation and environment protection
There is no need for conventional cooling systems and air-conditioning for transparent LED screens.
Easy to operate
Widely applications
Building exterior wall, landmark building,window glass wall, headquarters building, shopping mall, airport, hotel lobby, pedestrian street, brand shop, store counter shop window, car 4s shop, bank, municipal public building, chain shop,etc.
Smart control/Simple
Smart: Screen controlled by APP
Simple: Plug & Play
Wider viewing angle/Excellent color reproduction degree
Wider viewing angle: 160°
Excellent color reproduction degree
2 years warranty/Energy efficient
Screen warranty: 2 years
Energy efficient: average power consumption is 200W/sqm
P5 Transparent LED Screens Specification:
| BG-5-8 | |
| Physical Pitch | 5x8mm |
| Pixel Configuration | SMD1921 |
| Pixel Density | 25000pixels/m² |
| Module Dimensions (WxH)(mm) | 480x320 |
| Panel Dimensions (WxH)(mm) | 960x640 |
| NO. of Modules Per Panel(WxH) | 2x2 |
| Physical Resolution of Module(WxH) | 96x40 |
| Physical Resolution of Panel(WxH) | 192x80 |
| Panel Material | Aluminum |
| Single Cabinet Weight | <14kg/m² |
| Gray Scale | 16bit |
| Colours | 281 trillion |
| Contrast Ratio | 2000:01:00 |
| Average Power Consumption | 203W/m² |
| Max. Power Consumption | 670W/m² |
| Operating Temp/Humidity | -10ºC-60ºC/ 10%-60% |
| Storage Temp/Humidity | -30ºC-60ºC/ 10%-60% |
| Refresh Rate | >1920Hz |
| Brightness | >5500 nits |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 140° |
| Expected Lifetime | 100,000Hrs |
| IP Rating(Front/Rear) | IP30 |
| Servicing | Rear |
| Scan Method | 1/6 Scan |

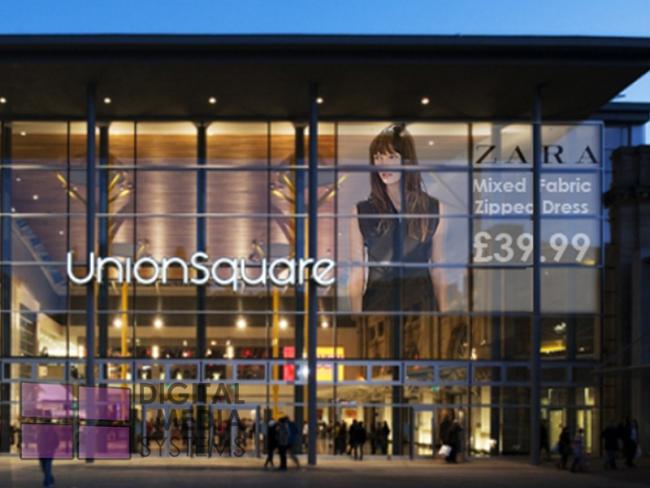

Cases:
