6500 Nits Sports Perimeter Led Display Board with Meanwell Power supply
6500 Nits Sports Perimeter Led Display Board with Meanwell Power supply
Sports Perimeter Led Display Features:
1. High Refresh Rate, No Blinking When Live Show Switch
The refresh rate is more than 3840HZ, under the professional camera and video camera shooting, there is no smear scintillation on the screen, the whole screen is stable, successfully solved the problem of gray scale loss under high refresh rate, guarantees HD and exquisite display, fully fulfill the meet the need of flicker-free when live show.
2. Independent Supporting Beams With Adjustable Angel
Adjustable back supporting beam, customers can adjust the view angel very freely to achieve the best view effect.
3. To Protect the Players Being Injured
Unique soft mask and support soft proctor, very good shock buffering to protect the player being hurt even collision.
4. Easy Installation & Using: Easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system
5. Convenient Servicing: Front and rear cabinet access make the maintance work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.
Company Information
Why choose BAKOVISION?
1. more than 10 years experience in led display industry, we have most talented engineers to design best products for our clients;
2. "Customer first" is our belief. We promise to offer best products with good service for our clients;
3. Top quality machines to make top quality products;
4. Strict processing procedures makes perfect product. Every production procedure, we have QC to check the quality;
5. Most competitive price make our led displays are afordable;
6. Normally 2 years warranty, even we can offer 3 years warranty if our clients need;
7. For key business partners, we can offer financial credit;
Sports Perimeter Led Display Specs
| Pixel pitch | 10mm |
| Size of module | 160mm x 160mm |
| Resolution of module | 16x16 |
| Size of cabinet | 960mm x 960mm x 200mm |
| Resolution of cabinet | 96x96dots |
| Number of Cabinets | 53 pcs |
| Weight of Cabinet | <80KGS |
| Brightness | >7500cd/sq.m |
| Density | 10000dots/sq.m |
| Best viewing angle | 110 /50 |
| Pixel Configuration | 1R1G1B |
| Best viewing distance | 8-150M |
| Maximum power consumption | <800W/sq.m |
| Driving method | 1/4 scan |
| Control method | Synchronization |
| Gray scale | 16 bits |
| Colors | 16777216 |
| Color temperature | 6500k |
| Working voltage | AC220V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| MTBF | >10,000 hours |
| Frame frequence | ≥60Hz |
| Refresh frequence | >1800Hz |
| IP grade(Front/Back) | IP65/IP54 |
| Life Span | 100,000 hours |
| Data transafer method | RJ45 |
| Effectivce Communication | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; |
| Distance(without relay) | Single-mode optic fiber: 10KM |
| Systems operating platform | WINDOWS(WIN95,WIN2000,WINXP,WIN7/8), and interfaces for secondary development |

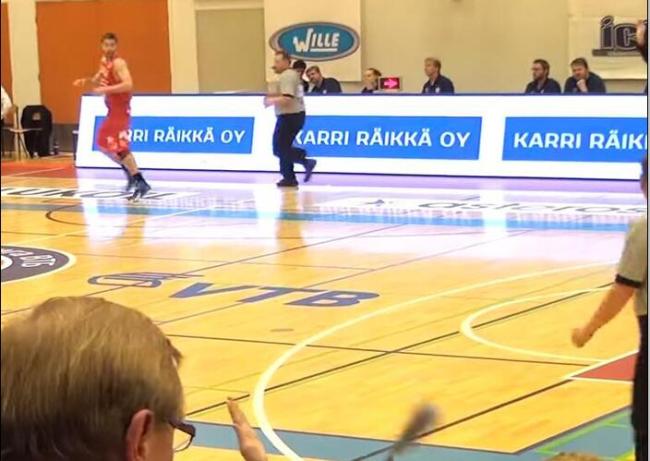

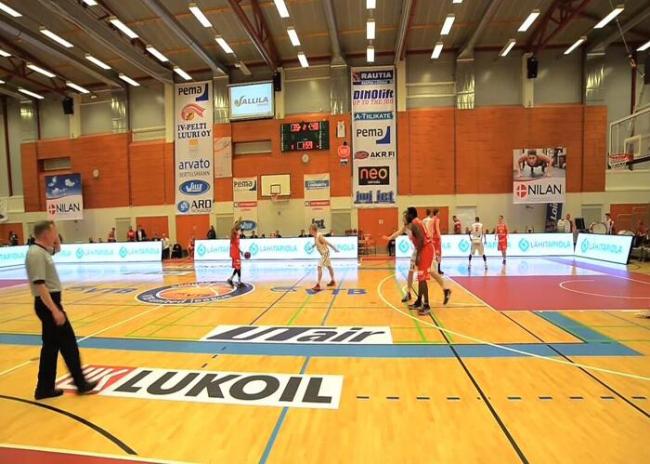

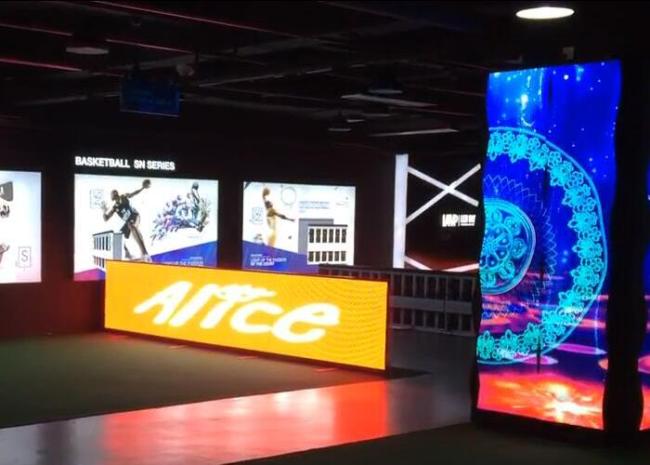

Sports Perimeter Led Display Applications:
