P1.25 Large Event Led Wall , Indoor Led Video Walls 140° Viewing Angle IP40/IP21
P1.25 FULL Color Indoor Fixed HD LED Display Video Wall Screen Panel for Events

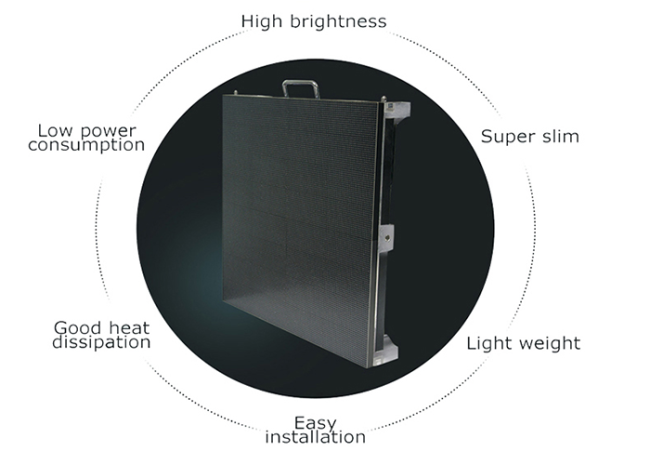

Features&Advantages
1. The Ultra High Resolution P1.25mm indoor screen,which have a fine pixel pitch for clear image.
2. The modular design offers size scalability and complete color blended images at a very short range. These panels can be flexible combination and turned into larger screens as per your needs.
3. The refresh rate is higher than 1500Hz, guarantee that the audience will not have a flickering picture during the viewing period.
4. Appropriate brightness to help the audience comfortably view the visuals.
5. The flatness of led panel surface is greatly improved by its CNC+Die Casting molding process (precision up to 0.05mm), thus it ensures the full screen’s seamless and precise installation.
6. The weight of full panel is only 6.5KG, can be easily hanging up by one person
7. Adopting quick locking mechanism. You can install one cabinet with high accuracy quickly,include cabinet splicing and wiring connection.
8. It has a excellent heat dissipation performance due to it is low noise and none fans.
9. Those cabinets also features lightweight and low power consumption.Effective cost savings.
10. It can maintain one pixel and single panel.
11. We have rigorously test every raw material and every production steps to ensure our product quality.
Product Details
| Model | IU-1.2 |
| Pixel Pitch | 1.25mm |
| Pixel Density | 640000 px/m2 |
| LED Type | SMD0909 |
| LED Configuration | 1R1G1B |
| Cabinet Dimension | 400*300mm |
| Cabinet Resolution | 320*240px |
| Cabinet Weight | 4.6kg |
| Cabinet Material | die-casting |
| Ingress Protection (front/rear) |
IP40/IP21 |
| Brightness | >800nits |
| Viewing Angle(H/V) | 140°/140° |
| Driving Method | 1/30 Scan |
| Power Consumption(avg.) | 220w/m2 |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | ≥ 1500Hz |
| Gray Scale | 16bit |
| Power Supply |
AC 110/220±10% |
| Temperature (operating/storage) |
-20~50°C |
| Humidity(operating/storage) | 10%~90%RH 10%~85%RH |
| MTBF | ≥1000 Hours |
| Life Span | ≥50000 Hours |
| Pixel Failure | <0.0003 |

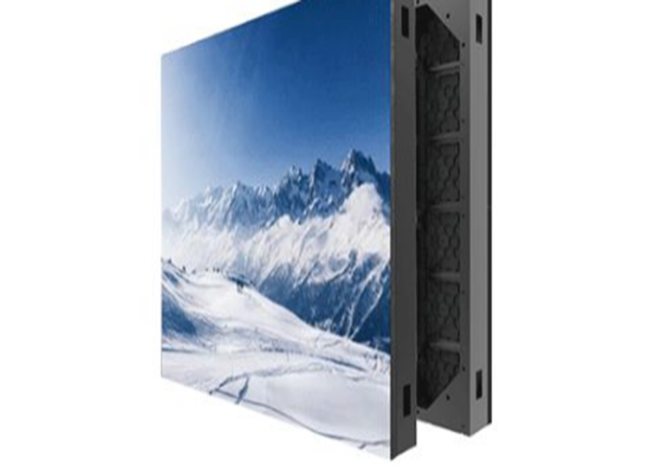

Product images
FAQ
Q1: May I know the pixel pitch of this display?
A1: Yes,it is indoor led display for pixel pitch of 5mm
Q2: How's the applications?
A2: Indoor & fixed use. Widely used for meeting room, monitoring center, indoor activities, etc.
Q3: Can it play HD video?
A3: Yes, it can realize HD video function with Novastar controlling system.
Q4: How about the size of project?
A4: Please offer the size with "width by height" of project. We wil offer the suitable solution for your project size.
