LED Video Display LED Display P1.56 For Shows / Shopping Malls Vivid Mixed Colors
LED Video Display LED Display P1.56 For Shows / Shopping Malls Vivid Mixed Colors
LED Video Wall Specification
* Optional of Convex Shaped, Concave Shaped and Wave Shaped screens
* Application: Indoor/Fixed
* Ultra high-definition.
* Excellent thermal management
* Quick lock system allowing fast rigging
* Extremely close view distances and view angles
* Clear and exquisite
* Good flatness
* Vivid mixed colors
* Convenient use
* High stability
* Lightweight and seamless
* Long life span
* Low consumption
* Easy to assembly, install and transport
* Shorter MTBF
* Lightweight and seamless
* Front service&Rear service
Product Details
| Pixel Pitch | 1.56mm |
| Pixel Density | 409802 px/m2 |
| LED Type | SMD1010 |
| LED Configuration | 1R1G1B |
| Module Dimension | 150*168mm |
| Cabinet Dimension | 600*1012mm |
| Cabinet Resolution | 384*648px |
| Cabinet Weight | 22kg |
| Cabinet Material | die-casting |
| Cabinet thickness | 77.8mm |
| Ingress Protection (front/rear) |
IP43 |
| Brightness | 600-800nits |
| Viewing Angle(H/V) | 160°/140° |
| Power Consumption(avg.) | 300w/m2 |
| Power Consumption(max.) | 600w/m2 |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | ≥ 2880Hz |
| Gray Scale | 14-16bit |
| Power Supply | AC 110/220±10% 50~60Hz |
| Temperature (operating/storage) |
-10°~40° |
| Humidity(operating/storage) | 10%~90%RH 10%~85%RH |
| MTBF | ≥1000 Hours |
| Life Span | ≥50000 Hours |
| Pixel Failure | <0.0003 |

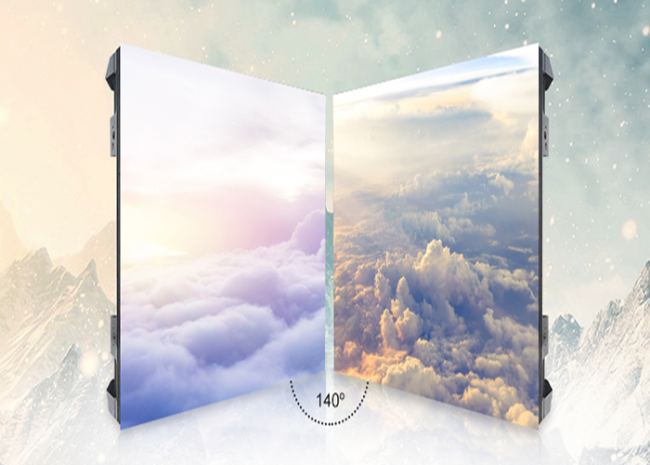

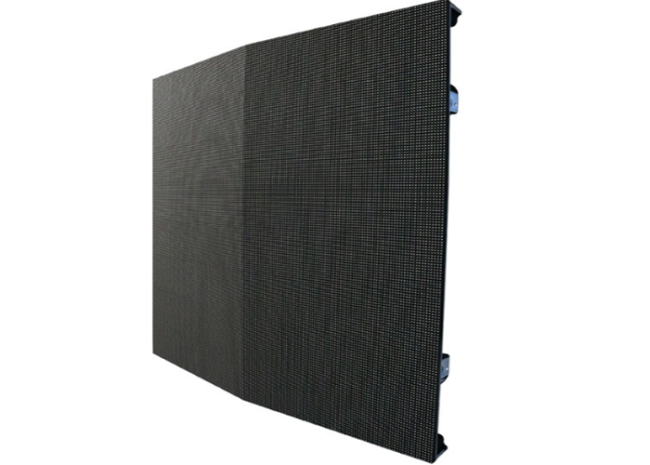

Product Images
Services
* Warranty
1) We provide warranty of all components for 2 full years. During this time, we will replace or repair our goods for free if there is something wrong with them.
2) We will provide maintenance for a lifetime and charge for the raw materials only.
* Technology Training
1) We provide the technology training for free, which contains the installation of software and hardware, as well as the daily operation and troubleshooting of the LED display.
2)We also provide lifetime consultation by E-mail, Skype, WhatsApp or other ways for free.
* Certification
We provide the operation manual and all kinds of certification such as CE, RoHS EMC UL and so on.
Tips
* Package: Wooden package, Flight case.
* Payment: T/T, 30% deposits, 70% balance before delivery
* Shipping port: Shenzhen
* Warranty time: 2years
* Delivery time:20-25 working days
