High Gray Scale Stadium Led Screens , IP65 Football Stadium Advertising Boards
High Gray Scale Sports Perimeter LED Display High Brightness IP65 Waterproof for Football Field

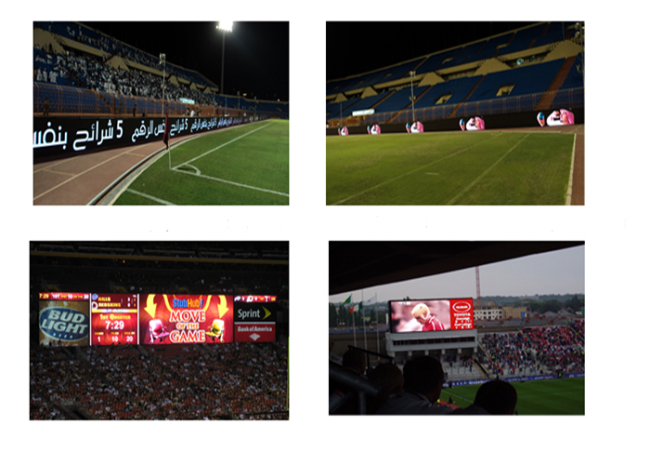

Ultimate, Outdoor, Sports Display
FIFA Stadium Standard
Broad Viewing Angle
Fast to Install and Dismantle
High Refresh Rate for Live Camera
Outdoor Rated
IP65 rating for front and rear
Suitable brightness adjustable for outdoor day and night
5500-8000 CD brightness
Fast Installation and Easy Maintenance
Fast lock system design guarantees a quick and easy installation
Front and rear accessible
Fast access to modules, cables, power and data boxes
Supreme Electrical Features
Vivid and brilliant colors
16 Bit signal processing, 2500-4000Hz refresh rate
Built-in data and power redundancy for ultimate reliability
Versatile Dual Purpose Design
Removing the ground adjustable bracket and protection foam bumper can be transformed to be a square solid screen
Available for truss hanging, ground stacking, wall mounting
Specifications:
| BSP-8 | |
| Physical Pitch | 8mm |
| Pixel Configuration | SMD3535 |
| Pixel Density | 15625 pixels/m² |
| Module Dimensions (W× H) (mm) | 256*256 |
| Panel Dimensions (mm) | 1280*768*187 |
| NO .of Modules Per Panel (W × H) | 5*3 |
| Physical Resolution of Module ( W× H) | 32*32 |
| Panel Material | Steel/Aluminum |
| Weight | 70kg/unit |
| Processing | 16bit |
| Colour Number | 281trillion |
| Contrast Ratio | 2000:1 |
| Average Power Consumption | 360W/panel |
| Max Power Consumption | 900W/panel |
| Operating Temperature | -20~60℃ |
| Refresh Rate | 1920Hz |
| Brightness | ＞6500nits |
| Horizontal Viewing Angle | 140° |
| Vertical Viewing angle | 140° |
| Expected Lifetime | 100,000hours |
| Servicing | Front/Rear |
| IP Rating (Front/Rear) | IP65/IP54 |
Description:
Humanization Design
With special soft screen mask and cabinet cover, it can protect the players from being hurt during the match.

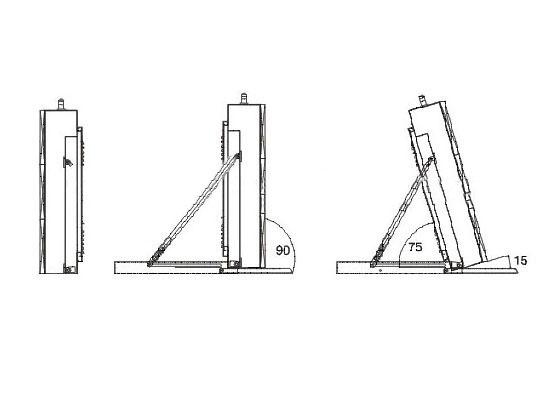

Independent Ground Support Structure, More Stable than You Think
The angle of the ground support structure can be adjusted as you need, to suit the best viewing angle for audience and cameras.
Three-high Design and Excellent Visual Effect for Live Video
High refresh rate up to 4800Hz, no scanning line and color patch by HD camera;
High gray scale up to 16 bit, making the image vivid and sharp;
High brightness up to 6500 nits, making the image clear enough even in the sun directly.
High IP Rating Suited for Outdoor Use
It can both be used indoors and outdoors, as it is equipped with the latest outdoor SMD and DIP technology. And thanks to its full IP65 rating - it is completely waterproof.
High Standard Aviation Connector
The professional aviation connectors enable multiple plug and unplug, and it’s full waterproof. It ensures the stable and reliable of the screen especially in some important occasions.
