IP65/IP54 10mm Led Display Heat - Sinking , P10 Outdoor Full Color Led Display

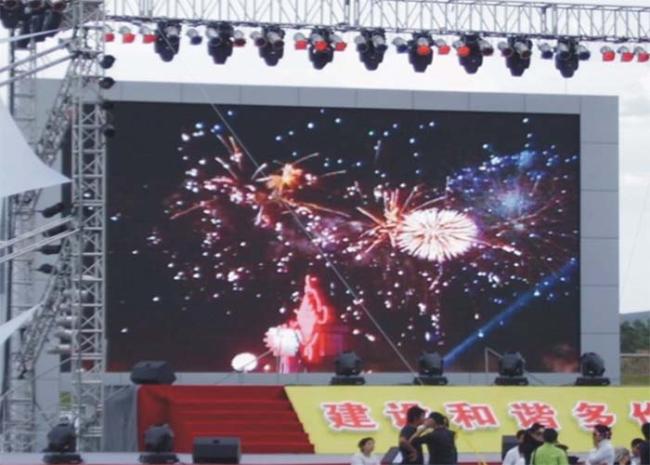

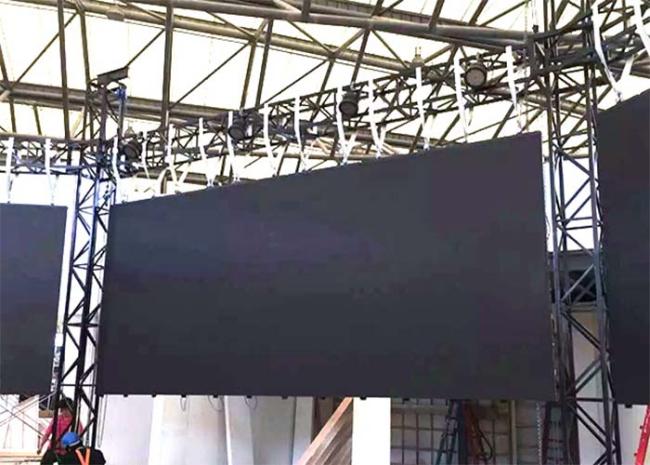

Outdoor Stage Rental LED Display Long Life Span and Wide Viewing Angle Heat-sinking
Key Specifications/Special Features:
- High resolution
- High brightness
- Good cooling and easy to installation
- Strong R&D strength, 50,000 square meters standard workshop
- Certifications: RoHS Directive, CCC, CE and ISO 9001:2008
- LED display production capacity per day: 10,000 m²/month
- Best viewing distance: 8-80 meters
- Customized orders are accepted
1. Video processor with multiple signal channels, satisfying the switch of different perspectives from live broadcast, advertising image and on-scene interview
2. Splicer a kind of high and new equipment dividing complete image into several blocks to achieve large dynamic screen with multiple ordinary video units
3. Remote circuit control system to open and close the circuit at fixed time within distance and to detect fault circuit
4. Top best applied to full color LED outdoor display P4, P5, P6, P8, P10 SMD LED display module for remote real-time digital video transmission system
Specification
| Model | ORB-10 |
| Pixel Pitch | 10mm |
| Pixel Density | 10000 pixels/m2 |
| LED Type | SMD3535 |
| LED Configuration | 1R1G1B |
| Cabinet Dimension | 640mmx640mm |
| Cabinet Resolution | 64*64pixels |
| Cabinet Weight | 13kg |
| Cabinet Material | die casting aluminum |
| Ingress Protection(front/rear) | IP65/IP54 |
| Brightness | >6500nits |
| Viewing Angle(H/V) | 140°/140° |
| Driving Method | 1/4 Scan |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | >1500Hz |
| Gray Scale | 16bit |
| Power Consumption(avg.) | 200w/m2 |
| Input Voltage | AC 110/220±10%, 50~60Hz |
| Temperature(operating/storage) | -20~50°C / -40~60°C |
| Humidity(operating/storage) | 10%~90%RH / 10%~85%RH |
| MTBF | ≥1000hrs |
| Life Span | ≥100000hrs |
| Pixel Failure | <0.0003 |
Service:
1).Your inquiries related to our products or prices will be replied in 24H
2).Well-trained and experienced staffs to answer all your inquires in fluent English
3).Customized design is available, OEM and ODM are welcome
4).Protection of your sales area, ideas of design and all your private information
