P5.95 Outdoor Billboard LED Display For Advertising Fixed High Contrast Ratio
P5.95 Outdoor Billboard LED Display, Fixed High Contrast Ratio for Advertising
Description
Ultra Lightweight and Slim, Outdoor Rental Display
Die Casting, Outdoor Rated
Cabinet 500mmx500mm or 500mmx1000mm High Definition Indoor Display
Hot Swapping, Cable free between modules
Unsurpassed Color Uniformity
Unique color calibration process
Tight bin selection for LED wavelength Deep black levels, contrast ratio 4000:1
Fast Installation and Easy Maintenance
Truss hanging and ground support both available
Cable-less between modules
Hot swapping modules, cable-less between modules
Cabinet 500mmx500mm or 500mmx1000mm
Slim, Light Weight and Quiet
7.3kg per cabinet, 72.5mm thickness 35% lighter than normal outdoor displays
500mmx500mm and 500mmx1000mm are compatible
All Weather Conditions Protection
Outdoor rated, IP65 front and back
High brightness adjustable according to environment changes

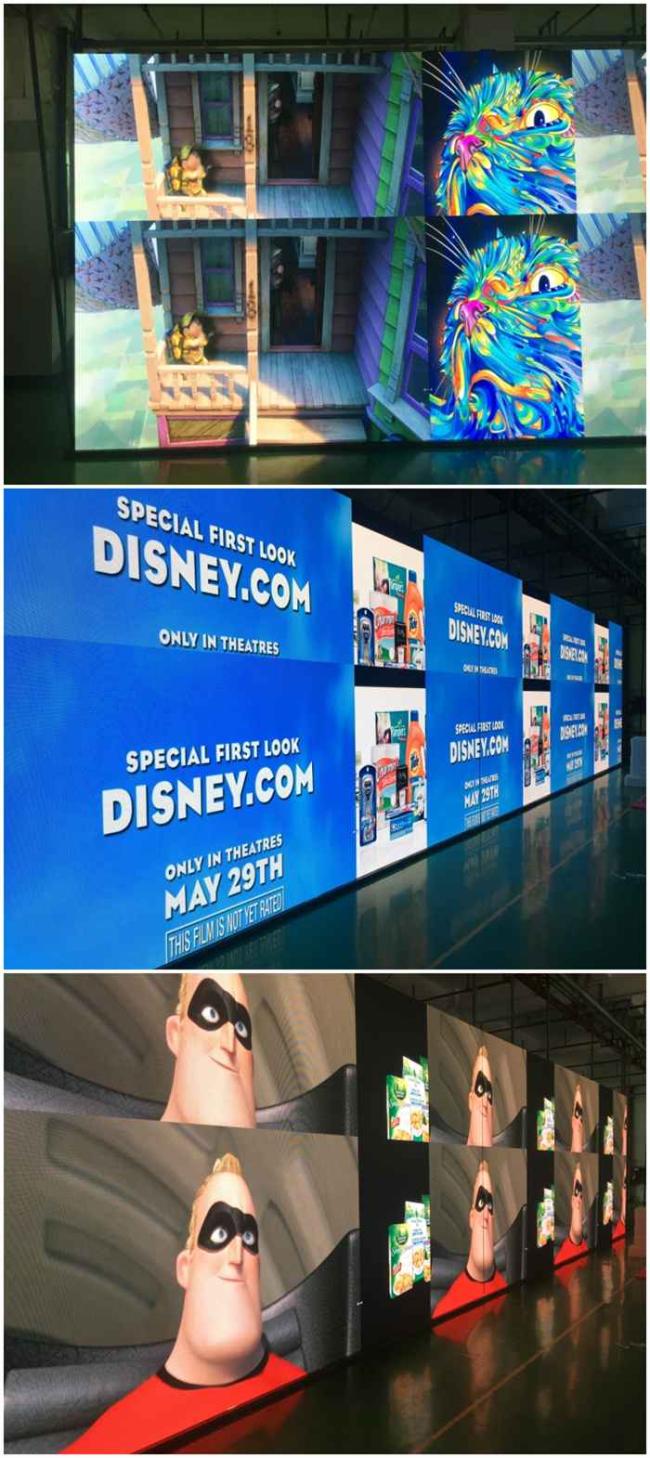

Applications
| Physical Pitch | 5.95 mm |
| Pixel Configuration | SMD2525 |
| Pixel Density | 28,224 pixels/m² 7,095 / 14,190 pixels/panel |
| Module Dimensions (W × H)(mm) | 250 × 250 /250 × 500 |
| Panel Dimensions (mm) | 500 × 500 × 80 / 500 × 1000 ×80 |
| NO .of Modules Per Panel (W × H) | 2 × 2 |
| Physical Resolution of Module (W × H) | 42 × 42 / 42 × 84 |
| Physical Resolution of Panel (W × H) | 84 × 84 / 84 × 168 |
| Panel Material | Die-casting aluminum |
| Single Cabinet Weight | 7.8 / 16 kg/panel |
| Processing | 14 -16 bit |
| Colours | 281 trillion |
| Contrast Ratio | 4000 : 1 |
| Average Power Consumption | 75 / 100-165 w/panel |
| Max Power Consumption | 185 / 330 w/panel |
| Operating Temp/Humidity | -20℃ - 60℃ / 10% - 60% |
| Storage Temp/humidity | -30℃ - 60℃ / 10% - 60% |
| Refresh Rate | ≥1920Hz |
| Brightness | ≤4500nits |
| Horizontal Viewing Angle | 140° |
| Vertical Viewing angle | 140° |
| Expected Lifetime | 100, 000 hours |
| Max Stacking | 20 |
| Max Hanging | 18 |
| Servicing | Front / Rear |
| IP Rating (Front/Rear) | IP 65/IP 54 |
| Certification | CCC, CE, ETL, FCC |
