Front / Rear Servicing Outdoor Electronic Signage Boards SMD 2727 P6.25
P6.25 Outdoor Billboard LED Display, Front / Rear Servicing High Brightness LED Screen
Description
One person can do installation and disassembly
Handle design on top enable fast and convenient
Installation and disassembly, one person is one working group
Fast Assembly
Adopting quick buckle system and horizontal positioning device for fast and accurate assembling
Friendly Maintenance
Handle design,easy and rear access for maintenance
Modular design,hot-swapping,simple wiring

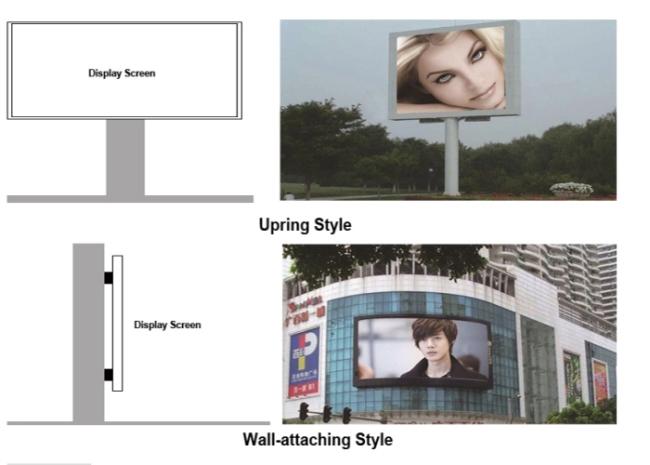

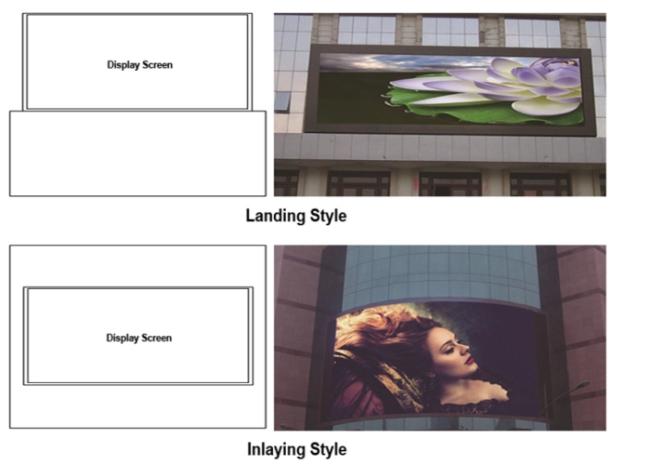

Hang Type

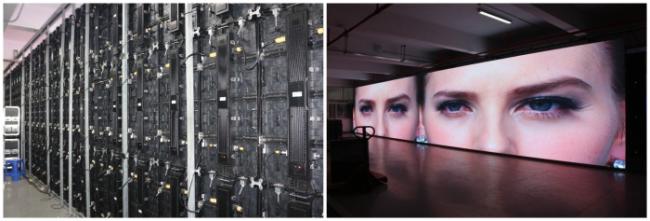

Aging Test
Application
Q1: When is the delivery time?
A1: we will accomplish manufacturing within 20-25 days after receiving the deposit(Exclude time of weekend). If you need urgent, please kindly let me know, in guaranteed of quality. we will try our best to make faster.
Q2: What's the Payment terms?
A2: 30% deposit to start production, and 70% balance to be clear before delivery.
Q3: what is the Delivery guarantee?
A3: Guarantee time: 2 years. Within 2 years, if any part failed, we send new parts or repair for free, we will undertake shipping cost from your city to China and from China to your city. After 2 years, we only charge cost price for parts and repairs, and you need to pay shipping cost go and back.
Q4: What's the controlling system?
A4: Control system could be Linsn, Nova-star, Color light...Usually client use Linsn for fixed installation led screens, and Nova-star system
| Physical Pitch | 6.25 mm |
| Pixel Configuration | SMD2727 |
| Pixel Density | 25,600 pixels/m² 6,400 / 12,800 pixels/panel |
| Module Dimensions (W × H)(mm) | 250 × 250 /250 × 500 |
| Panel Dimensions (mm) | 500 × 500 × 80 / 500 × 1000 ×80 |
| NO .of Modules Per Panel (W × H) | 2 × 2 |
| Physical Resolution of Module (W × H) | 40 × 40 / 40 × 80 |
| Physical Resolution of Panel (W × H) | 80 × 80 / 80 × 160 |
| Panel Material | Die-casting aluminum |
| Single Cabinet Weight | 7.8 / 16 kg/panel |
| Processing | 14 - 16 bit |
| Colours | 281 trillion |
| Contrast Ratio | 4000 : 1 |
| Average Power Consumption | 75 / 100-165 w/panel |
| Max Power Consumption | 185 / 330 w/panel |
| Operating Temp/Humidity | -20℃ - 60℃ / 10% - 60% |
| Storage Temp/huminity | -30℃ - 60℃ / 10% - 60% |
| Refresh Rate | ≥1920Hz |
| Brightness | ≤5500nits |
| Horizontal Viewing Angle | 140° |
| Vertical Viewing angle | 140° |
| Expected Lifetime | 100, 000 hours |
| Max Stacking | 20 |
| Max Hanging | 18 |
| Servicing | Front / Rear |
| IP Rating (Front/Rear) | IP 65/IP 54 |
| Certification | CCC, CE, ETL, FCC |
