IP65 Waterproof 20mm Led Display , Static Driving Led Outdoor Advertising Screens
P20mm Billboard LED Display,Static Driving IP65 Low Power Consumption LED Video Wall
Product Features:
We strive to offer rugged, IP65 -67 LED displays that you can rely on in adverse weather conditions and climates that allow you to reach your audience with ease. We understand that no two video display needs are alike, and can help your outdoor display no matter the size or shape become a reality. We have extensive experience working with all types of clients from initial vision to finished install. We work with your team to seamlessly add LED Video Displays into your vision.
RUGGED, RELIABLE PRODUCTS
Our outdoor LED displays are designed and tested to withstand whatever mother nature decides to toss its way. The product line offers weatherproof DIP configurations that can compete with direct sunlight and withstand rain, wind, and dirt giving you a product you know you can rely on 365 days a year.
INTEGRATION
Anyone can put a large outdoor LED screen on the side of a building, but much more goes into adding LED Display technology into your design concept. Each client gets a dedicated project manager to help make sure your vision is seamlessly integrated both before, during, and after installation to ensure no surprises throughout the process.
CUSTOMIZATION
Our goal is to help your vision become a reality. We understand that you should be limited by product, and our product line is designed to help create any size and configuration you choose to complete your vision.

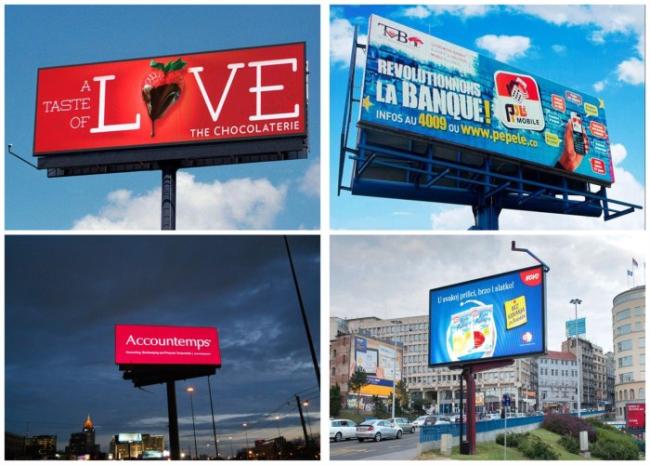

Show Case

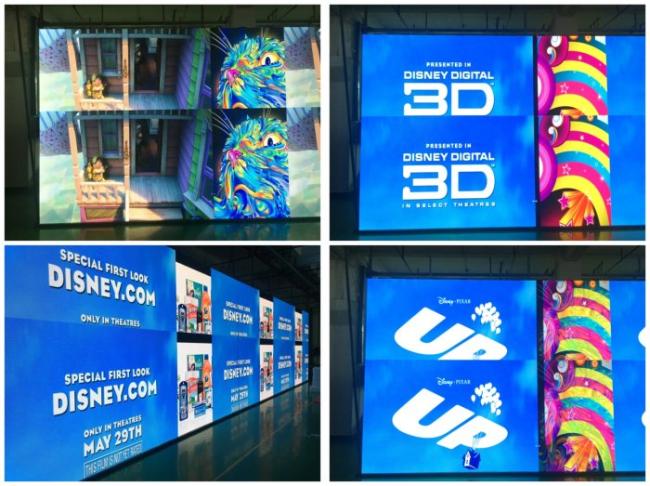

Aging Test
| Model | ODC-20 |
| Pixel Pitch | 20mm |
| Pixel Density | 2500 px/m2 |
| LED Type | DIP346 |
| LED Configuration | 1R1G1B |
| Cabinet Dimension | 1000*320mm |
| Cabinet Resolution | 50*16px |
| Cabinet Weight | 6kg |
| Cabinet Material | aluminum |
| Ingress Protection(front/rear) | IP65/IP54 |
| Brightness | >6500nits |
| Viewing Angle(H/V) | 110°/70° |
| Driving Method | Static driving |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | >1500Hz |
| Gray Scale | 16bit |
| Power Consumption(avg.) | 250w/m2 |
| Input Voltage |
AC110/220±10%, 50~60Hz |
| Temperature(operating/storage) |
-20~50°C / -40~60°C |
| Humidity(operating/storage) | 10%~90%RH / 10%~85%RH |
| MTBF | ≥1000hrs |
| Life Span | ≥100000hrs |
| Pixel Failure | <0.0003 |
