Curved P7.8 Transparent Led Screens for Media Facade with 5500 Nits Brightness
Price:
Negotiable
MOQ:
1sqm
Delivery Time:
20days
Brand:
BAKO VISION
Product Description
Curved P7.8 Transparent Led Screens for Media Facade with 5500 Nits Brightness
P7.8 Transparent Led Screens Features:
1. Light weight: about 9kg/sqm;
2. Tailored curved cabinet available;
3. Easy installation;
4. Transparency rate: 75%
P7.8 Transparent Led Screens Specs
| BG-3.9-7.8 | |
| Physical Pitch | 3.9x7.8mm |
| Pixel Configuration | SMD1921 |
| Pixel Density | 32256pixels/m² |
| Module Dimensions (WxH)(mm) | 500x125 |
| Panel Dimensions (WxH)(mm) | 1000x500 |
| NO. of Modules Per Panel(WxH) | 2x4 |
| Physical Resolution of Module(WxH) | 128x16 |
| Physical Resolution of Panel(WxH) | 256x64 |
| Panel Material | Aluminum |
| Single Cabinet Weight | <14kg/m² |
| Gray Scale | 16bit |
| Colours | 281 trillion |
| Contrast Ratio | 2000:01:00 |
| Average Power Consumption | 180W/m² |
| Max. Power Consumption | 560W/m² |
| Operating Temp/Humidity | -10ºC-60ºC/ 10%-60% |
| Storage Temp/Humidity | -30ºC-60ºC/ 10%-60% |
| Refresh Rate | >1920Hz |
| Brightness | 1000~4200 nits |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 140° |
| Expected Lifetime | 100,000Hrs |
| IP Rating(Front/Rear) | IP30 |
| Servicing | Rear |
| Scan Method | 1/7 Scan |

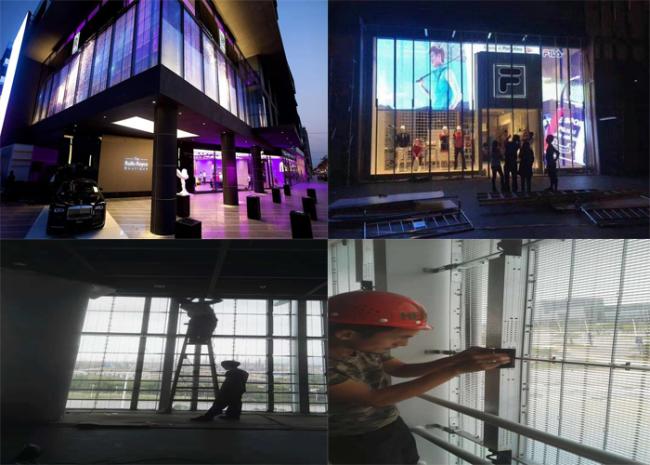

Cases
