16 Bit Gray Scale Led Video Panel Rental With Slim Lightweight Aluminum Cabinet
Indoor Rental LED Display With Slim and Lightweight Aluminum Cabinet
Features
1. Lightweight cabinet,convenient for transporting and installing,which saving labor cost.
2. Simple cabinet structure and smooth surface,own a nice appearance and structures.
3. Quick locking system, being installed & dismounted by one person without tool.
4. The back of the cabinet displays the indication of the operating status of the temperature and voltage.
5. High gray scale, achieving the debugging technology for nice image.
6.Module standardized design, optional of 500*500mm or 500*1000mm cabinet size.
7.Optional of pixel pitch of 2.6/2.97/3.91/4.81 mm
Parameters
| Model | BIR - II-2X |
| Pixel Pitch | 2.6 mm |
| Pixel Density | 147,456 px/m² |
| LED Type | SMD2121 |
| LED Configuration | 1R1G1B |
| Module Dimension | 250*250 |
| Cabinet Dimension | 500*500/500*1000 |
| Cabinet Resolution | 192*192/192*184 |
| Cabinet Weight | 8/14kg/panel |
| Cabinet Material | die-casting |
| Ingress Protection(front/rear) | IP40/IP21 |
| Brightness | >1200nits |
| Contrast ratio | 4000:1 |
| Processing | 14-16bit |
| Colours | 281 trillion |
| Viewing Angle(H/V) | 160°/140° |
| Power Consumption(avg.) | 64/128 w/m² |
| Power Consumption(max.) | 192*384 w/m² |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | ≥ 1920Hz |
| Power Supply | AC 110/220±10%50~60Hz |
| Temperature(operating/storage) | -10~60°C/-30~60°C |
| Humidity(operating/storage) | 10%~90%RH/10%~85%RH |
| MTBF | ≥1000 Hours |
| Life Span | 100,000 Hours |
| Service | Front/Rear |
| IP rate | IP40 |
| Certificate | CCC,CE,ETC,FCC |

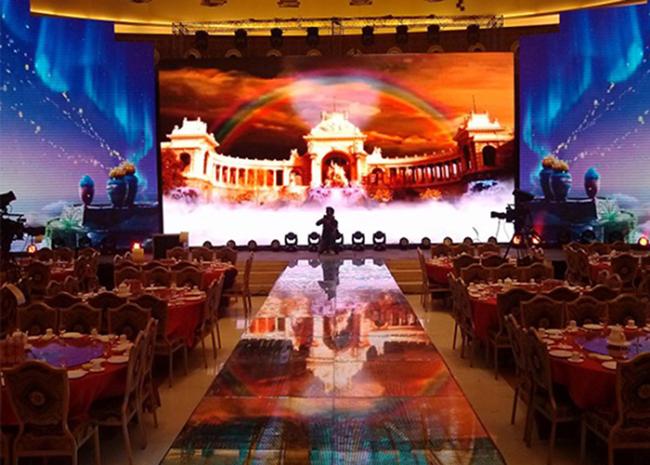

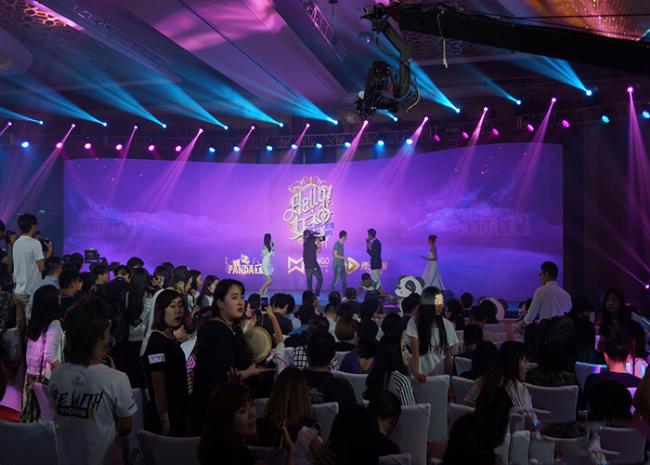

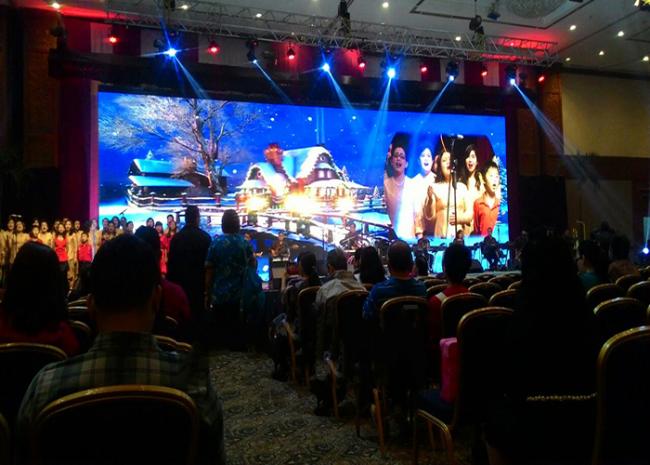

Case Shows
Service
1. We offer 24 hours online & offline service, any questions you can contact me at once.
2. We guarantee our products with good quality and best after sale service.
3. We have our own R&D and design teams, offering professional solutions for your projects, OEM & ODM is also available.
4. Our target: High Quality, Competitive Price, Professional service,
Shipment
Delivery Method: Flight case: 4-8 unit display Panels are packaged in one case.
Delivery Time: 20-25 Working Days.
Payment Item: T/T, L/C, West Union.
