Indoor Rental LED Display Video Wall 16 Bits Gray Scale P2.66mm High Brightness Car Show for Big Event Show
Indoor Rental LED Display Video Wall 16 Bits Gray Scale P2.66mm High Brightness Car Show for Big Event Show
BIR-II Serise
Ultra Lightweight
Indoor Rental Display
Indoor Rental LED Display Feature
Unsurpassed Color Uniformity
→ Unique color calibration process
→ Tight bin selection for LED wavelength
→ Deep black levels,contrast ratio 4000:1
Fast Installation and Easy Maintenance
→ Truss hanging and ground support both available
→ Cable-less between modules

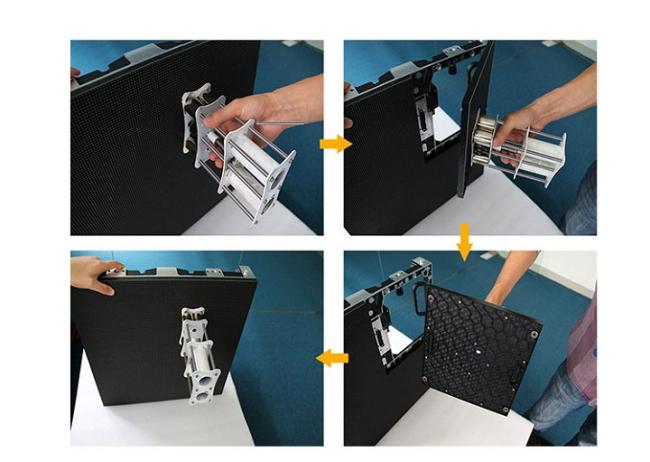

→ Magnetic modules, front access
→ Cabinet 500mm×500mm or 500mm×1000mm
Slim,Light Weight and Quiet
→ 8kg per cabinet
→ 75mm thickness
→ 22% lighter than normal displays
→ fanless design

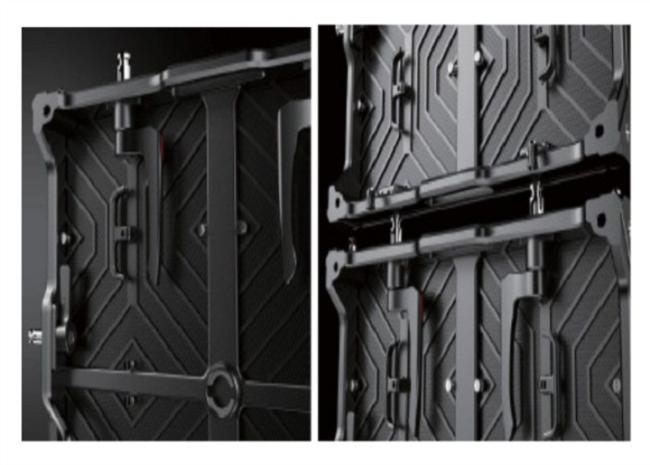

Precise Positioning, Accurate Assembling

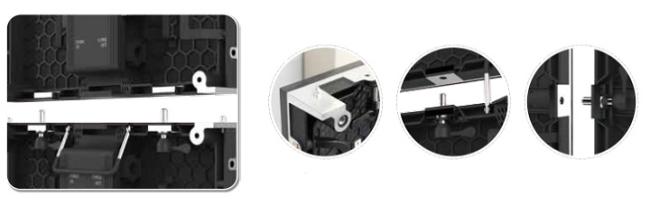

→ Positioning pin accurate connection vertically
→ Special fast lock design allows seamless assembling
Indoor Rental LED Screen Specification
| BIR-II-2x | BIR-II-2 | BIR-II-3 | BIR-II-4 | |
| Physical Pitch | 2.6mm | 2.97 mm | 3.91 mm | 4.81 mm |
| Pixel Configuration | SMD 2121 | SMD 2121 | SMD 2121 | SMD 2121 |
| Pixel Density |
147,456 pixels/m²
|
112,896 pixels/m²
|
65,536 pixels/m²
|
43,264 pixels/m²
|
| Module Dimensions (W × H) (mm) | 250 × 250 | 250 × 250 | 250 × 250 | 250 × 250 |
| Panel Dimensions (mm) |
500 × 500 × 75 / 500 × 1000 × 75 |
500 × 500 × 75 / 500 × 1000 × 75 |
500 × 500 × 75 / 500 × 1000 × 75 |
500 × 500 × 75 / 500 × 1000 × 75 |
| NO .of Modules Per Panel (W × H) | 2 × 2 / 2 × 4 | 2 × 2/ 2 × 4 | 2 × 2/ 2 × 4 | 2 × 2/ 2 × 4 |
| Physical Resolution of Module (W × H) | 96 × 96 | 84 × 84 | 64 × 64 | 52 × 52 |
| Physical Resolution of Panel (W × H) | 192 × 192 / 192 × 384 | 168 × 168 / 168 × 336 | 128 × 128 / 128 × 256 | 104 × 104 / 104 × 208 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum |
| Single Cabinet Weight |
8/ 14 kg/panel |
8/ 14 kg/panel |
8/ 14 kg/panel |
8/ 14 kg/panel |
| Processing | 16 bit | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000 : 1 | 4,000 : 1 | 4,000 : 1 | 4,000 : 1 |
| Average Power Consumption |
64 /128 W /panel |
64 /128 W /panel |
64 /128 W /panel |
60 /120 W /panel |
| Max Power Consumption |
192 /384 W/panel |
192 /384 W/panel |
192 /384 W/panel |
192 /384 W/panel |
| Operating Temp/Humidity | -10℃ - 60℃ / 10% - 60% | -10℃ - 60℃ / 10% - 60% | -10℃ - 60℃ / 10% - 60% | -10℃ - 60℃ / 10% - 60% |
| Storage Temp/Humidity | -30℃ - 60℃ / 10% - 60% | -30℃ - 60℃ / 10% - 60% | -30℃ - 60℃ / 10% - 60% | -30℃ - 60℃ / 10% - 60% |
| Refresh Rate |
＞1,920 Hz |
＞1,920 Hz |
＞1,920 Hz |
＞1,920 Hz |
| Brightness |
≥1,200nits |
≥1,200nits |
≥1,200nits |
≥1,200nits |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Vertical Viewing angle | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs |
| Max Stacking | 20/10 | 20/10 | 20/10 | 20/10 |
| Max Hanging | 20/10 | 20/10 | 20/10 | 20/10 |
| Servicing | Front / Rear | Front / Rear | Front / Rear | Front / Rear |
| IP Rating (Front/Rear) | IP 40 / IP 21 | IP 40 / IP 21 | IP 40 / IP 21 | IP 40 / IP 21 |
| Certification | CCC, CE, ETL, RoHS | CCC, CE, ETL, RoHS | CCC, CE, ETL, RoHS | CCC, CE, ETL, RoHS |
About the Package and Shipping
Our Service
1.Pre-sale service:
Reply enquiries in 24 hours.
Market research and forecast for customer.
Provide unique and professional solutions based on customer's requirement
Data sheet and samples offer.
Other services, such as special packing design, factory visiting and so on.
2.In-sale service:
Tracking report in producing.
Quality test report for every order.
Photos and videos as per customer's requirement.
Free spare parts.
3.After-sale service:
Lifetime free maintenance and upgrade.
Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
Customer satisfaction tracking report.
Free technician training.
Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
Special service for big project, such as stadium, exhibitions, squares and so on.
COMPANY INTRODUCTION
Shenzhen BAKO VISION Technology Co.,Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, is SHENZHEN BAKO LTD holding end professional customers among domestic and overseas markets.
Do not be hesitate to contact us if you have any quiry!
