Light weight P2.5 flexible led display for archiving irregular shape screens
Light weight P2.5 flexible led display for archiving irregular shape screens
P2.5 flexible led display Specification
| BS-2X | |
| Physicla Pitch | 2.5 mm |
| Pixel Configuration | SMD 2121 |
| Pixel Density | 160,000 pixels/m² |
| Module Dimensions (W*H)(mm) | 240*120 |
| Panel Dimensions (mm) | customized |
| Physical Resoulution of Modules (W*H) | 96*48 |
| Weight | 8.2 kg/m² |
| Gray Scale | 16 bit |
| Colours | 281 trillion |
| Contrast Ratio | 4,000:1 |
| Average Power Consumption | 9 W |
| Max Power Consumption | 12 W |
| Brightness | >1,000 nits |
| Refresh Rate | >1,920 Hz |
| Scan Method | 1/40 |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 140° |
| Expected Lifetime | 100,000Hrs |
| Srevicing | Front |
| IP Rating (Front/Rear) | IP 40 |
| Operating Temp/Humidity | -20ºC-60ºC/10%-90% |
| Storage Temp/Humidity | -40ºC-80ºC/10%-90% |
P2.5 flexible led display Features

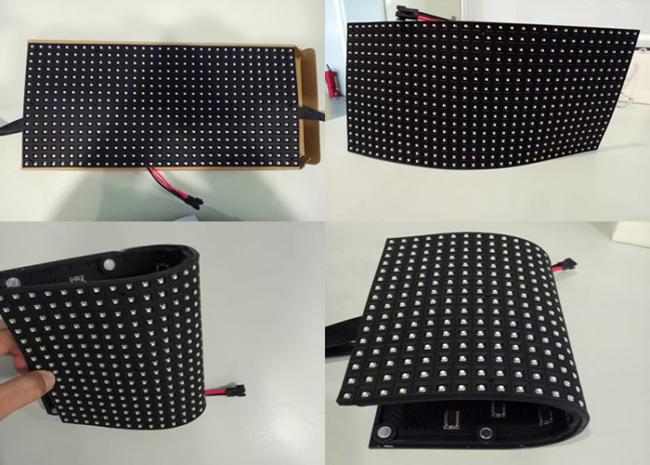

1. Durable soft rubber module, anti-static electricity
2.Soft PCB and rubber material
3.Integrated SMD, IC, Circuit for easy maintenance and heat dissipation
4.Magnetic connection for easy maintenance
5.For any convex, concave or twisted installations
6.Customized pixel pitches available for variable installations
7.5mm thickness, space efficiency
8.0.18kg per module, shipping cost and installation cost saving
9.Fanless design
Services
1) We can offer customization service for customized products and can provide onsite installation and testing service.
2) We provide 2 years warranty and free repair service for our products sold.
3) We also provide free training to customers' engineer.
Tips
1) Payment: We accept the L/C, T/T, Western Union.
2) Shipment: We will ship within 30 working days after you placed the order, but the specific delivered time will be affected by the shipping company and shipping details.
3) Package: We usually pack the product in a wooden box or flight case.
