P3.9 P4.8 Outdoor LED Display HD LED Video Wal Water Proof For Rental
P3.9 P4.8 Outdoor LED Display HD LED Video Wal Water Proof For Rental
BOR-III Series
High Bright, High Definition,
Outdoor Rental LED Display
Specification
| BOR-III-3 | BOR-III-4 | BOR-III-5 | BOR-III-6 | |
| Physical Pitch | 3.91mm | 4.81 mm | 5.95mm | 6.25 mm |
| Pixel Configuration | SMD 1921 | SMD 2727 | SMD 2727 | SMD 2727 |
| Pixel Density |
65536pixels/m²
|
43264 pixels/m²
|
28224 pi xels/m²
|
25600 pixe ls/m²
|
| Module Dimensions (W × H) (mm) | 250 × 250 | 250 × 250 | 250 × 250 | 250 × 250 |
| Panel Dimensions (mm) |
500 × 500 × 80 / 500 × 1000 × 80 |
500 × 500 × 80 / 500 × 1 000 × 80 |
500 × 500 × 80 / 500 × 10 00 × 80 |
500 × 500 × 80 / 500 × 1 000 × 80 |
| NO .of Modules Per Panel (W × H) | 2 × 2/2×4 | 2 × 2 /2×4 | 2 × 2/2×4 | 2 × 2/2×4 |
| Physical Resolution of Module (W × H) | 64×64 | 52×52 | 42×42 | 40×40 |
| Physical Resolution of Panel (W × H) | 128×128/128×256 | 104×104/104×208 | 84×84/84×168 | 80×80/80×160 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum |
| Single Cabinet Weight | 9/ 15 kg/panel | 9/ 15 kg/panel | 9/ 15 kg/panel | 9/ 15 kg/panel |
| Processing | 16 bit | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000 : 1 | 4,000 : 1 | 4,000 : 1 | 4,000 : 1 |
| Average Power Consumption | 75 /150 W/panel | 75 /150 W/panel | 75 /150 W/panel | 75 /150 W/panel |
| Max Power Consumption | 225 /550 W/panel | 225 /550 W/panel | 225 /550 W/panel | 225 /550 W/panel |
| Operating Temp/Humidity | -20℃ - 60℃ / 10% - 60% | -20℃ - 60℃ / 10% - 60% | -20℃ - 60℃ / 10% - 60% | -20℃ - 60℃ / 10% - 60% |
| Storage Temp/Humidity | -30℃ - 60℃ / 10% - 60% | -30℃ - 60℃ / 10% - 60% | -30℃ - 60℃ / 10% - 60% | -30℃ - 60℃ / 10% - 60% |
| Refresh Rate | ＞1,920 Hz | ＞1,920 Hz | ＞1,920 Hz | ＞1,920 Hz |
| Brightness | ≥6000 nits | ≥6000 nits | ≥6000 nits | ≥6000 nits |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Vertical Viewing angle | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs |
| Max Stacking | 20/10 | 20/10 | 20/10 | 20/10 |
| Max Hanging | 20/10 | 20/10 | 20/10 | 20/10 |
| Servicing | Front / Rear | Front / Rear | Front / Rear | Front / Rear |
| IP Rating (Front/Rear) | IP 65/ IP 54 | IP 65/ IP 54 |
IP 65/ IP 54 |
IP 65/ IP 54 |
| Certification |
CCC, CE, ETL, RoHS |
CCC, CE, ETL, RoHS |
CCC, CE, ETL, RoHS |
CCC, CE, ETL, RoHS |
User Friendly and Fast Installation
Feature
Outdoor Rated
→ IP65 rating for front and rear
→ Suitable brightness adjustable for outdoor day and night
→ Deep black level, contrast ratio 4000:1
→ Truss hanging and ground support both available
→ Fast lock and handle designed user friendly
→ Front and rear access
→ Tools free installation

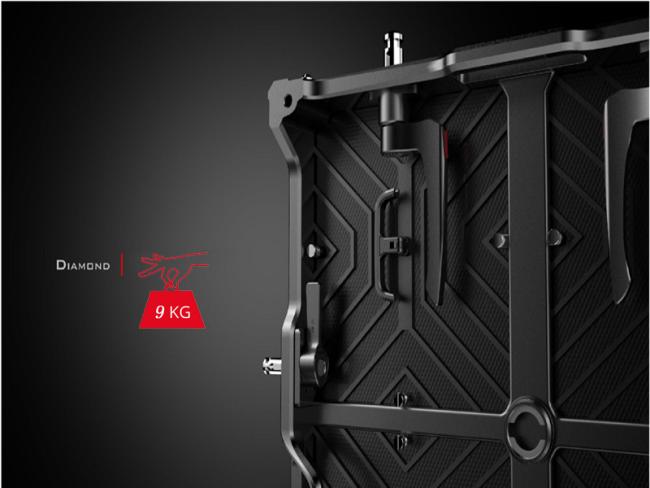

Slim,Light Weight and Quiet
→ 500mm×500mm or 500×1000mm options
→ 80mm thickness
→ 1 person job
→ Fanless design
Smart Concave and Convex
→ Both 500mm×500mm and 500mm×1000mm cabinets are arc-able
→ 0°-10° concave and convex degree
COMPANY INTRODUCTION
Shenzhen BAKO VISION Technology Co.,Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, is SHENZHEN BAKO LTD holding end professional customers among domestic and overseas markets.
Do not be hesitate to contact us if you have any quiry!
FAQ
Q1. Are you trading company or manufacturer?
A: We are a professional LED screen manufacturer,specialize in this industry for more than ten years.
Q2. Do you provide samples?is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q3. Do you offer guarantee for the products?
A: Yes,we offer 2-5 years warranty to our products.
