Ultra Lightweight Indoor LED Poster For Advisting , P1.9 P2.5 P3 Pixel Pitch
Ultra Lightweight Indoor LED Poster For Advisting , P1.9 P2.5 P3 Pixel Pitch

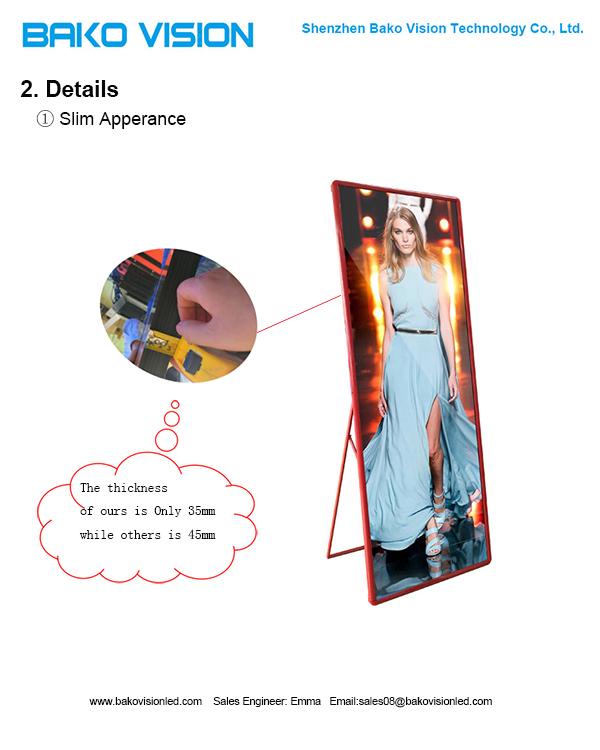

Being different from those I-posters in the market, our LED I-Poster is ultra slim, lightweight and portable, which is much saving on transport cost and labor cost. What's more? While splicing the screens, the frame of our LED I-Poster is only4 mm while others at least 6 mm presenting better visual effects.
LED I-Poster Parameters:
| BP-1 | BP-2 | |
| Physical Pitch | 1.9 mm | 2.5 mm |
| Pixel Configuration | SMD 1010 | SMD 2020 |
| Pixel Density | 276,676 pixels/m² | 160,000 pixels/m² |
| Module Dimensions (W*H)(mm) | 280*210 | 280*210 |

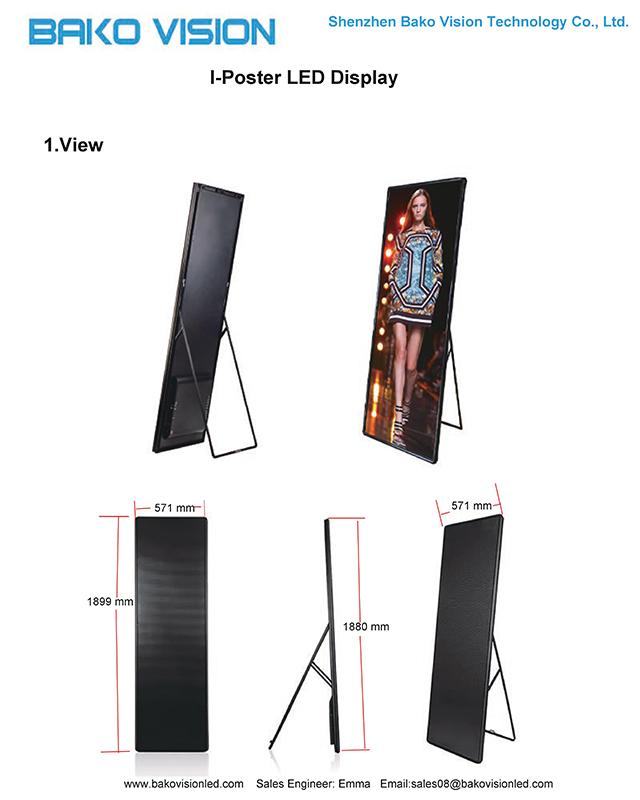

| Whole Set Dimensions (W*H)(mm) | 572*1920*35 | 572*1920*35 |
| No. of Modules Per panel (W*H) | 2*9 | 2*9 |
| Physical Resolution of Module (W*H) | 147*110 | 112*84 |
| Physical Resolution of Whole Set (W*H) | 301*1,010 | 228*768 |
| Panel Material | Aluminum | Aluminum |

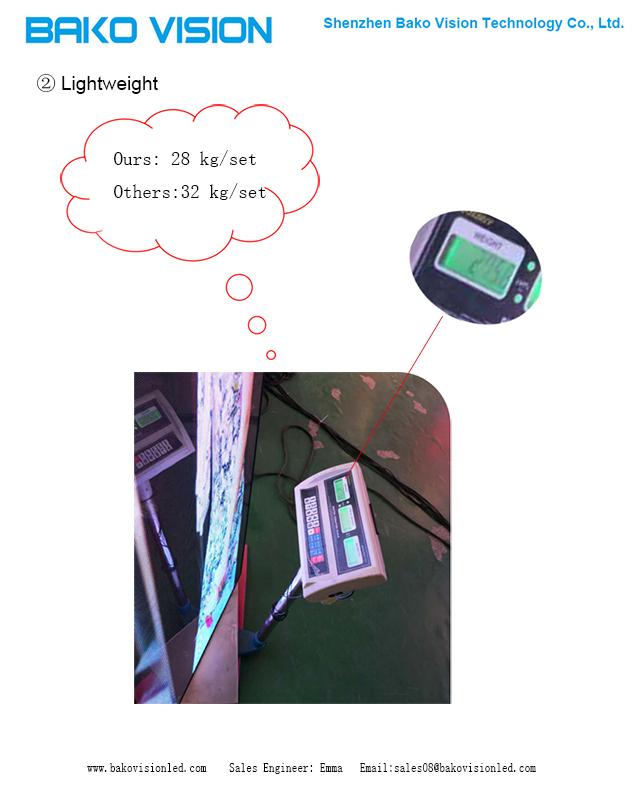

| Single Cabinet | 28 kg | 28 kg |
| Processing | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000:1 | 4,000:1 |
| Average Power Consumption | 250 W/set | 200 |
| Max Power Cousumption | 750 W/set | 600 |
| Driving Method | 1/27 | 1/28 |
| Operating Temp/Humidity | -10°-60ºC /10%-60% |
-10°-60ºC /10%-60% |
| Storage Temp/Humidity | -30°-60ºC /10%-60% |
-30°-60ºC /10%-60% |
| Brightness | >1,000 nits | >1,000 nits |
| Refresh Rate | ≥2,880 Hz | ≥2,880 Hz |
| Vertical Viewing Angle | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° |
| IP Rating (Front/ Rear) | IP 40 | IP 40 |
| Frame Rate | 60fps | 60fps |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front |
LED Vision Technology Limited , started in Shenzhen in 2005,a world class manufacturer of
technologically advanced LED displays,it is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION product lines have include I/O rantal,I/O fixed, UHD fine pitch, transparent screen,advertising poster,foldable screen… meanwhile, based on our experienced R&D team,and comprehensive management , we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
FAQ
Q1:How to choose a proper led screen for your need?
A:You just need to think of 3 simple questions when you choose a led screen by yourself.
1.Will you use it indoor or outdoor?
2.Is it for rental use(need to be moved from one place to another place very often) or for fixed installation(to be installed in one place forever)?
3.what is the appoximate size of the led screen you would like to purchase?
Q2:Which pixel pitch should i choose?
A:There are many different pixel pitch from 1.667--20,25,30mm, there is a roughly principle-usually small pixel(1.667mm-10mm) used for indoor led screen, bigger pixel (10mm-30mm) used for outdoor led screen(for example high way huge advertisement).
Q3:Which control system should i choose?

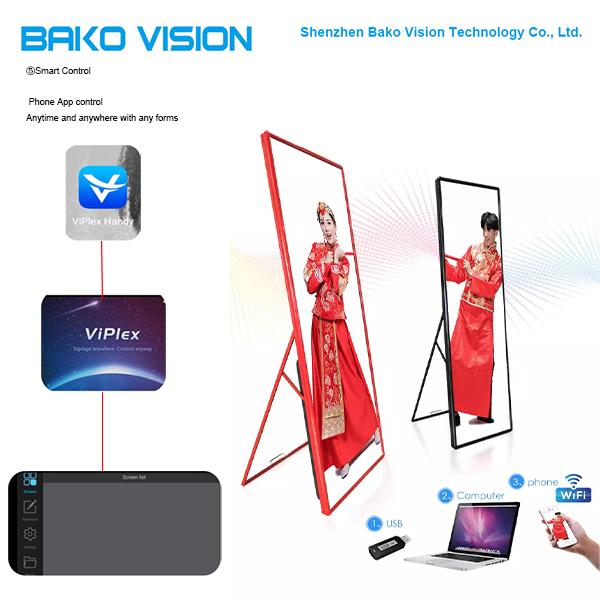

A:There is both synchronous and asynchronous control system for led screen on the market,for big size led screen(usually more than 20sqm) need to use synchronous control system,below 20sqm it's up to you to use syn or asyn.But asyn control system's refresh rate is much lower than sync control system and for asyn control system, you can choose to use wifi,3G,4G etc wireless control.
