IR1G1B P2.97 Indoor Rental LED Display Die Casting Cabinet 1920Hz Refresh Rate
IR1G1B P2.97 Indoor Rental LED Display Die Casting Cabinet 1920 Hz Refresh Rate
Key Features:
P3.91 mm indoor led Screen ( 500 mm X 500mm or 500x1000mm)
CE certificate from TUV
Reddot Award 2017
Fast assembling & disassembling
No tools are required for installation of the screen.

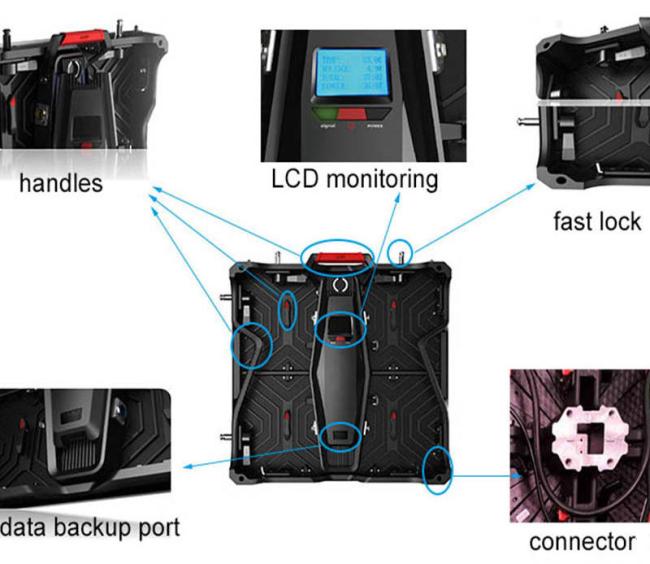

UI LCD display
The rear box has an LCD display that it shows voltage, temperature, cabinet usage timing for every time used and total hours of usage.
Power and signal lamps indicate cabinet status.
Dual data connection
There is optional data connecting port on cabinets under a rear box, you can use it if standard one fails.
No flat & power cable on the module
Everything is connected with pin type socket. The Cable-free design makes it fast for installation and stable in data/power transmission.
Strong Locks for hanging installation
The cabinets locks are smooth-edged, easy handling and strong that you can hang up many cabinets in the same row.
Specifications:
| BIR-I-2 | |
| Physical Pitch | 2.97mm |
| Pixel Configuration | SMD2121 |
| Pixel Density | 112896 pixels/m² |
| Module Dimensions (W× H) (mm) | 250*250/250*500 |
| Panel Dimensions (mm) | 500*500*80/500*1000*80 |
| NO .of Modules Per Panel (W × H) | 2*2 |
| Physical Resolution of Module ( W× H) | 84*84/64*168 |
| Panel Material | 168*168/128*336 |
| Single Cabinet Weight | 8/14 |
| Processing | 14-16bit |
| Colour Number | 281trillion |
| Contrast Ratio | 4000:1 |
| Average Power Consumption | 60/120W/m² |
| Max Power Consumption | 110/400W/m² |
| Operating Temperature | -20~60℃ |
| Refresh Rate | >1920Hz |
| Brightness | 900-1200nits |
| Horizontal Viewing Angle | 140° |
| Vertical Viewing angle | 140° |
| Max Stacking | 20 |
| Expected Lifetime | 100,000hours |
| Servicing | Front/Rear |
| IP Rating (Front/Rear) | IP40/IP21 |
FAQ
1. How can I place an order?
Please provide the details of your requirements as clear as possible. then we will send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype/email /phone, in case of any delays.
2. What kind of display do we provide?
We have indoor/outdoor/fixed LED /rental LED display /Creative LED display for you choose.
3. What about the lead time for an order?
Always: 20-25 days, as your order quantity, sometimes we have stock, can delivery within 7 days
4. What about the warranty?
We have TWO years quality guaranteed, spare parts such as led module, receiving card, control card, power supply are damaged not cause of artificial damaged, then it's free maintenance and ship back new ones for replacement.
5. How about the quality?
Our led products must be testing of at least 72 hours before shipping, from purchase raw materials to ship, Each step has strict quality control systems to ensure led display with good quality
6. Can you offer technical support? Since it's my first time
We provide free training for our customer, teach the client how to set up screens, make configuration of parameters, broadcast the videos through Nova star and colorlight or Linsn control systems, our engineer can directly teach you how to control or help you to do if you are really don't know how to control
