Full Color Indoor Rental LED Display 900-1200 Nits Brightness 100000 Hrs Life Span
Full Color Indoor Rental LED Display For Rental/Advertising/Store
Main features
(1) Light.Cabinet size of 500*500mm and light weight of only 7.0 kg enable one-person installation easier and simpler, save installation time. But traditional HD stage led screen is over 25 Kg of the same size.
(2) Thin. Adopting the die-casting aluminum, it is high strength, high tenacity, high accuracy and not easy to distort. The thickness of our cabinet is 80mm, the traditional cabinet is 160mm.
(3) Low. Has excellent heat dissipation design and performance. it is low noise and doesn't need an external fan or air-condition. With the features of light weight and low power consumption, it can reduce the labor cost of installation and operating costs.
(4) Easy to maintenance.Adopting modular design, an assembled cabinet can install and disassemble quickly and easily.
Parameter
| Physical Pitch | 2.97mm | 3.91mm | 4.81mm | 6.25mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2121 | SMD3528 |
| Pixel Density |
112,896 pixels/m² |
65,536 pixels/m² |
43,264 pixels/m² |
25,600 pixels/m² |
| Physical Resolution of Module(W*H)(mm) |
84*84/ 84*168
|
64*64/ 64*128
|
52*52/ 52*104
|
40*40/ 40*80
|
| Physical Resolution of Panel(W*H)(mm) |
168*168/ 168*336
|
128*128/ 128*256
|
104*104/ 104*208
|
80*80/ 80*160
|
| Module Dimensions(W*H)(mm) |
250*250/250*500
|
|||
| Panel Dimensions(mm) | 500*500*80/500*1000*80 | |||
| NO. of Modules Per Panel (W*H) | 2*2 | |||
| Panel Material | Die-Casting Aluminum | |||
| Colors | 281Trillion | |||
| Processing | 16 Bit | |||
| Single Cabinet Weight | 7/13kg/panel | |||
| Average Power Consumption | 60/120W/panel | |||
| Refresh Rate | >1,920 Hz | |||
| Brightness | 900-1200 nits | |||
| Viewing Angle | H:160°/ V:140° | |||
| Expected Lifetime | 100,000 Hrs | |||
| Servicing | Front/Rear | |||
| IP Rating(Front/Rear) | IP 40/IP21 | |||
| Max Stacking | 20/10 | |||
| Max Hanging | 20/10 | |||

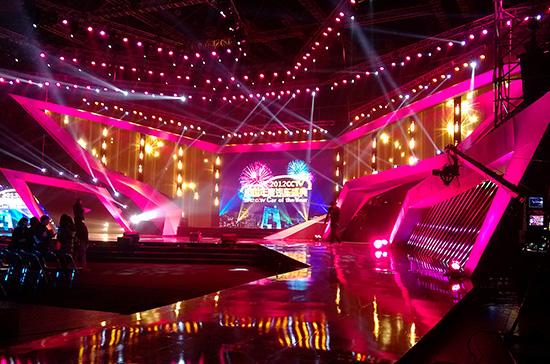

Case
Project Accomplished: Aug, 2016
Product Model:BIR, pixel pitch 5.2mm
Project Accomplished: Nov, 2012
Location:Beijing, China
Screen Dimension: video wall + glass screen totally 415m²
Product Model: BIR-3, pixel pitch 3.9mm. BG-7.5-8
About us
LED Vision Technology Limited , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

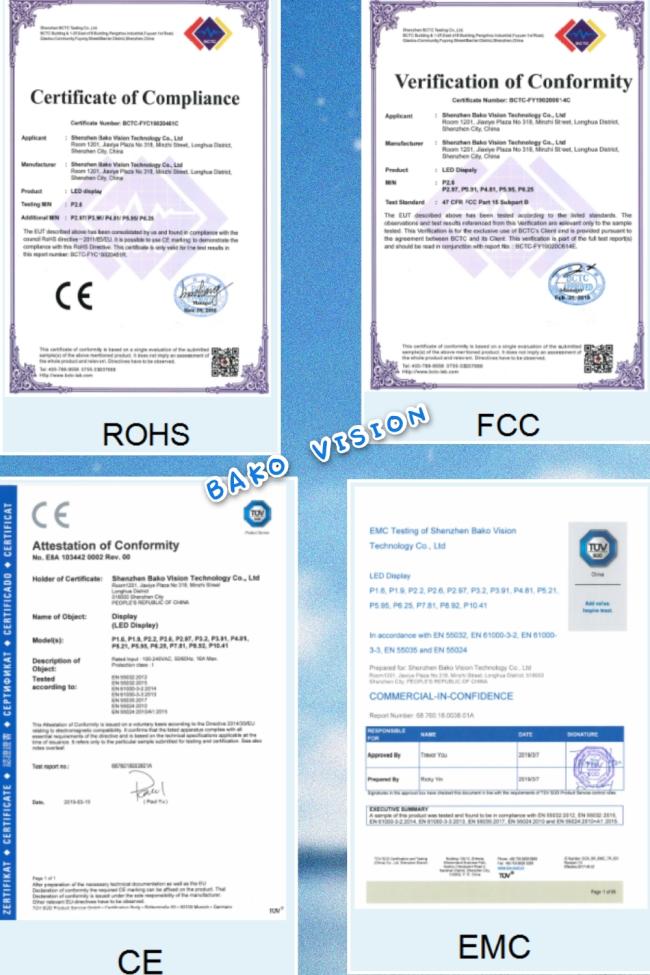

Certification
FAQ
Q1:Can you tell me why I should choose your company ?
A1:Concentration makes professional .Professional achieves successful .
Our Bako vision have 14 years professional led technical experience .we have our own factory, we are largely expanding our international market.From 2005 to 2019, we only do LED .Now and In the future, we still do LED.We can cooperate from trail order to establish trust step by step .
Q2:What's the warranty of your LED Display ?
A2: 2-5 years warranty .and 100,000hrs life span.During the warranty period ,we can offer you related after-sales service. Our professional engineering team are ready for your question during 6:00-23:30.
Q3: What's your payment term? How long is your delivery time ?
A3: We accept T/T ,L/C,Paypal ,Western Union ,Money Gram, and Cash .At least 30-50 % deposit in advance, and the balance should be paid before delivery.Our average Production time is 7-15 working days after receiving the deposit.If your order is rapidly urgent ,we can arrange your order firstly.
Q4:Can you visit our factory in China?
A4:Usually except our staff,other persons are not allowed to visit the factory,as you know it is not good for workers to produce intently.But,of course,our factory is open to our customers,very welcome to visit us,and the person who is responsible will guide you to scan the workshop every step,you will know the rough producing situation,then you will be trustfull to us.Business is long time cooperation.Trust is the most important between each other.I think we can not only do business together,but also can be good friends.The future is belonging to both of you and us.
