Lightweight Indoor Full Color Led Display P3.91 SMD2121 500x500mm Fast Installation
Lightweight Indoor Full Color Led Display P3.91 SMD 500x500mm Fast Installation
Key Features:
• Fast Installation and Easy Maintenance, Front/rear service, No need tools;
• Slim, Light and Quiet, Fanless design;
• Superior Electrical Features;
• TUV certificated and Reddot Awarded.

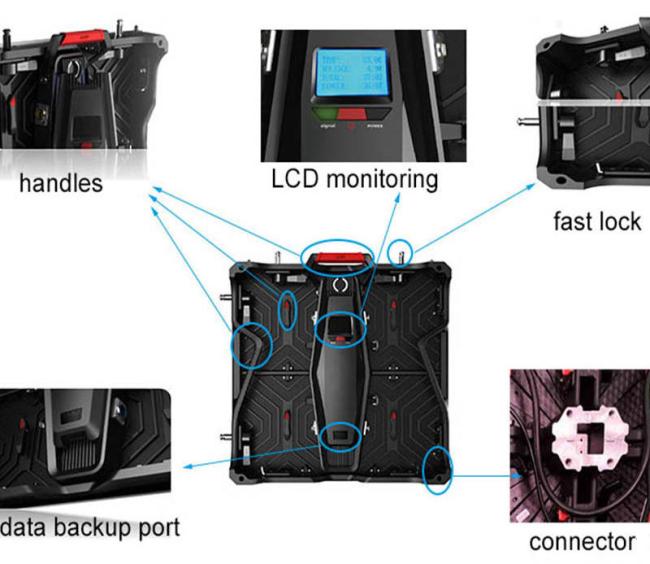

Fast assembling & disassembling
No tools are required for installation of the screen.
UI LCD display
The rear box has an LCD display that it shows voltage, temperature, cabinet usage timing for every time used and total hours of usage.
Power and signal lamps indicate cabinet status.
Dual data connection
There is optional data connecting port on cabinets under a rear box, you can use it if standard one fails.
No flat & power cable on the module
Everything is connected with pin type socket. The Cable-free design makes it fast for installation and stable in data/power transmission.
Strong Locks for hanging installation
The cabinets locks are smooth-edged, easy handling and strong that you can hang up many cabinets in the same row.
Specifications:
| BIR-I | |
| Physical Pitch | 3.91mm |
| Pixel Configuration | SMD2121 |
| Pixel Density | 65536 pixels/m² |
| Module Dimensions (W× H) (mm) | 250*250/250*500 |
| Panel Dimensions (mm) | 500*500*80/500*1000*80 |
| NO .of Modules Per Panel (W × H) | 2*2 |
| Physical Resolution of Module ( W× H) | 64*64/64*128 |
| Panel Material | 128*128/128*256 |
| Single Cabinet Weight | 8/14 |
| Processing | 14-16bit |
| Colour Number | 281trillion |
| Contrast Ratio | 4000:1 |
| Average Power Consumption | 60/120W/m² |
| Max Power Consumption | 110/400W/m² |
| Operating Temperature | -20~60℃ |
| Refresh Rate | >1920Hz |
| Brightness | 900-1200nits |
| Horizontal Viewing Angle | 140° |
| Vertical Viewing angle | 140° |
| Max Stacking | 20 |
| Expected Lifetime | 100,000hours |
| Servicing | Front/Rear |
| IP Rating (Front/Rear) | IP40/IP21 |
About us:
LED Vision Technology Limited , started in Shenzhen in 2005, a world-class manufacturer of technologically advanced LED displays, focusing on professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION main markets are among America, Europe, the Middle East, and Asia, all of our products are certificated by RoHS, CCC, CE, FCC, ETL, UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied on the long term partnership with variety channel customers over 120+ countries.
Our Service:
1. We guarantee all our display, modules, spare parts for TWO years.
2. We provide technology training for free, which contains the operation and maintenance training of the LED display in the factory.
3. After sales, if you have any problem with our products, you can inform us by E-mail, we will reply to you at once.
4. We can provide the training and technical support for the customer in the factory if the customer asks.
5. We can provide OEM and ODM
