Outdoor Waterproof Sports Perimeter LED Display P16 High Refresh Rate SMD3535
P16 High Refresh Rate Outdoor Waterproof Sports Perimeter Fixed LED Display for Stadium
specifiction
| Physical Pitch | 16mm |
| Pixel Configuration | SMD3535 |
| Pixel Density | 3,906pixels/m² |
| Module Dimensions | 256×128mm |
| Panel Dimensions | 1280×896×187mm |
| NO. of Modules Per Panel | 5×7 |
| Physical Resolution of Module | 16×8dots |
| Physical Resolution of Panel | 160×56dots |
| Panel Material | Steel/Aluminum |
| Weight | 70/50kg/m² |
| Grayscale | 16bit |
| Colors | 281trillion |
| Contrast Ratio | 2000:1 |
| Average Power Consumption | 360W/ panel |
| Max Power Consumption | 900W/ panel |
| Refresh Rate | ＞1920Hz |
| Brightness | ＞6500nits |
| Expected Lifetime | 100,000Hrs |
| Servicing | Front/Rear |
| IP Rating(Front/Rear) | IP65/IP54 |
Features
1. High Refresh Rate for camera, vivid and brilliant colors. Adjustable brightness for outdoor day and night.
2. IP65 rating for outdoor weather.
3. Board viewing angle.

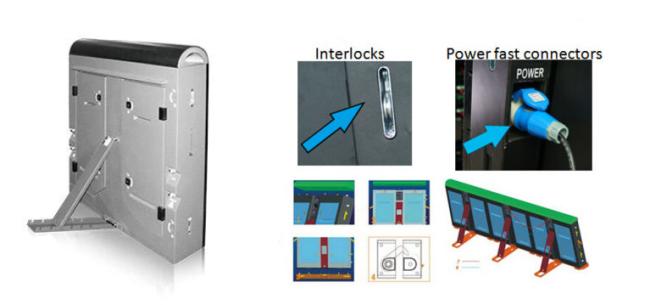

4. Fast to install and dismantle.
5. Removing the ground adjustable bracket and protection foam bumper can be transformed to be a square solid screen. What is more, protection foam bumper can protect both football player and led display itself.

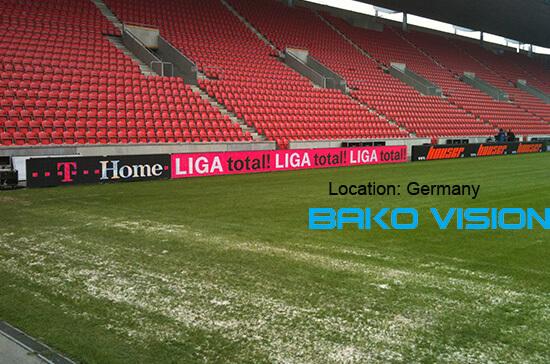

Case
Services
- We can offer customization service for customized products and can provide onsite installation and testing service.
- We provide 2 years warranty and free repair service for our products sold.
- We also provide free training to customers' engineer.
- From raw materials to every process, we have strict production and testing process to ensure that our products under the quality inspection system standards.
- At the same time, we have an aging testing of 72 hours as well as waterproof test of outdoor led display to ensure the high quality of the product.
Tags: Sports Perimeter LED Display, Football Perimeter LED Screen
