Soft Ribbon Rubber Flexible LED Display For Any Convex, Concave Or Twisted Installations
Soft Ribbon Rubber Flexible LED Display For Any Convex, Concave Or Twisted Installations
Feature
Light weight: Only 8.2kg/m², shipping cost and installation cost saving.
Low energy: Average power consumption 9W
Slim: 5mm tickness, space efficiency
Fanless design: Make very silent but have a good dissipation
Parameter
| Physical Pitch | 2.5mm | 3mm | 4mm | 6.66mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2121 | SMD3528 |
| Pixel Density | 160,000 pixels/m² |
111,111 pixels/m² |
62,500 pixels/m² |
22,545 pixels/m² |
| Module Dimensions(W*H)(mm) | 240*120 | 240*120 | 240*120 | 320*160 |
| Panel Dimensions(mm) | Customized | Customized | Customized | Customized |
| Physical Resolution of Module(W*H) | 96*48 | 80*40 | 60*30 | 48*24 |
| Weight | 8.2kg/m² | 8.2kg/m² | 8.2kg/m² | 8.2kg/m² |
| Colors | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Processing | 16 bit | 16 bit | 16 bit | 16 bit |
| Contrast Ratio | 4000:1 | 4000:1 | 4000:1 | 4000:1 |
| IP Rating | IP40 | IP40 | IP40 | IP40 |
| Horizontal/Vertical Viewing Angle | 160°/140° | 160°/140° | 160°/140° | 160°/140° |
| Expected Lifetime | 100,000Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Operating Temp/Humidity |
-20℃-60℃/ 10%-90% |
-20℃-60℃/ 10%-90% |
-20℃-60℃/ 10%-90% |
-20℃-60℃/ 10%-90% |
| Storage Temp/Humidity |
-40℃-80℃/ 10%-90% |
-40℃-80℃/ 10%-90% |
-40℃-80℃/ 10%-90% |
-40℃-80℃/ 10%-90% |
| Servicing | Front | Front | Front | Front |
| Driving Method | 1/40 | 1/40 | 1/8 | 1/8 |
| Average Power Consumption | 9W | 9W | 9W | 9W |
| Max Power Consumption | 12w | 12w | 12w | 12w |
About our Product

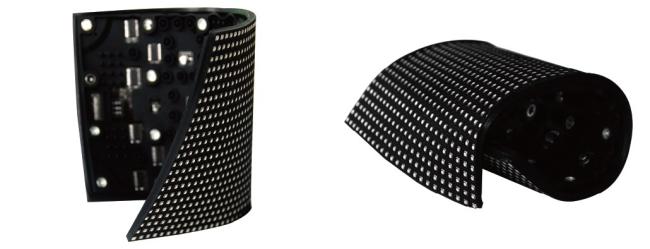

● Durable soft rubber module, anti-static electricity
● Soft PCB and rubber material
● Integrated SMD, IC, Circuit for easy maintenance and heat dissipation
● Magnetic connection for easy maintenance
● For Any Creative Shape and Size, For Unique

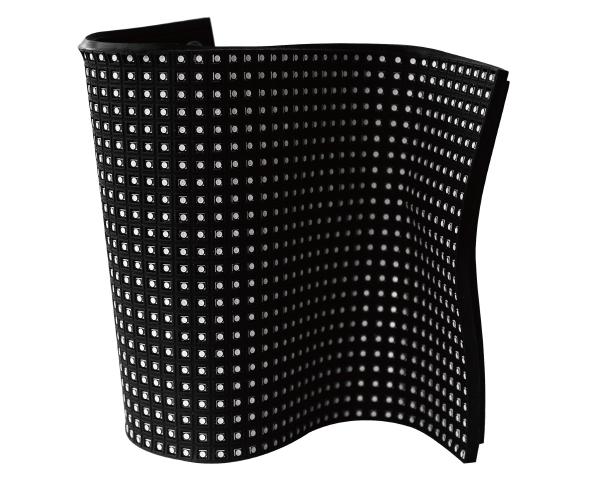

● Convex, Concave or Twisted Available Module
● Flexible Rubber Module, Creative Solutions
Our company
LED Vision Technology Limited , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
Our service:
1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your enquires in fluent English .
3.OEM&ODM, any your customized screen we can help you to design and put into product.
4.Distributoer ship are offered for your unique design and some our current models .
5.Protection of your sales area, ideas of design and all your private information .
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
