Stage Outdoor Video Display Screens 6000 Nits 1920Hz With Hanging Beam Installation
Stage Outdoor Rental LED Display Screen with Hanging Beam Installation
Specifications:
| BOR-III-3 | BOR-III-4 | BOR-III-5 | BOR-III-6 | |
| Physical Pitch | 3.91mm | 4.81 mm | 5.95mm | 6.25 mm |
| Pixel Configuration | SMD 1921 | SMD 2727 | SMD 2727 | SMD 2727 |
| Pixel Density |
65536 pixels/m²
|
43264 pixels/m²
|
28224 pixels/m²
|
25600 pixels/m²
|
| Module Dimensions (W × H) (mm) | 250 × 250 | 250 × 250 | 250 × 250 | 250 × 250 |
| Panel Dimensions (mm) |
500 × 500 ×80 500 × 1000 × 80 |
500 × 500 ×80 500 × 1000 × 80 |
500 × 500 × 80 500 × 1000 × 80 |
500 × 500 ×80 500 × 1000 × 80 |
| NO .of Modules Per Panel (W × H) | 2 × 2/2×4 | 2 × 2 /2×4 | 2 × 2/2×4 | 2 × 2/2×4 |
| Physical Resolution of Module (W × H) | 64×64 | 52×52 | 42×42 | 40×40 |
| Physical Resolution of Panel (W × H) | 128×128/128×256 | 104×104/104×208 | 84×84/84×168 | 80×80/80×160 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum |
| Single Cabinet Weight | 9/ 15 kg/panel | 9/ 15 kg/panel | 9/ 15 kg/panel | 9/ 15 kg/panel |
| Processing | 16 bit | 16 bit | 16 bit | 16 bit |
| Colors | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000: 1 | 4,000: 1 | 4,000: 1 | 4,000: 1 |
| Average Power Consumption | 75 /150 W/panel | 75 /150 W/panel | 75 /150 W/panel | 75 /150 W/panel |
| Max Power Consumption | 225 /550 W/panel | 225 /550 W/panel | 225 /550 W/panel | 225 /550 W/panel |
| Operating Temp/Humidity | -20℃ - 60℃ / 10% - 60% | -20℃ - 60℃ / 10% - 60% | -20℃ - 60℃ / 10% - 60% | -20℃ - 60℃ / 10% - 60% |
| Storage Temp/Humidity | -30℃ - 60℃ / 10% - 60% | -30℃ - 60℃ / 10% - 60% | -30℃ - 60℃ / 10% - 60% | -30℃ - 60℃ / 10% - 60% |
| Refresh Rate | ＞1,920 Hz | ＞1,920 Hz | ＞1,920 Hz | ＞1,920 Hz |
| Brightness | ≥6000 nits | ≥6000 nits | ≥6000 nits | ≥6000 nits |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Vertical Viewing angle | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs |
| Max Stacking | 20/10 | 20/10 | 20/10 | 20/10 |
| Max Hanging | 20/10 | 20/10 | 20/10 | 20/10 |
| Servicing | Front / Rear | Front / Rear | Front / Rear | Front / Rear |
| IP Rating (Front/Rear) | IP 65/ IP 54 | IP 65/ IP 54 |
IP 65/ IP 54 |
IP 65/ IP 54 |
| Certification |
CCC, CE, ETL, RoHS |
CCC, CE, ETL, RoHS |
CCC, CE, ETL, RoHS |
CCC, CE, ETL, RoHS |
Feature
Outdoor Rated
→ Outdoor waterproof with IP65
→ Suitable brightness adjustable for outdoor day and night
→ Deep black level, the contrast ratio is 4000:1

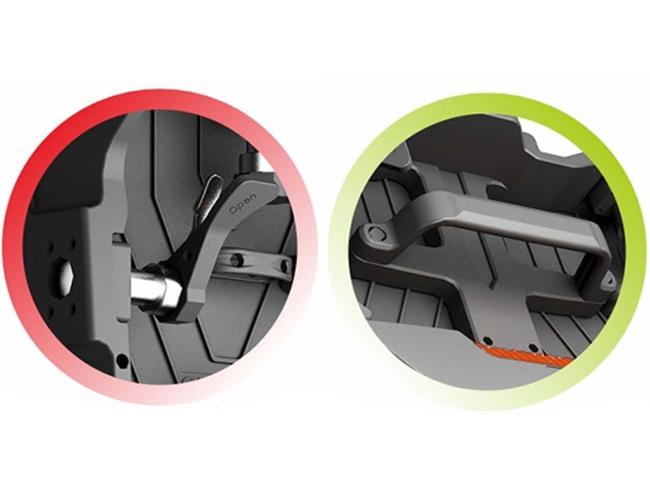

Fast Installation and Easy Maintenance
→ Truss hanging and ground support both available
→ Cable-less between modules
→ Front and rear access
→ Tools free installation
Slim, Light Weight and Quiet

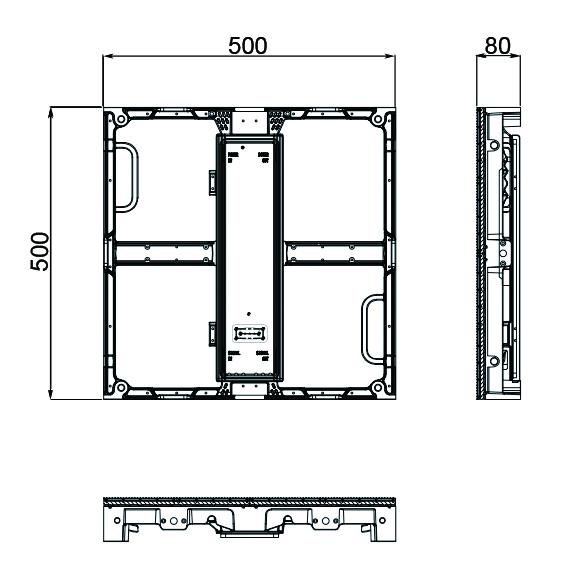

→500mm×500mm or 500mm×1000mm options
→ 80mm thickness
→ Fanless design

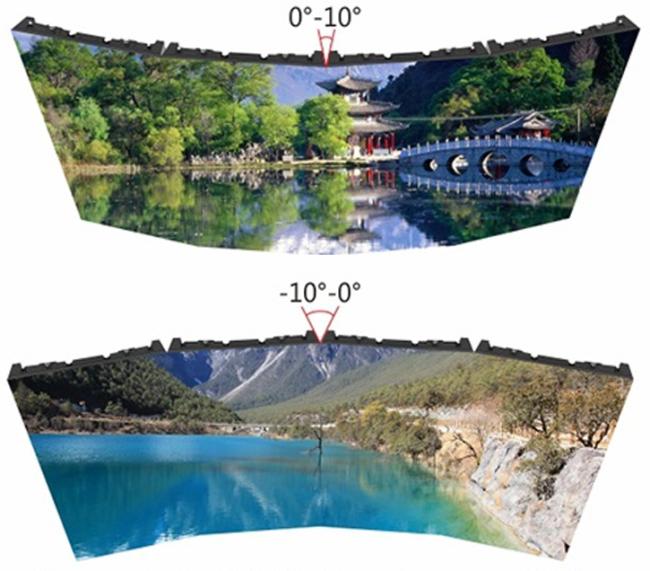

Smart Concave and Convex
● Both 500mmx500mm and 500mmx1000mm cabinets are
arc-able
● 0°-10° concave and convex degree
About us:

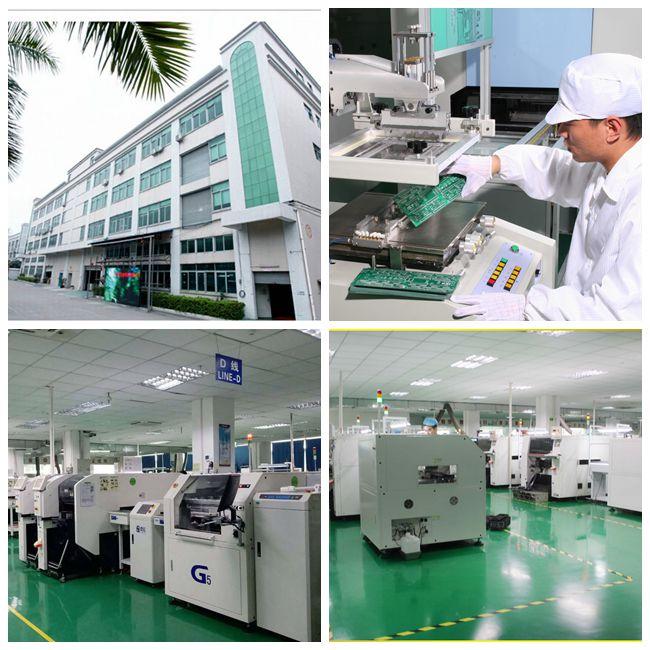

LED Vision Technology Limited , started in Shenzhen in 2005, a world-class manufacturer of technologically advanced LED displays, focusing on professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION main markets are among America, Europe, the Middle East, and Asia, all of our products are certificated by RoHS, CCC, CE, FCC, ETL, UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied on the long term partnership with variety channel customers over 120+ countries.
Our Service:
1. We guarantee all our display, modules, spare parts for TWO years.
2. We provide technology training for free, which contains the operation and maintenance training of the LED display in the factory.
3. After sales, if you have any problem with our products, you can inform us by E-mail, we will reply to you at once.
4. We can provide the training and technical support for the customer in the factory if the customer asks.
