Lightweight Full Color Outdoor Advertising Led Display Billboard P6.4-12.8mm
Lightweight Die-Casting Aluminum Outdoor Billboard LED Display P6.4-12.8mm
Specification
| BDF-6 | BDF-8 | BDF-10 | BDF-12 | |
| Physical Pitch | 6.4mm | 8mm | 10.66mm | 12.8mm |
| Pixel Configuration | SMD2727 | SMD2727 | SMD3535 | SMD2727 |
| Pixel Density | 24,414pixels/m² | 15,625pixels/m² | 8,800 pixels/m² | 6,103 pixels/m² |
| Module Dimensions | 512×256mm | 512×256mm | 512×256mm | 512×256mm |
| Panel Dimensions | 1024×768×100mm | 1024×768×100mm | 1024×768×100mm | 1024×768×100mm |
| NO. of Modules Per Panel | 2×3 | 2×3 | 2×3 | 2×3 |
| Physical Resolution of Module | 80×40dots | 64×32dots | 48×24dots | 40×20dots |
| Physical Resolution of Panel | 160×120dots | 128×96dots | 96×72dots | 80×60dots |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum |
| Single Cabinet Weight | 35kg | 35kg | 35kg | 35kg |
| Grayscale | 16bit | 16bit | 16bit | 16bit |
| Colors | 281trillion | 281trillion | 281trillion | 281trillion |
| Contrast Ratio | 2000:1/4000:1 | 2000:1/4000:1 | 2000:1/4000:1 | 2000:1/4000:1 |
| Average Power Consumption | 240W/ panel | 350W/ /m² | 350W/ /m² | 350W/ /m² |
| Max Power Consumption | 600W/ panel | 700W/ /m² | 700W/ /m² | 700W/ /m² |
| Refresh Rate | ＞1920Hz | ＞1920Hz | ＞1920Hz | ＞1920Hz |
| Brightness | ＞5500nits | ＞5500nits | ＞5500nits | ＞5500nits |
| Expected Lifetime | 100,000Hrs | 100,000Hrs | 100,000Hrs | 100,000Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating(Front/Rear) | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 |
Features
1. High refresh rate and contrast rate. Suitable brightness adjustable for outdoor day and night.

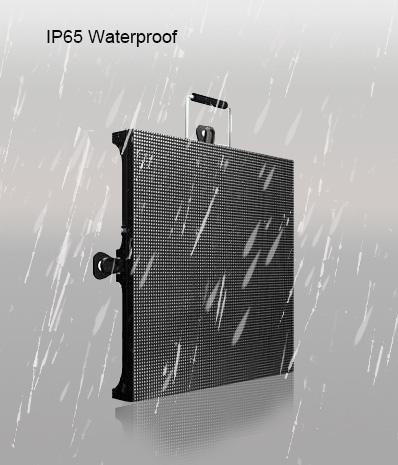

2. Outdoor waterproof with IP65 to adapt to all kinds of weather conditions.

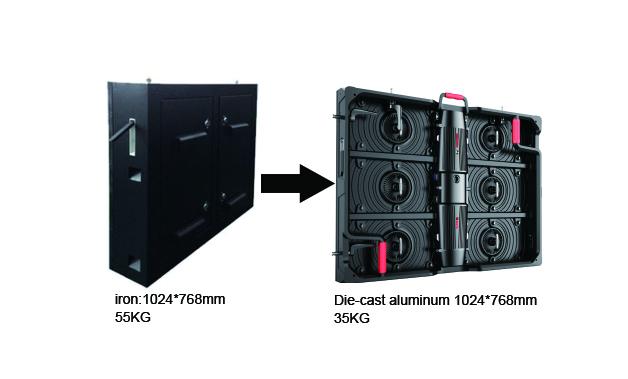

3. Made with die-casting aluminum, lightweight and slim. In addition, made with die-casting aluminum better for heat dissipation and no fan design more quiet.

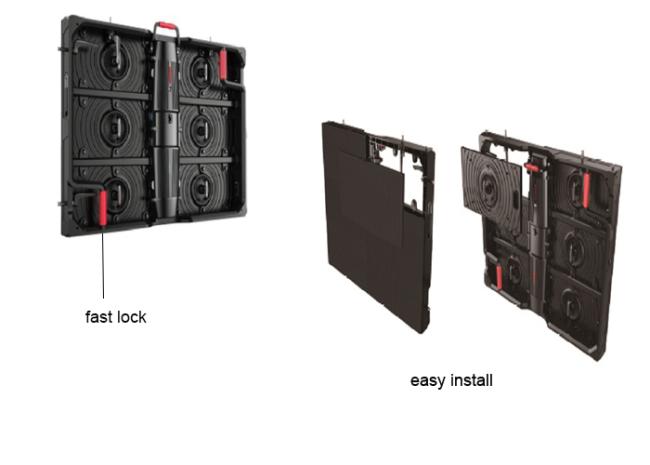

4. Fast installation and easy maintenance.

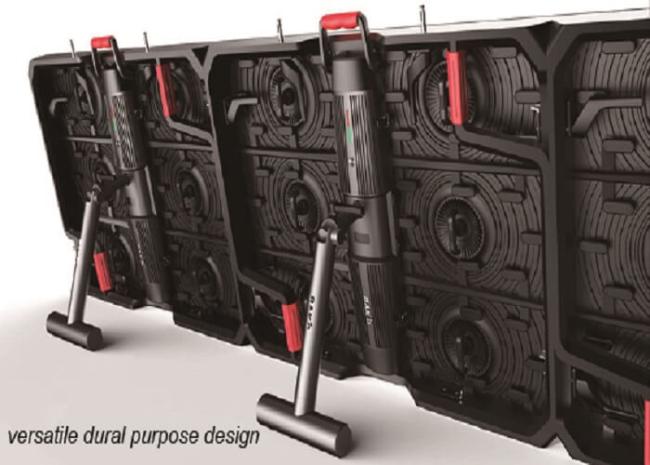

5. Cabinet can be transformed to be perimeter display adding with ground adjustable bracket and protection foam bumper.
About us

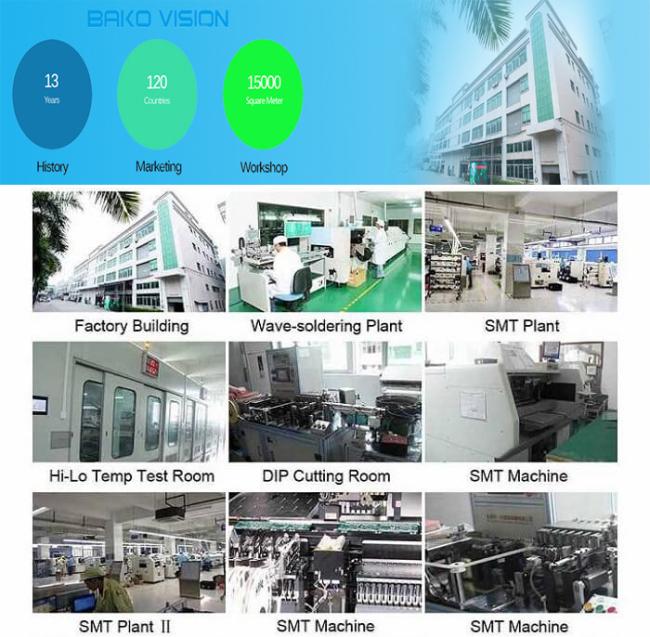

LED Vision Technology Limited , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
FAQ
1. Are you trading company or manufacturer?
We are a professional led screen manufacturer.
2. How to payment?
We accept the L/C, T/T, Western Union.
3. What is the packing method?
We usually use plywood case or flight case.
4. How about the delivery time?
We will ship within 30 working days after you placed the order, but the specific delivered time will be affected by the shipping company and shipping details.
5. Do you provide samples ? Is it free or extra?
We provide samples if you need, but the customers have to pay the sample cost and the courier cost.
Tags: Billboard LED Display, Outdoor Fixed Display.
