LED Display Outdoor LED Billboard Wall Mounted Die Casting Aluminum Cabinet 2 Years Warranty
LED Display Outdoor LED Billboard Wall Mounted Die Casting Aluminum Cabinet 2 Years Warranty ()
Outdoor LED Billboard Advantages
Lightweight Large Format,Slim and Smart
Ideal substitution for tranditional outdoor bulky and heavy cabinet
I/O advertising billboard
Space series will becom another star product for outdoor fixed installation advertising led display,compared with the tranditional outdoor advertising screen design,space series die-casting aluminum design changed all the disadvantages of heavy and ugly,making it a revolution for outdoor advertising LED display.
Slim,Light Weight and Quiet

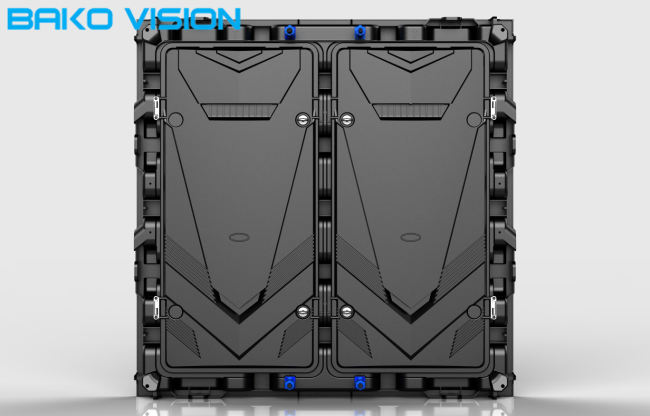

Die-casting cabinet,27-32kg per cabinet
100mm thickness
Fanless design
Both die-casting aluminum,making sure of good heat dissipation so screen can still wokr in high temperature
Fast Installation and Easy Maintenance
Fast lock system design guarantees a quick and easy installation
Front and rear access
Die-casting hanger,strong lock and good materials make sure of screen's strongness and precision
Versatile Dural Purpose Design
Cabinet can be reclined between 0-30 degree to ensure the best angle for audience and camera
Adding with fround adjustable bracket and protection foam bumper can be transformed to be perimeter display.
Smart and Variable
One standard chassis 1024mm*768mm,covering pitches from 2.6mm to 10.6mm
Suitable brightness adjustable for outdoor day and night
Deep black levels,contrast ratio 4000:1
Both module frame and cabinet can be made of die-casting aluminum,much reduce the screen weight
Outdoor LED Screen Parameters
| BDF-2 | BDF-3 | BDF-5 | BDF-6 | |
| Physical Pitch | 2.6mm | 3.2mm | 5.33mm | 6.4mm |
| Pixel Configuration | SMD1617 | SMD1617 | SMD1921 | SMD2727 |
| Pixel Density | 141,376 pixels/sqm | 97,656 pixels/sqm | 35,200 pixels/sqm | 24,414 pixels/sqm |
| Module Dimensions (W*H)(mm) | 512*256 | 512*256 | 512*256 | 512*256 |
| Panel Dimensions(mm) | 1024*768*100 | 1024*768*100 | 1024*768*100 | 1024*768*100 |
| Physical Resolution of Modules(W*H) | 192*98 | 160*80 | 96*48 | 80*40 |
| Physical Resolution of Panel(W*H) | 394*294 | 320*240 | 192*144 | 160*120 |
| Panel Matetial | Die-casting | Die-casting | Die-casting | Die-casting |
| Single Cabinet Weight | 35kg | 35kg | 35kg | 35kg |
| Processing | 16bit | 16bit | 16bit | 16bit |
| Contrast Rario | 4000:1 | 4000:1 | 2000:1/4000:1 | 2000:1/4000:1 |
| Average Power Consumption | 240W/panel | 240W/panel | 240W/panel | 240W/panel |
| Max Power Consumption | 600W/panel | 600W/panel | 600W/panel | 600W/panel |
| Brightness | >2,500nits | >4,000nits | >4,500nits | 5,500nits |
| Refresh Rate | >1,920Hz | >1,920Hz | >1,920Hz | >1,920Hz |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° | 140° | 140° |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating(Front/Rear) | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 |
Bako Vision Service
FAQ
Q1:Are you factory or a trade company?
A1:We are a factory owing professional R & D department and production lines with 14 years of experience in led display.
Q2:Why I should choose your company ?
A2:We have been focusing on the development of led svreen and have a good reputaion in the market.We strictly follow up the requirements of customers,and are committed to achieve a win-win situation with customers.Whatever the products stability or service we will do better and better.
Q3: What's the warranty of your LED Display ?
A3: 2-5 years warranty .and 100000 hours life span.During the warranty period ,we can offer you related after-sales service. Our professional engineering team are always ready to answer your questions.
Packaging and Shipping
About Us
LED Vision Technology Limited , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
