Taxi Top Led Display Screen Single / Double Sided 3G 4G WIFI GPS Sign Aluminum
Taxi Top Led Display Screen Single or Double Sided 3G,4G,WIFI,GPS Led Sign
BT / Specification
| BT-2 | BT-3 | BT-5 | |
| Physical Pitch | 2.5mm | 3mm | 5mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2727 |
| Pixel Density | 160,000 pixels/sqm | 111,111 pixels/sqm | 40,000 pixels/sqm |
| Module Dimensions(W*H)(mm) | 160*160 | 192*196 | 160*160 |
| Screen Size(mm) | 960*320 | 768*288 | 960*320 |
| Screen Resolution | 384*128 | 256*96 | 192*64 |
| Physical Resolution of Module(W*H) | 64*64 | 64*32 | 32*32 |
| Frame Size(mm) | 1,100(L)*410(H) 164(bottom)/99(top) | 820(L)*390(H) 170(bottom)/99(top) | 1,100(L)*410(H) 164(bottom)/99(top) |
| Panel Material | Aluminum | Aluminum | Aluminum |
| Screen Weight | 26 kg | 15 kg | 23 kg |
| Processing | 16 bit | 16 bit | 16 bit |
| Contrast Ratio | 4,000:1 | 4,000:1 | 2,000:1 |
| Average Power Consumption | 180 W/Set | 80 W/Set | 150 W/Set |
| Max Power Consumption | 480 W/Set | 250 W/Set | 450 W/Set |
| Refresh Rate | >1,920Hz | >1,920Hz | >1,920Hz |
| Brightness | 5,000nits | 3,500nits | 5,500nits |
| Driving Method | 1/16 | 1/16 | 1/8 |
| Servicing | Back | Back | Back |
| IP Rating | IP65 | IP65 | IP65 |

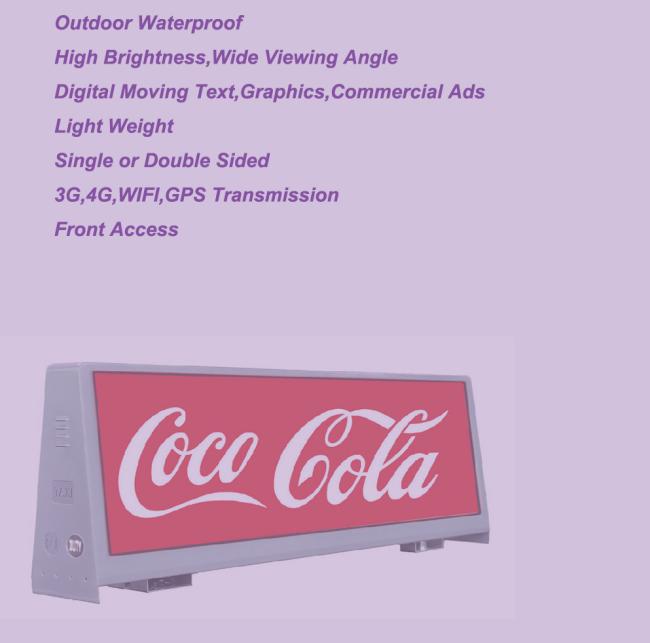

IP65 High Protection
Waterproof and dustproof
For all weather conditions
High Brightness
3500-7000 nits brightness
High bright SMD
High efficiency PSU

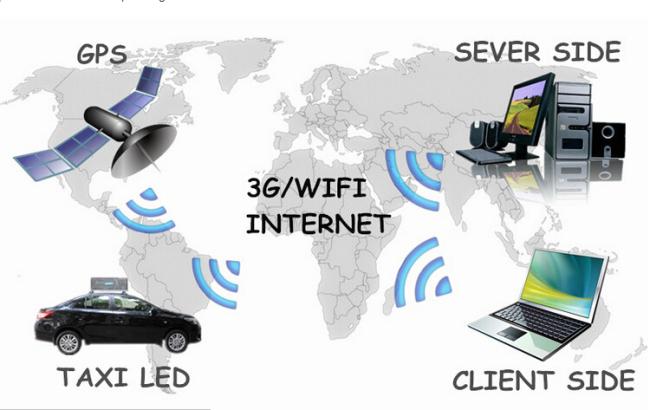

Multiple Communication Methods
3G,4G,WIFI,GPS,USB,cable transmission
Built-in Delay Protector
The Built-in delay protector prevents the screen from over-temperature,over-current,over-voltage impacting when the car starts.
Our advantage
1. Rich experience: established in 2005; familiar with technical and material about LED display.
2. Absolute OEM service: providing the most suitable solution for you according to your different demands (such as quality, price and etc.). At least 3 different types in one material are provided for your choice , and with the lowest-cost custom service.
3. Powerful R&D ability: excellent engineers are constantly developing new products and improving them.
4. Good quality:All products have passed CE, ROHS, FCC certification.
5. Thoughtful service: we always serve you heart and soul, striving to make our products meet your demands in maximum degree.
We guarantee all our LED products for 2 years and provide lifetime maintenance charging only for raw materials. We provide an excellent after-sale service, which contains free training, free CAD drawings, for more convenience and free consultation lifetime.

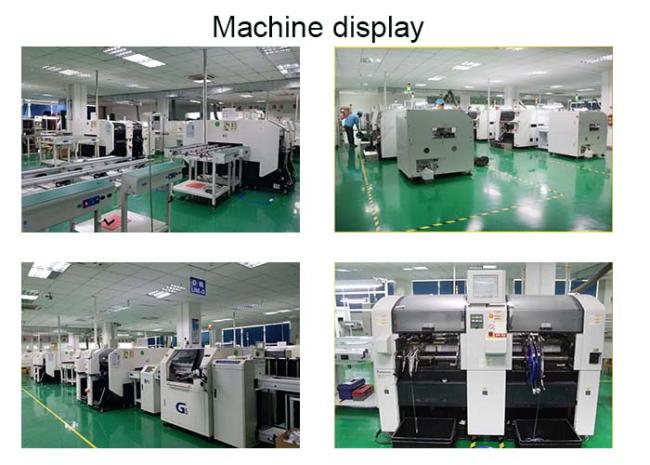

Our Company
LED Vision Technology Limited , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
