Outdoor Full Color Rental Led Display Screen Waterproof High Brightness SMD1921
Outdoor Full Color Rental Led Screen Waterproof High Brightness For Events
BOR-I HD Outdoor Rental LED Display
Strength and Beauty, Outdoor Rental LED Display
TUV Certificated and Reddot Awarded
Panel Dimension 500mmx500mm or 500mmx1000mm
Curvilinear, Concave, Convex
Front and Rear Access
Feature
Outdoor Rated
→ Outdoor waterproof with IP65
→ Suitable brightness adjustable for outdoor day and night
→ Deep black level, the contrast ratio is 4000:1
Fast Installation and Easy Maintenance
→ Truss hanging and ground support both available
→ Cable-less between modules
→ Front and rear access
→ Tools free installation
Slim, Light Weight and Quiet
→500mm×500mm or 500mm×1000mm options
→ 80mm thickness
→ Fanless design
Superior Electrical Features
→The Dual signal backup port
→ UI LCD monitoring display indicates the status
Specifications:
| BOR-I-3 | BOR-I-4 | BOR-I-5 | BOR-I-6 | |
| Physical Pitch | 3.91mm | 4.81 mm | 5.95mm | 6.25 mm |
| Pixel Configuration | SMD 1921 | SMD 2525 | SMD 2525 | SMD 2727 |
| Pixel Density | 65536 pixels/m² | 43264 pixels/m² | 28224 pixels/m² | 25600 pixels/m² |
| Module Dimensions (W × H) (mm) | 250 × 250 / 250×500 | 250 × 250 / 250×500 | 250 × 250 / 250×500 | 250 × 250 / 250×500 |
| Panel Dimensions (mm) |
500 × 500 × 80 500 × 1000 × 80 |
500 × 500 × 80 500 × 1000 × 80 |
500 × 500 × 80 500 × 1000 × 80 |
500 × 500 × 80 500 × 1000 × 80 |
| NO .of Modules Per Panel (W × H) | 2 × 2 | 2 × 2 | 2 × 2 | 2 × 2 |
| Physical Resolution of Module (W × H) | 64×64/64×128 | 52×52/52×104 | 42×42/42×84 | 40×40/40×80 |
| Physical Resolution of Panel (W × H) | 128×128/128×256 | 104×104/104×208 | 84×84/84×168 | 80×80/80×160 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum |
| Single Cabinet Weight | 9/ 15 kg/panel | 9/ 15 kg/panel | 9/ 15 kg/panel | 9/ 15 kg/panel |
| Processing | 16 bit | 16 bit | 16 bit | 16 bit |
| Colors | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000: 1 | 4,000: 1 | 4,000: 1 | 4,000: 1 |
| Average Power Consumption | 75 /150 W/panel | 75 /150 W/panel | 75 /150 W/panel | 75 /150 W/panel |
| Max Power Consumption | 225 /550 W/panel | 225 /550 W/panel | 225 /550 W/panel | 225 /550 W/panel |
| Operating Temp/Humidity | -20ºC - 60ºC / 10% - 60% | -20ºC - 60ºC / 10% - 60% | -20ºC - 60ºC / 10% - 60% | -20ºC - 60ºC / 10% - 60% |
| Storage Temp/Humidity | -30ºC - 60ºC / 10% - 60% | -30ºC - 60ºC / 10% - 60% | -30ºC - 60ºC / 10% - 60% | -30ºC - 60ºC / 10% - 60% |
| Refresh Rate | >1,920 Hz | >1,920 Hz | >1,920 Hz | >1,920 Hz |
| Brightness | >6000 nits | >6000 nits | >6000 nits | >6000 nits |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Vertical Viewing angle | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs |
| Max Stacking | 20/10 | 20/10 | 20/10 | 20/10 |
| Max Hanging | 20/10 | 20/10 | 20/10 | 20/10 |
| Servicing | Front / Rear | Front / Rear | Front / Rear | Front / Rear |
| IP Rating (Front/Rear) | IP 65/ IP 54 | IP 65/ IP 54 | IP 65/ IP 54 | IP 65/ IP 54 |
| Certification | CCC, CE, ETL,FCC | CCC, CE, ETL, FCC | CCC, CE, ETL,FCC | CCC, CE,ETL,FCC |
About us:
LED Vision Technology Limited , started in Shenzhen in 2005, a world-class manufacturer of technologically advanced LED displays, focusing on professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work
of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION main markets are among America, Europe, the Middle East, and Asia, all of our products are certificated by RoHS, CCC, CE, FCC, ETL, UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied on the long term partnership with variety channel customers over 120+ countries.

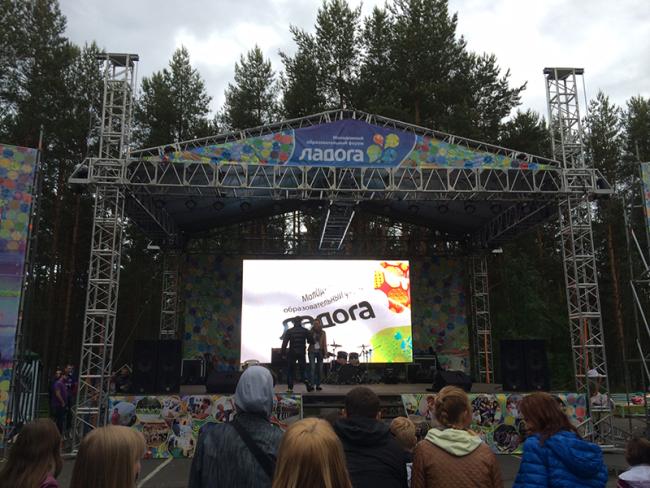

Case
Project Accomplished: Nov 2017
Location: Russia
Screen Dimension: 46m²
Product Model: BOR-6, pixel pitch 6.25mm Outdoor LED Display Screen
FAQ:
Q1. Are you trading company or manufacturer?
A: We are a professional led display manufacturer OVER FOURTEEN YEARS.
Q2. What's your payment term?
A: T/T, Western Union, L/C
Q3. Do you provide samples ? is it free?
A: We can supply the sample if we have ready parts in stock
but the customers have to pay the sample cost and the courier cost.
Q4. How about your delivery time?
A: Generally, the sample needs 5-7 days, 15-25 working days for batch order
Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship goods by DHL, UPS, or FedEx . It usually takes 3-5 days to arrive. Air Freight and sea shipping are also optional.
Q6. Do you offer a guarantee for the products?
A: Yes, we offer 2 years warranty for our products, we have a warehouse in the USA and our engineer stay in the USA to
deal with after-sales and provide technical support.
Q7: How can I get technical support?
A: We will train in our factory and send video for showing. The training includes system use, system maintenance,
and equipment protection. We often attend exhibitions around the world every year, so we can visit you if you need at that time.
