Seamless Indoor Rental Led Display HD P2.6mm 1200 Nits Stage Die Casting Aluminum

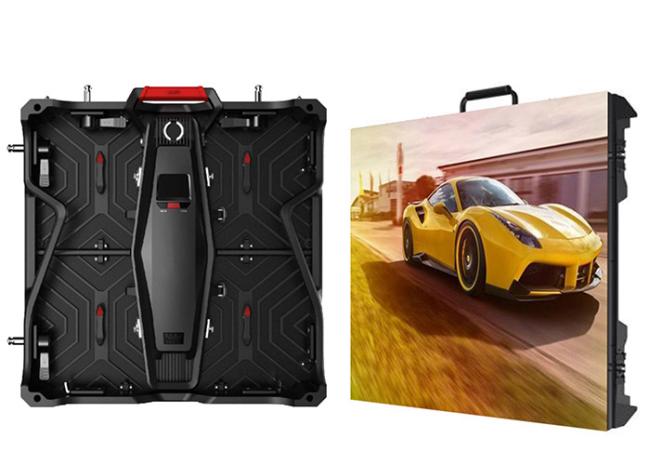

HD P2.6mm Stage Die-casting Aluminum Seamless Indoor Rental Led Display
1. High refresh rate with NOVA control system,no scaning line when photographed
2. Ultra-thin and Super-light: only 8Kg for 500x500mm panel , 14 KG per cabinet of 500mmW*1000mm
3. Good thermal design, excellent heat dissipation even no fan installation
4. Seamless connection.Signal backup and power backup.

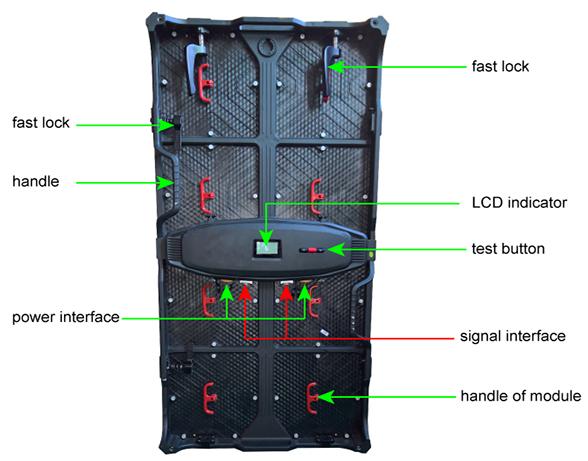

5. Fast locks design, cabinets can be easily assemblied in 7 seconds, it can reduces the labor cost.
Parameter
| BIR-III-2X | |
| Physical Pitch | 2.6mm |
| Pixel Configuration | SMD2121 |
| Pixel Density | 147,456 pixels/m² |
| Module Dimensions(W*H)(mm) | 250*250 |
| Panel Dimensions(mm) | 500*500*80/500*1000*80 |
| NO. of Modules Per Panel (W*H) | 2*2/2*4 |
| Panel Material | Die-Casting Aluminum |
| Colors | 281Trillion |
| Processing | 16 Bit |
| Physical Resolution of Module(W*H)(mm) | 96*96 |
| Physical Resolution of Panel(W*H)(mm) | 192*192/192*384 |
| Single Cabinet Weight | 8/14kg/panel |
| Average Power Consumption | 64/128W/panel |
| Max Power Consumption | 192/384W/panel |
| Brightness | >1200 nits |
| Viewing Angle | H:160°/ V:140° |
| Operating Temp/ Humidity | -10ºC-60ºC/10%-60% |
| Storage Temp/ Humidity | -30ºC-60ºC/10%-60% |
| Expected Lifetime | 100,000 Hrs |
| Servicing | Front/Rear |
| IP Rating(Front/Rear) | IP 40/IP21 |
| Max Stacking | 20/10 |
| Max Hanging | 20/10 |
| Refresh Rate | >1,920 Hz |
Product features
Pruduct details

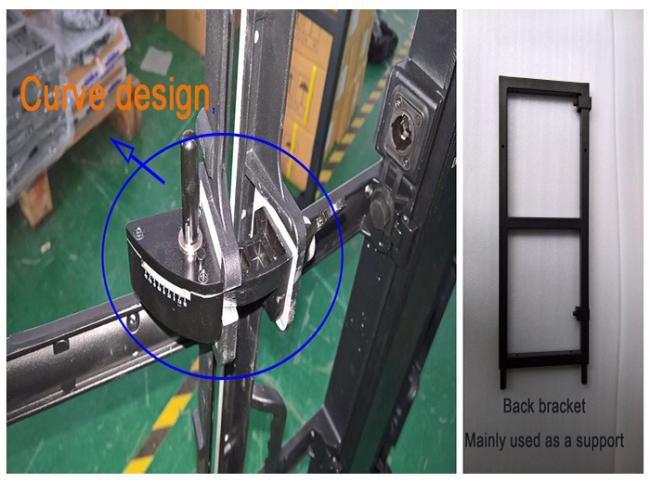

Curve design, 0°-10° concave and convex degree.

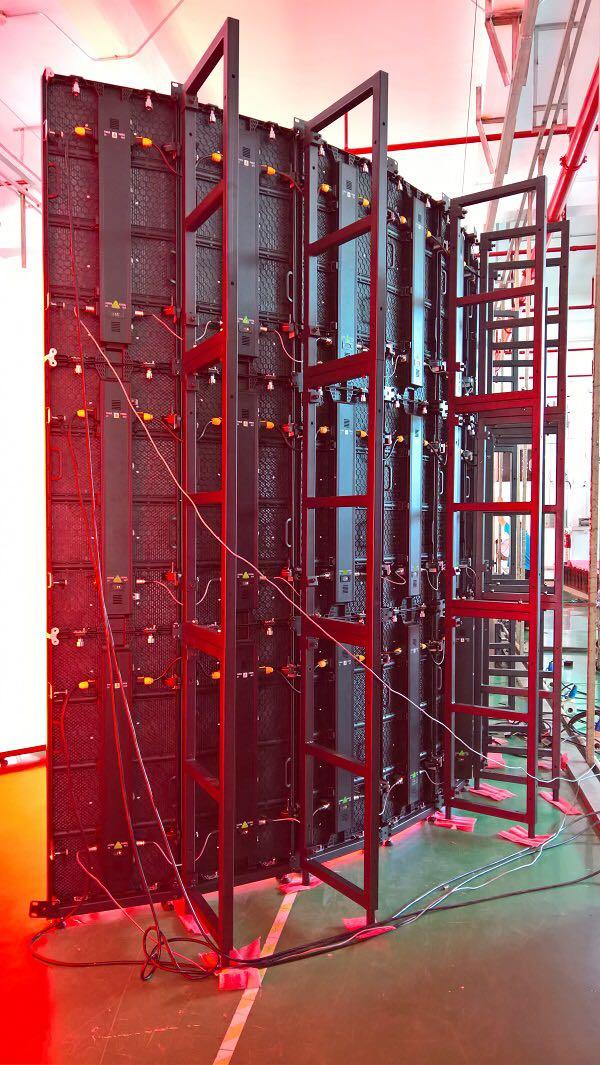

Back bracket, mainly used as a support

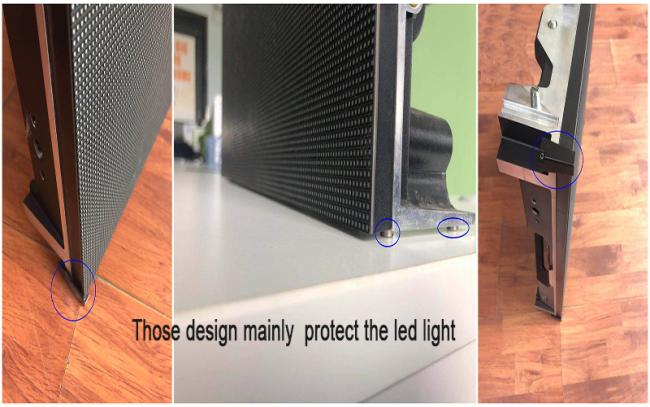

Many detail design mainly protect the led light.
High refresh rate
Our led display with 16 bit graycale, better than normal diaplay's graycale, picture vivid and vivid.

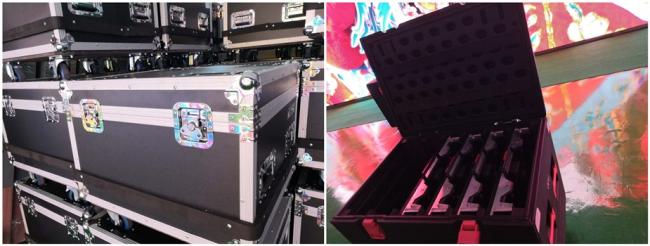

Packing / Freight case
Application Widely

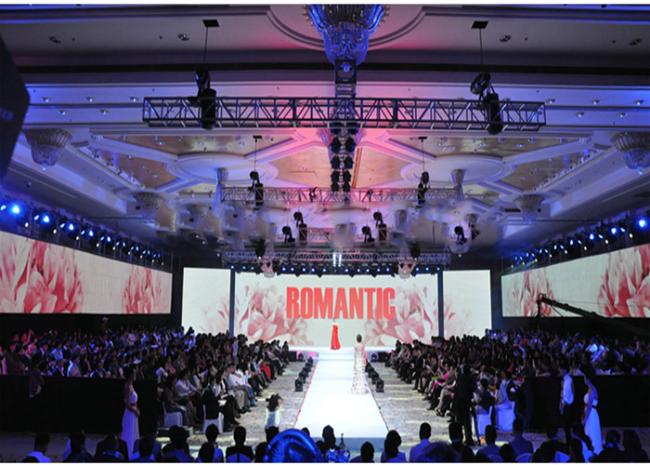

Widely use Stage rental, shopping mall,DJ touring, theme resort, car show, fashion store, house of worship,night club and so on.

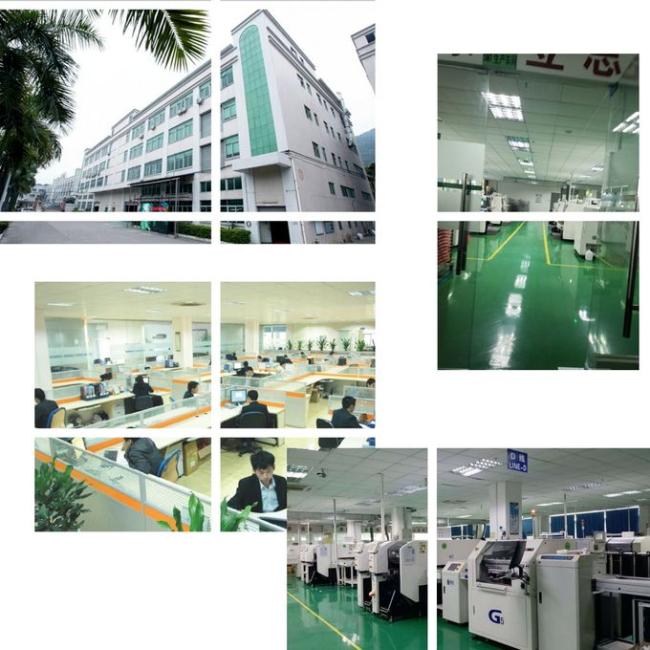

About us
LED Vision Technology Limited , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
Why choose BAKOVISION?
1. Strict processing procedures makes perfect product. Every production procedure, we have QC to check the quality;
2. more than 10 years experience in led display industry, we have most talented engineers to design best products for our clients;
3. Top quality machines to make top quality products;
4. Most competitive price make our led displays are afordable;
5. "Customer first" is our belief. We promise to offer best products with good service for our clients
