P1.92mm Led Video Wall Screen Ultra Fine Pitch High Color Fidelity SMD1010
P1.92mm Ultra Fine Pitch High Color Fidelity SMD1010 Indoor LED Panel
Product Details
1. Fully front design,Make it more conventience and save space.
2. Ultra-thin and Super-light: only 4.6Kg for 400*300mm panel

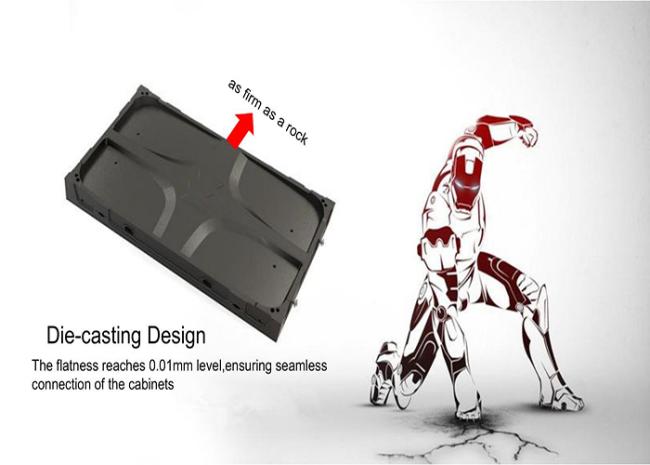

3.Adopting die-casting aluminum improves the heat dispersion, NR20 noise free.
4. User: SMD1010 series products lighter, for maintenance, assembly, transport and later brought convenient and time-saving.
5. Simple cabinet design, ultra thin ,seamless and easy for maintenance
Parameter
| UHD-1.9 | |
| Physical Pitch | 1.92mm |
| Pixel Configuration | SMD1010 |
| Pixel Density | 270,000 pixels/m² |
| Module Dimensions(W*H)(mm) | 200*150 |
| Panel Dimensions(mm) | 400*300 |
| NO. of Modules Per Panel (W*H) | 2*2 |
| Panel Material | Die-Casting Aluminum |
| Colors | 281Trillion |
| Processing | 16 Bit |
| Physical Resolution of Module(W*H)(mm) | 104*78 |
| Physical Resolution of Panel(W*H)(mm) | 208*156 |
| Single Cabinet Weight | 4.6 kg/panel |
| Average Power Consumption | 220W/panel |
| Max Power Consumption | 800W/panel |
| Brightness | >800 nits |
| Viewing Angle | H:160°/ V:140° |
| Operating Temp/ Humidity | -20ºC-50ºC/10%-90% |
| Storage Temp/ Humidity | -40ºC-60ºC/10%-90% |
| Expected Lifetime | 100,000 Hrs |
| Servicing | Front/Rear |
| IP Rating(Front/Rear) | IP 40 |
| Max Stacking | 20/10 |
| Max Hanging | 20/10 |
| Refresh Rate | >1,920 Hz |
Pruduct details
Designed according to ergonomics, 16:9 screen ratio, 2K 4K 8K large screens easily realized, high gray scale and high refresh rate in low brightness, perfect viewing experience

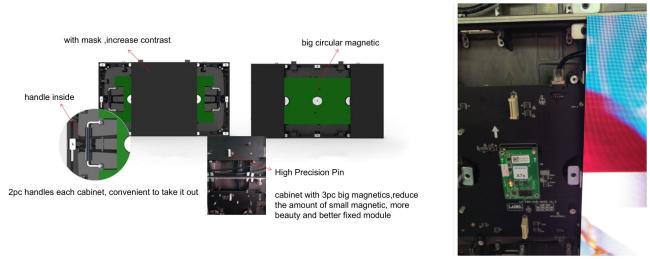

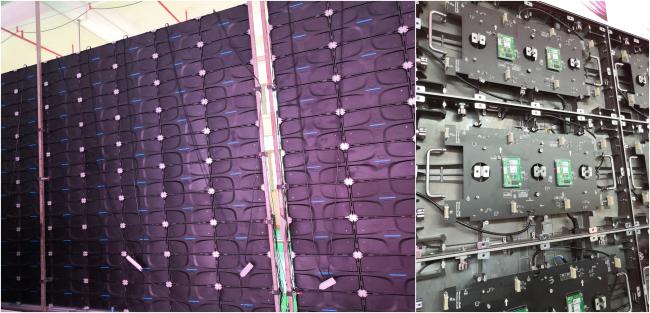

Module structure easy to realize front-access maintenance, installation by fixing magnets, easy and convenient dismantling of modules without the use of tools (only needs 30s), unique protective structure which protect modules from damaging
Viewing angle
Horizontal 160° / Vertical 140° to reach a wider audience.

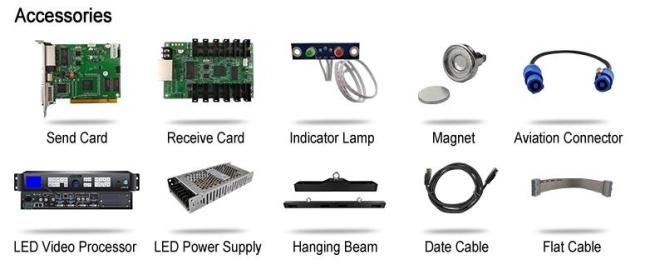

Detail accessories
