Super Thin Indoor Rental LED Display SMD 3528 High Resolution Full Color P6.25mm
SMD 3528 High Resolution Full Color P6.25mm Indoor Led Panel/ Video Board

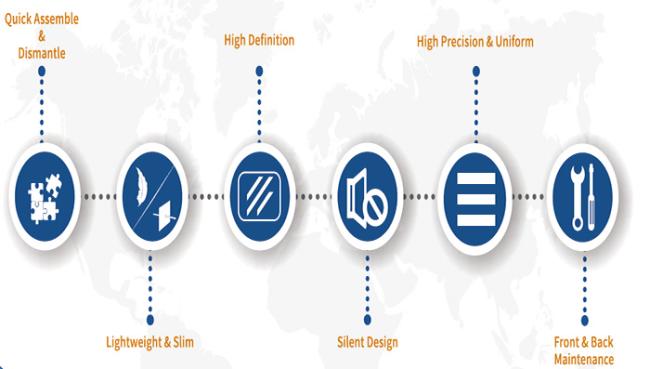

Features
1. Screen Ping: surface flatness error less than 0.2mm, the effective elimination of mosaic.
2. Wide viewing angle color really,16-bit grayscale processing, rich colors and vivid colors, realistic images, soft visual effects, no flicker, more eye protection.
3. Super thin, light weight,only 7Kg/pcs, with handles and fast locks, easy to install.
4. Die-casting aluminum body, light weight for easy transportation and high accuracy installation.
5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.
Parameter
| BIR-I-6 | |
| Physical Pitch | 6.25mm |

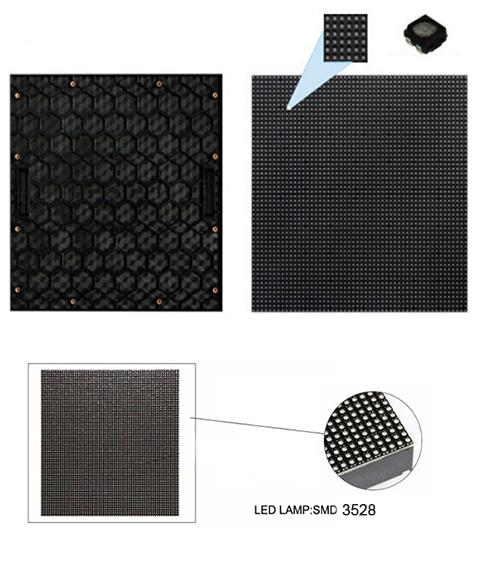

| Pixel Configuration | SMD 3528 |
| Pixel Density | 25,600 pixels/m² |
| Module Dimensions(W*H)(mm) | 250*250/250*500 |
| Panel Dimensions(mm) | 500*500*80/500*1000*80 |
| NO. of Modules Per Panel (W*H) | 2*2 |
| Panel Material | Die-Casting Aluminum |
| Colors | 281Trillion |
| Processing | 16 Bit |
| Physical Resolution of Module(W*H)(mm) | 40*40/ 40*80 |
| Physical Resolution of Panel(W*H)(mm) | 80*80/ 80*160 |
| Single Cabinet Weight | 7/13kg/panel |
| Average Power Consumption | 60/120W/panel |
| Max Power Consumption | 110/400W/panel |
| Brightness | 900-1200 nits |
| Viewing Angle | H:160°/ V:140° |
| Operating Temp/ Humidity | -10ºC-60ºC/10%-60% |
| Storage Temp/ Humidity | -30ºC-60ºC/10%-60% |
| Expected Lifetime | 100,000 Hrs |
| Servicing | Front/Rear |
| IP Rating(Front/Rear) | IP 40/IP21 |
| Max Stacking | 20/10 |
| Max Hanging | 20/10 |
| Refresh Rate | >1,920 Hz |
Pruduct details
High permeability, elegant sound and shadow
With the fence type design and high quality SMD technology, LED rental displays show its high penetration rate. Which fully meet the video stage lighting, ventilation and sound transmission demand to create perfect video effect.

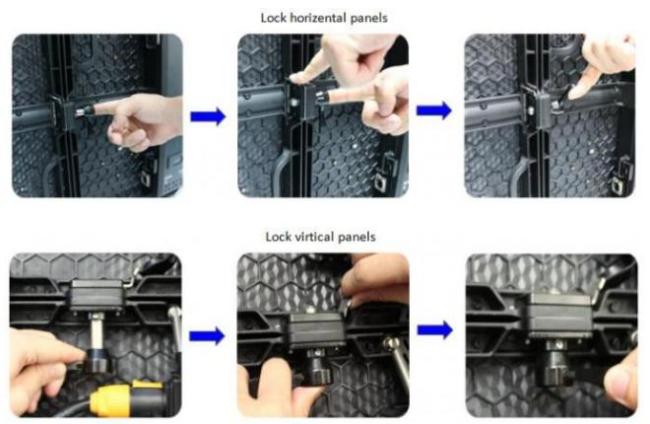

Fast lock design, it can reduces the labor cost.
Installation: easier and faster lock design, hanging installation.
Fast assembling & disassembling
No tools are required for installation of screen.
500*500/ 500*1000 cabinet,80mm tickness, 7kg per cabinet
Fanless design
Mute and stability: With excellent heat dissipation performance without fan assisted thermal conductivity, no noise, low power consumption and high stability.
Packing detail
Wooden case/ Freight case
About us
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
Our Promise
24 hours response for your inquiry.
7 days per week to help you.
365 days after serbice support.
All lifetime guarantee and free charge within two years.
OEM&ODM, CUSTOMIZED DESIGN SERVICE,
Patent right protection and distributorship protection.
