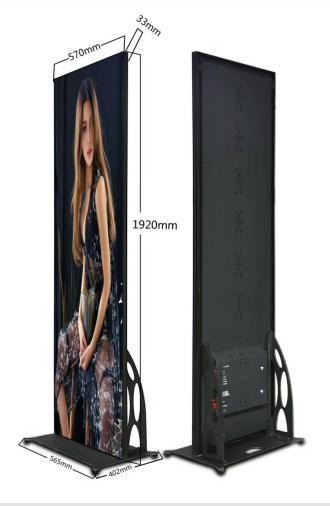

Wheel Poster Indoor LED Poster Aluminum Bottem Sheel IP40 1/28 Dynamic Scan
Wheel Poster Aluminum Bottem Sheel Led Display Screen With WIFI, USB
1,Ultra slim.
The tickness of Our this series poster screen only 35mm. While others 45mm.

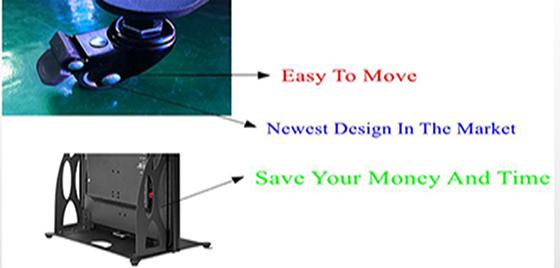

2, Wheel design
Save labor and transportation costs, Enhance customer experience.
Easy to move, New design in the market.

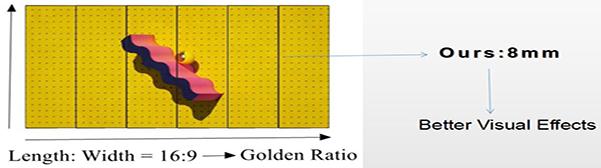

3, Small gap.
Ours only 8mm,etter Visual Effects.Most of the market is 10mm.
4.Aluminum sheel.
Compare with plastic sheel , Aluminum not easy to be deformed and have a good heat dissiption.
Specifications
| BP-2 | |
| Physical Pitch | 2.5mm |
| Pixel Configuration | SMD2020 |
| Pixel Density | 160,000pixels/m² |
| Module Dimensions(W*H)(mm) | 280*210 |
| Panel Dimensions(mm) | 572*1920*35 |
| NO. of Modules Per Panel (W*H) | 2*9 |
| Panel Material | Aluminum |
| Colors | 281 trillion |
| Sigle Cabinet Weight | 32kg |
| Processing | 16 bit |
| Refresh Rate | >=2800 Hz |
| IP Rating | IP40 |
| Viewing Angle | 160°/140° |
| Expected Lifetime | 100,000 Hrs |
| Operating Temp/Humidity | -10ºC-60ºC/10%-60% |
| Storage Temp/Humidity | -30ºC-60ºC/10%-60% |
| Physical Resolution of Module(W*H)(mm) | 112*84 |
| Physical Resolution of Whole Set(W*H)(mm) | 228*768 |
| Avg/ Max Power Consumption | 250/750W/Set |
| Servicing | Front |
| Driving Method | 1/28 Dynamic Scan |
| Frame Rate | 60 fps |
Products detail

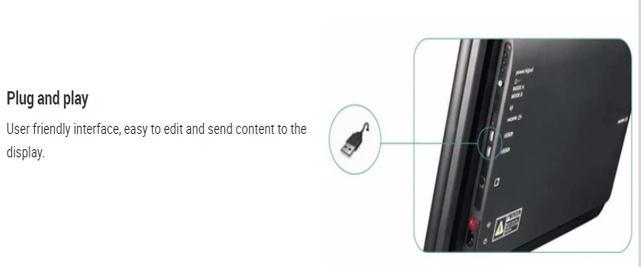

Plug and play
User friendly interface, easy to edit and send content to the display.
Smart mangement
Easy upload content via WIFI, USB, HDMI, and manage hundreds of displays with one device

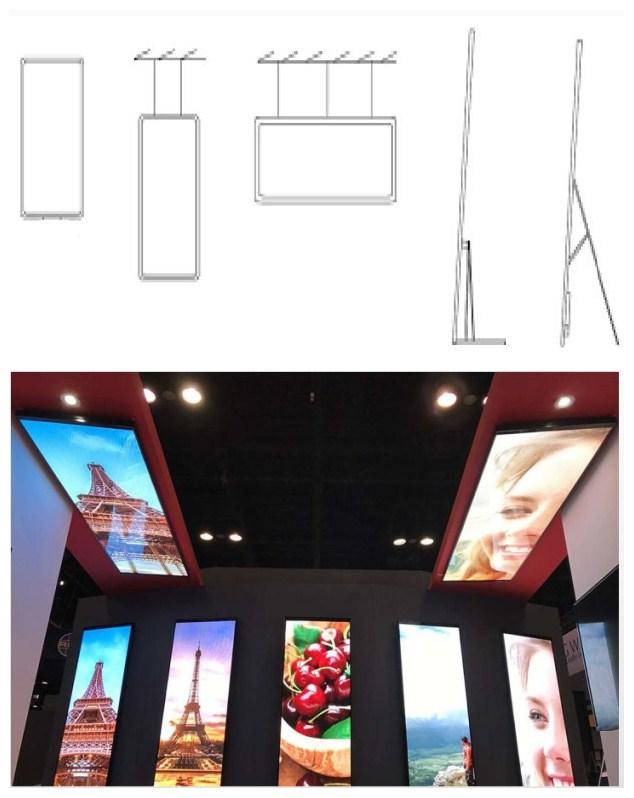

Variable Installation Ways and application
1. Wall Mounted
2.Hanging
3. Bracket Standing
4.Ground Standing / Multi-Screen Cascade

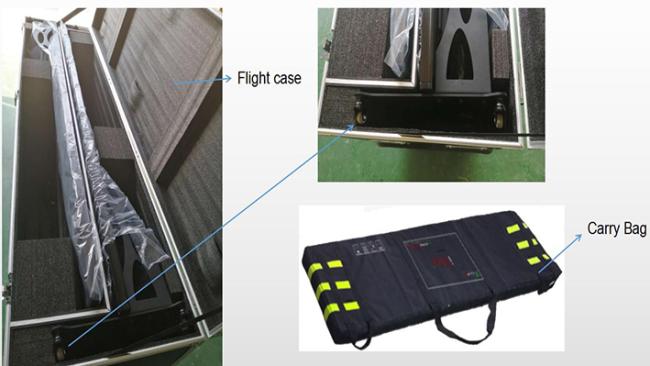

Packing
Flight case or Carry bag
Two pieces in one Flight case, Bottem shell have installed, save labor cost.
Carry bag easy to take.

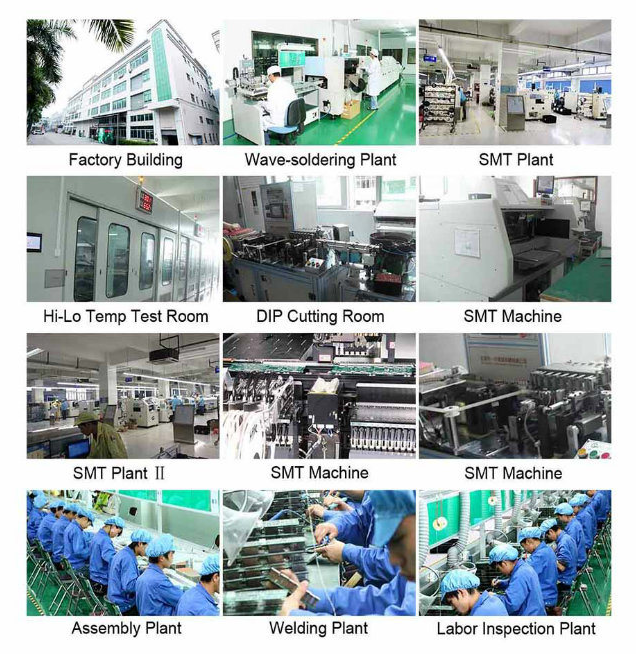

About us
LED Vision Technology Limited , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
Our Service
1) Reply your inquiry in 24 working hours.
2) Customized design is available,OEM & ODM are welcomed.
3) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
4) Special discount and protection of sales area provided to our distributor.
5) Warmly welcome your visit in our company if available.
6) . Warranty
(A) We provide warranty of all components for 24 months. During this time, we will replace or repair our goods for free if there is something wrong with them.
(B) We will provide maintenance for a lifetime and charge for the raw materials only.
7) Technology Training
(A) We provide the technology training for free, which contains the operation training and maintenance training in the factory.
(B) We will send our engineers to your country by negotiation.
