P4.81mm Waterproof Outdoor Digital LED Screen Panel Full Color For Advertising
P4.81mm Waterproof Outdoor Digital LED Screen Panel Full Color For Advertising
Special Features
( Outdoor fixed LED display for advertising)
2. Energy saveing design and good performance in color uniformity
3. High color uniformity and clear image can bring you a vivid audio visual effect;
4. Provided with convex shaped, concave shaped and wave Shaped screens
5. Good quality raw material ,accurate technique and careful inspection insures the high quality of led display.
Specifications
| BOF-4 | |
| Physical Pitch | 4.81mm |
| Pixel Configuration | SMD 2727 |
| Pixel Density | 43,264 pixels/m² |
| Module Dimensions(W*H)(mm) | 250*250 |
| Panel Dimensions(mm) | 1000*1000*150 |
| NO. of Modules Per Panel (W*H) | 4*4 |
| Panel Material | Steel/ Aluminum |
| Colors | 281 trillion |
| Brightness | >6,500 nits |
| Weight (kg/m²) | 65/45 |
| Processing | 16 bit |
| Refresh Rate | >1920 Hz |
| IP Rating | IP65/ IP54 |
| Viewing Angle | V:160 degree H: 140 degree |
| Expected Lifetime | 100,000 Hrs |
| Operating Temp/Humidity | -20ºC-50ºC/ 10%-90% |
| Storage Temp/Humidity | -20ºC-50ºC/ 10%-90% |
| Physical Resolution of Module(W*H)(mm) | 52*52 |
| Physical Resolution of panel(W*H)(mm) | 208*208 |
| Avg./ Max. Power Consumption | 360/900W/ panel |
| Servicing | Front/Rear |
About Product
Common usage for different batch of LED modules
Different batch of LED modules can use together, no obvious chromatic.

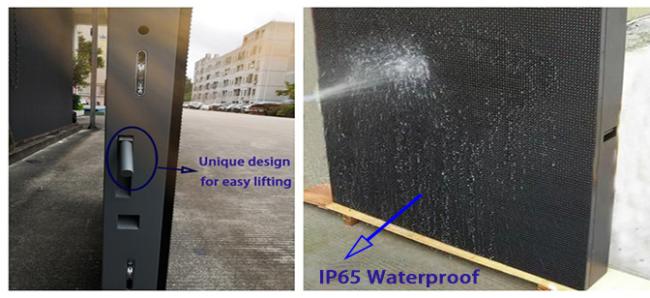

1. Cabinet design lightweight: side handle for easy carrying and assemble job.
2. High IP rating: IP65 durable for any weather condition
High Contrast ratio: above 2000:1 .very high level to ensure a vivid image of our LED display screen system
High Refresh rate: >1920HZ, the high resolution to keep good video effect.
Can be pre-installed and pre-maintenance

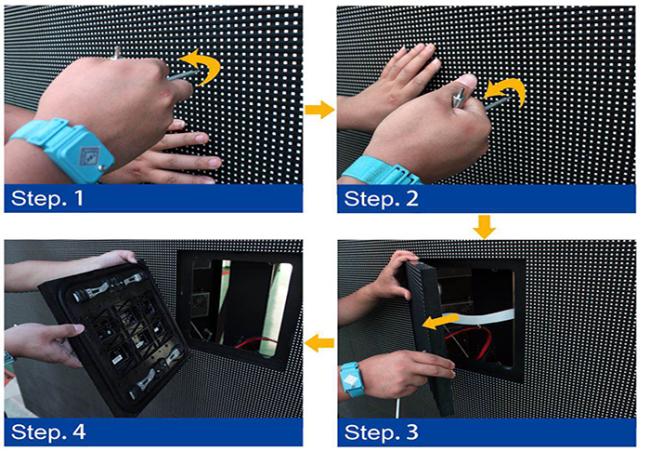

Front access, Easy maintenance.

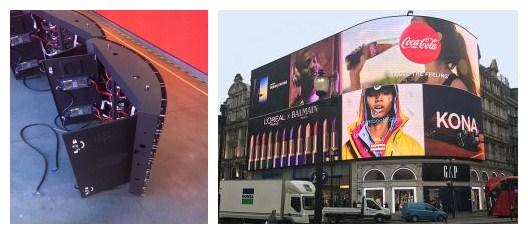

Curve design, the steel or Iron cabinet can customized by users.
Stable cabinet, stronger without distortion, anti-rust.

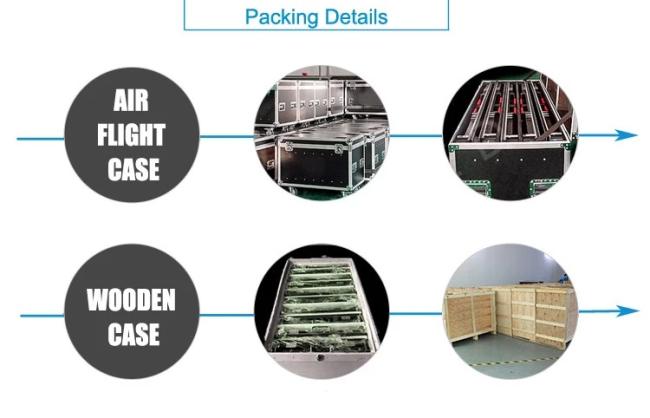

Packing details / Flight case or Wooden case.
Our company
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
After-sale service:
1. Our products have two years warranty service ,lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. We offered training including operating and maintenance of our products to our clients.
4. In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.
