P5mm Outdoor LED Display Taxi Billboard Digital Moving Full Color Light Weight For Fixed
P5mm Outdoor LED Display Taxi BillboardDigital Moving Full Color Light Weight for Fixed
Taxi Top Advertising Display,
Digital Moving Billboard.
3G,4G,WIFI,GPS Transmission
Parameter
| BT-2 | BT-3 | BT-5 | |
| Physical Pitch | 2.5 mm | 3 mm | 5 mm |
| Pixel Configuration | SMD 2121 | SMD 2020 | SMD 2727 |
| Pixel Density | 160,000 pixels/m² | 111,111 pixels/m² | 40,000 pixels/m² |
| Module Dimensions (W × H) (mm) | 160 × 160 | 192 × 196 | 160 × 160 |
| Screen Size (mm) | 960 × 320 | 768 × 288 | 960 × 320 |
| Screen Resolution | 384 × 128 | 256 × 96 | 192 × 64 |
| Physical Resolution of Module (W × H) | 64 × 64 | 64 × 32 | 32 × 32 |
| Frame size (mm) | 1,100 (L) x 410 (H) 164 (bottom) / 99 (top) |
820 ( L) x 390 (H) 170(bottom) / 99 (top) |
1,100 ( L) x 410 (H) 164(bottom) / 99 (top) |
| Panel Material | Aluminum | Aluminum | Aluminum |
| Refresh Rate | 1,920 Hz | 1,920 Hz | 1,920 Hz |
| Brightness | 5,000nits | 5,000nits | 5,000nits |
| Driving Method | 1/16 | 1/16 | 1/16 |
| Horizontal Viewing Angle | 160° | 160° | 160° |
| Vertical Viewing angle | 140° | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Back | Back | Back |
| IP Rating (Front/Rear) | IP 65 | IP 65 | IP 65 |
Description

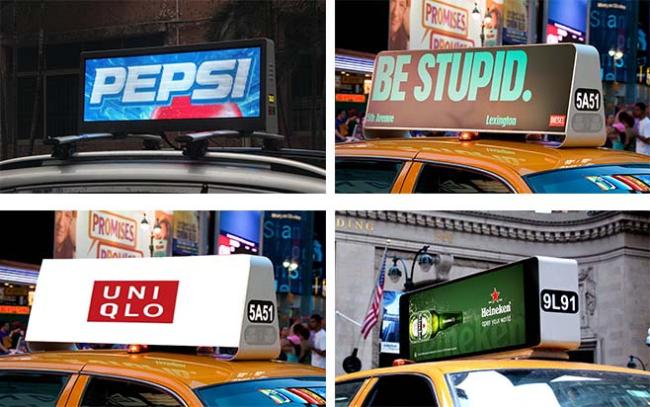

Taxi top advertising display, a digital moving billboard
The product is waterproof and dustproof, for all weather conditions
High brightness with 3500-7000 nits, work for everytime
Has multiple communication methods, 3G,4G,WIFI,GPS,USB, cable transmission etc.
The Built-in delay protector prevents the screen for over-temperature, over-voltage impacting when the car starts.

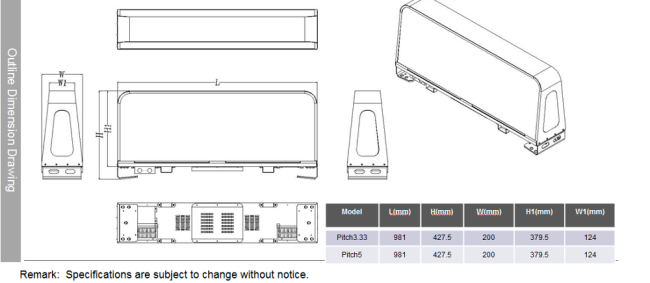

Outline Dimention Drawing
Why Choose Us
Our Service
1.Pre-sale service:
Reply enquiries in 24 hours.
Market research and forecast for customer.
Provide unique and professional solutions based on customer's requirement
Data sheet and samples offer.
Other services, such as special packing design, factory visiting and so on.
2.In-sale service:
Tracking report in producing.
Quality test report for every order.
Photos and videos as per customer's requirement.
Free spare parts.
3.After-sale service:
Lifetime free maintenance and upgrade.
Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
Customer satisfaction tracking report.
Free technician training.
Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
Special service for big project, such as stadium, exhibitions, squares and so on.
About us!
Shenzhen BAKO VISION Technology Co.,Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, is SHENZHEN BAKO LTD holding end professional customers among domestic and overseas markets.
Do not be hesitate to contact us if you have any quiry!
FAQ
Q1. Do you provide samples?is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q2.How to order?
A:Please send us your purchase order by Email or we can make you proforma invoice under your request.
We need to know the following information for your order before sending you PI.
1)Product information-Quantity,Specification(Size,Material,Technological if needed and Packing requirements etc.
2)Delivery time required.
3)Shipping information-Company name,Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if there's any in China.
Q3. Do you offer guarantee for the products?
A: Yes,we offer 2-5 years warranty to our products.
