1200 Nits Brightness Indoor Rental LED Display Full Color With Nationstar LED Lamp
1200 Nits Brightness Indoor Rental LED Display With Nationstar LED Lamp
Description
BIR-III is our most high cost performance product, curve-able, 500mmx500mm and 500mmx1000mm compatible, fully front accessible.
All electronics and components are using class A rank to match up all EU standards, while price is designed for high cost effective for those resellers and end users who need money back fast.
Products features
1.Meanwell brand power supply, saving energy and high efficiency. power supply and receiving cards can be replaced separately and quickly, even in 1 second.
2. Module standardized design, optional of 500*500mm or 500*1000mm cabinet size.
3. High-performance PCB board substrate with strict technology process ensure perfect flatness performance, showing the most real and brilliant colors.
4.Light weight,slim body,easy and fast inatallation,flexible and high brightness, suitable for flow shows, convenient in transporting and replace

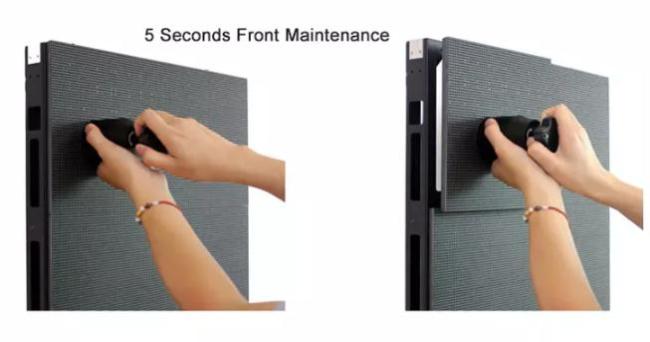

5. Easy installation & Maintenance
Special structural design that helps you to install the screen on ground without any tools.
You can remove the modules diagonally for maintenance easily.
Parameter
| BIR-III-2.97 | BIR-III-3.91 | BIR-III-4.81 | |
| Physical Pitch | 2.97mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2121 |
| Pixel Density | 112,896 pixels/m² | 65,536 pixels/m² | 43,264 pixels/m² |
| Module Dimensions(W*H)(mm) | 250*250 | ||
| Panel Dimensions(mm) | 500*500*80/500*1000*80 | ||
| NO. of Modules Per Panel (W*H) | 2*2/2*4 | ||
| Panel Material | Die-Casting Aluminum | ||
| Colors | 281Trillion | ||
| Processing | 16 Bit | ||
| Physical Resolution of Module(W*H)(mm) | 84*84 | 64*64 | 52*52 |
| Physical Resolution of Panel(W*H)(mm) | 168*168/ 168*336 | 128*128/ 128*256 | 104*104/ 104*208 |
| Single Cabinet Weight | 8/14kg/panel | ||
| Average Power Consumption | 64/128W/panel | ||
| Max Power Consumption | 192/384W/panel | ||
| Brightness | 1200 nits | ||
| Viewing Angle | H:160°/ V:140° | ||
| Operating Temp/ Humidity | -10ºC-60ºC/10%-60% | ||
| Storage Temp/ Humidity | -30ºC-60ºC/10%-60% | ||
| Expected Lifetime | 100,000 Hrs | ||
| Servicing | Front/Rear | ||
| IP Rating(Front/Rear) | IP 40/IP21 | ||
| Max Stacking and Hanging | 20/10 | ||
| Refresh Rate | >1,920 Hz | ||
Pruduct details
Widely Viewing Angle.
Horizontal / Vertial : 160° / 140° , Give you great HD visual enjoyment
High gray, High Contrast
Every color's gray scale reach to 16 bit level and the contrast can be as high as 4000:1. Pictures are great and clear with vivid color.
High Refresh Rate
The refresh rate can be more than 1920Hz. It has great dynamic expressiveness.
Quality assurance
- Every production process has a special person to test 72 hours to ensure quality.
- Have professional engineers to check the quality.
- All products have passed CE, FCC, ROHS and other certifications.
- We have the local agency and you can enjoy the local service.
FAQ:
1. I would like to ask you if it's possible to have my logo on the product.
A: We hope you know that our company perfectly support customized logo service. But, we also hope you know that it's an extra-service,so a little bit extra service fee is needed.
2. How could I buy the products I need if there is no price in the website and could I get some samples first?
A: You can send your inquiry to us about the products you need,our sales will reply you within 24 hours to help you make the order.We welcome sample order to test and check quantity.
3. How to choose a proper led screen for your need?
You just need to consider three simple questions when you choose a led screen.
1.Will you use it indoor or outdoor?
2.Is it for rental usage(need to be moved from one place to another place very often) or for fixed installation (to be installed in one place forever)?
3.What is the approximate size of the whole led screen you would like to purchase?
