Digital Truck Mounted Mobile Led Display Advertising 1R1G1B Long Life Span
Digital Truck Mounted Mobile LED Display For Advertising 1R1G1B Long Life Span
Description
The products are mobile display device which popularly used for mobile trailer LED display traffic management,public notice of upcoming events like large meetings and sport events, commercial advertising LED display screen,shopping mall LED display, LED screen for mobile media.
Main features
1. High waterproof IP level
with front IP65 and back IP54, good waterproof, can be used outdoor with any weather.
2. Wide viewing angle
Big viewing angle to 140 degree at horizontal as well as 140 degree at vertical to guarantee that viewers can see clear view at every angle and there is no picture blear.
3. Multiple Communication Methods
It plays by video, graphics, animation etc, connect with PC computer or network, also can remote control with asynchronous system.
4.Good Quality of the LED lamp
Frosted black LED and light absorbing corrugated mask,make the screen can show vivid images even in bright environment
5. Both for Ads and Events:
It's Industry's first mobile truck that equipped with giant LED video display and printed sign on the side and back of the truck. This will provide you a flexibility to provide moving advertising or broadcasting live feed for your event as a giant TV set.
Specifications
| Truck mobile billboard | ||
| Pixel Pitch | 8mm | 10mm |
| Pixel Density | 15,625 px/m2 | 10,000 px/m2 |
| LED Type | SMD3535 | SMD3535 |
| LED Configuration | 1R1G1B | 1R1G1B |
| Cabinet Dimension | 1280*768mm | 1280*960mm |
| Cabinet Resolution | 160*96px | 128*96px |
| Cabinet Weight | 60kg | 60kg |
| Cabinet Material | cold steel | cold steel |
| Ingress Protection(front/rear) | IP65/IP54 | IP65/IP54 |
| Brightness | >6500nits | >6500nits |
| Viewing Angle(H/V) | 140°/140° | 140°/140° |
| Driving Method | 1/4 Scan | 1/4 Scan |
| Power Consumption(avg.) | 275w/m2 | 275w/m2 |
| Frame Refresh | ≥ 60Hz | ≥ 60Hz |
| Data Refresh Rate | ≥ 1920Hz | ≥ 1920Hz |
| Gray Scale | 16bit | 16bit |
| Power Supply | AC 110/220±10%,50~60Hz | AC 110/220±10%,50~60Hz |
| Temperature(operating/storage) | -40ºC - 60ºC | -40ºC - 60ºC |
| Humidity(operating/storage) | 10%~90%RH/10%~85%RH | 10%~90%RH/10%~85%RH |
| MTBF | ≥1000 Hours | ≥1000 Hours |
| Life Span | ≥100000 | ≥100000 |
| Pixel Failure | <0.0003 | <0.0003 |

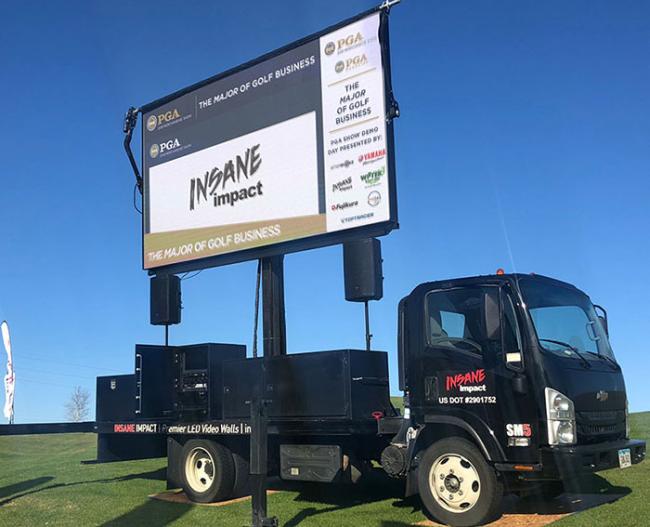

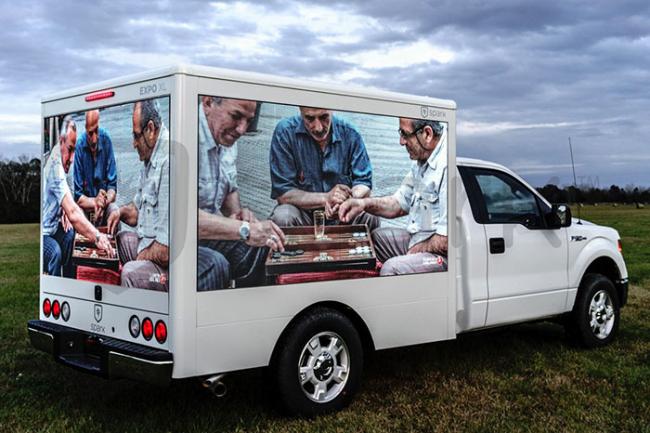

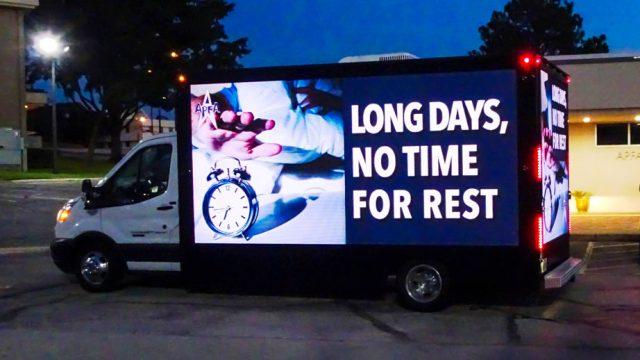

Product Image
Quality assurance
- Every production process has a special person to test 72 hours to ensure quality.
- Have professional engineers to check the quality.
- All products have passed CE, FCC, ROHS and other certifications.
- We have the local agency and you can enjoy the local service.

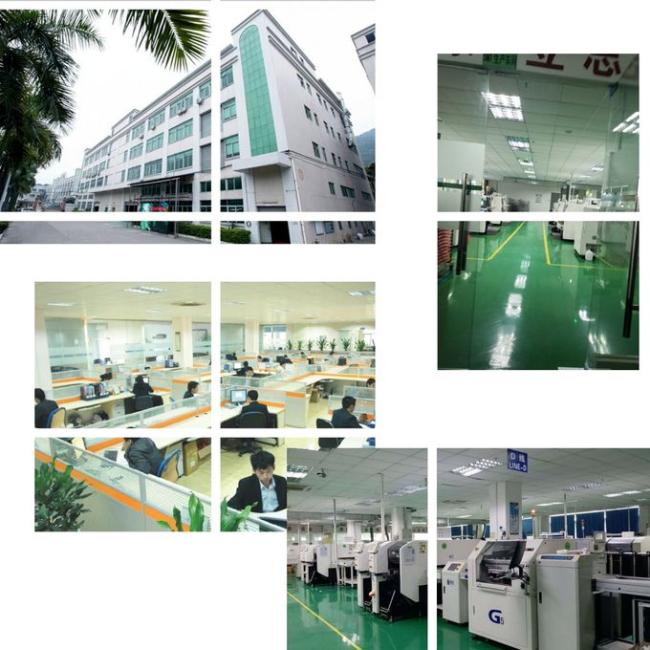

Our company
LED Vision Technology Limited , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
FAQ:
1. How to choose a proper led screen for your need?
You just need to consider three simple questions when you choose a led screen.
1.Will you use it indoor or outdoor?
2.Is it for rental usage(need to be moved from one place to another place very often) or for fixed installation (to be installed in one place forever)?
3.What is the approximate size of the whole led screen you would like to purchase?
2. How to install it after I received it?
We will offer you the drawing to guide you for installation, we could also offer drawing, software set up drawing or photo or arrange our engineer to help if needed.
3. How could I buy the products I need if there is no price in the website and could I get some samples first?
A: You can send your inquiry to us about the products you need,our sales will reply you within 24 hours to help you make the order.We welcome sample order to test and check quantity.
