Hidden Cable Transparent LED Screens Wide Viewing Angle Laminated Safety Glass P3.75-6.67
High Transparency LED Display with Hidden Cable and Excellent Viewing Angle
Features
1. Good visualization: Glass based design allows the light to pass through the glass without any influence to the window structure around..
2. Ultra-thin, and ultra-light. With only 8mm width and 11kg/m2 weight, the installed glass display takes very little space and without any increase in the glass wall loading weight.
3. Easy and convenient maintenance. It can be maintained from inside, safer and more convenient.
4. Saving lighting costs of the window. Besides good advertising effect, Bako Vision LED glass display also helps lighting the window, thus makes the shop window more attractive and saving a lot lighting cost.
5. Wide use range. Wherever the glass wall is, Bako Vision glass LED display can be installed. Such as shop, bank, supermarket, theater, business street, hotel etc.
Specification
| Physical Pitch | 3.75×6.67mm |
| Pixel Configuration | SMD1921 |
| Pixel Density | 39,900 pixels/m² |
| Module Dimensions | 480×320mm |
| Panel Dimensions | 960×640mm |
| NO. of Modules Per Panel | 2×2 |
| Physical Resolution of Module | 128×48dots |
| Physical Resolution of Panel | 256×96dots |
| Panel Material | Aluminum |
| Single Cabinet Weight | 11kg/m² |
| Grayscale | 16bit |
| Colors | 281trillion |
| Contrast Ratio | 2000:1 |
| Average Power Consumption | 207W/m² |
| Max Power Consumption | 690 W/m² |
| Refresh Rate | ＞1920Hz |
| Brightness | ＞5500nits |
| Expected Lifetime | 100,000Hrs |
| Servicing | Rear |
| IP Rating(Front/Rear) | IP30 |

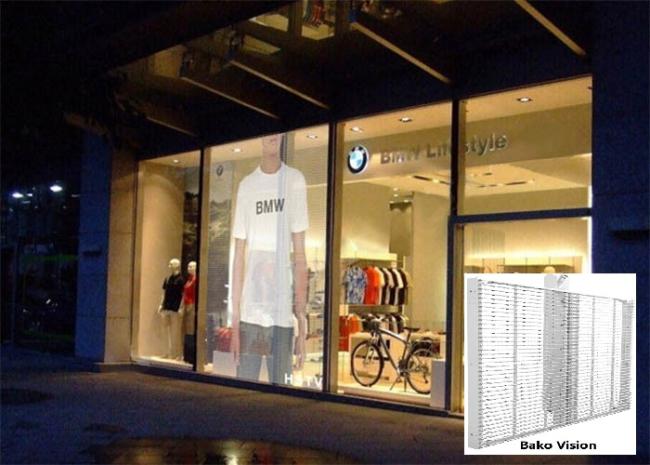

case
FAQ
1. Are you trading company or manufacturer?
We are a professional led screen manufacturer located in Shenzhen since 2005.
2. How to payment?
We accept the L/C, T/T, Western Union.
3. What is the packing method?
We usually use plywood case or flight case.
4. How about the delivery time?
We will ship within 30 working days after you placed the order, but the specific delivered time will be affected by the shipping company and shipping details.
5. Do you provide samples ? Is it free or extra?
We provide samples if you need, but the customers have to pay the sample cost and the courier cost.
6. How do you ship the goods?
We usually ship by DHL, UPS, FedEx or TNT. In addition, Airline and sea shipping also optional.
Our services
Pre-producing
- Get complete requirements of clients.
- To do a thorough analysis.
- Offer a most reasonable and scientific solution.
- Customized design.
In producing
- Producing progress updating for clients.
- Particular installation CAD and design diagram for clients.
After service
- 2 years free maintenance.
- 7 days a week, 24 hours a day for 5 years on-line service for any technical support for any customers.
- Free training for customers in factory.
- Arrange engineer go to your place to support installation.
