Meanwell Power Supply Outdoor Fixed LED Display P8 P10 NOVA Control System
Fixed Installation P8 P10 Outdoor LED Display Waterproof High Brightness
Features:
1. Nationstar LEDs, long lifetime with high brightness 6500nits, visible from every direction even face to sunshine directly.
2. SMD technology, LEDs ensure a large viewing angle, up to 160° horizontally and 140° vertically.
Image no distortion, no color cast in any angle within this range.
3. Cabinet design lightweight, side handle for easy carrying and assemble job.

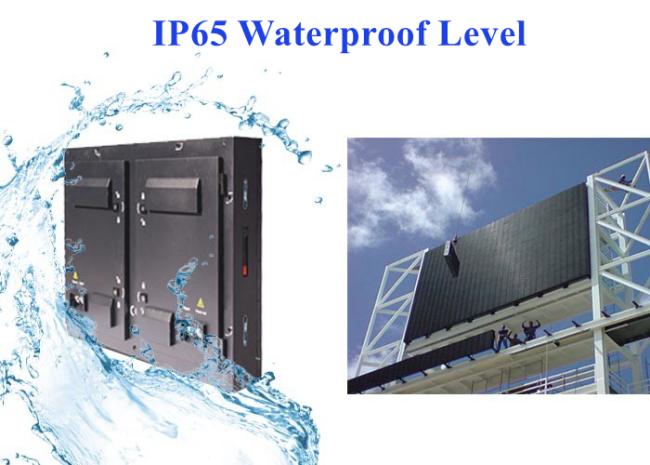

4. IP65 waterproof and dust resistance, durable for any weather conditions.
5. Meanwell brand power supply, saving energy and high efficiency.
6. Digital process: 16bits, contrast ratio 2,000:1, vivid color.
7. Front access makes easy maintenance.
8. There can improve the resolution by changing new module with a smaller pixel, no need to purchase a new screen, this can save lots of costs.
Specifications:
| Pixel Pitch | P4.81 | P6.67 | P8 | P10 |
| LED Type | SMD2727 | SMD2727 | SMD3535 | SMD3535 |
| Module Size(mm) | 250x250 | 320x320 | 256x256 | 320x320 |
| Panel Size(mm) | 1000x1000x150 | 1280x960x150 | 1280x768x150 | 1280x960x150 |
| Module Resolution(WXH) | 52x52 | 48x48 | 32x32 | 32x32 |
| Cabinet Weight | 65/45kg | |||
| Cabinet Material | Steel/ Aluminum | |||
| Gray Scale | 16 bit | |||
| Contrast Ratio | 2000:1 | |||
| View Angle(H/V) | 160°/ 140° | |||
| Refresh Rate | >1920Hz | |||
| Brightness | >6500nits | |||
| IP Rating | IP65 / IP54 | |||
| Servicing | Front / Rear | |||
| Operating Temp/Humidity | -20ºC-50ºC / 10%-90% | |||
| Expected Lifetime | 100,000Hrs | |||
| Power Consumption | Average: 360W/ Panel, Max: 900W/Panel | |||
About us:
LED Vision Technology Limited , started in Shenzhen in 2005, a professional manufacturer of technologically advanced LED displays, focusing on high-end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
Our main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied on the long term partnership with variety channel customers over 120+ countries.
Our Service:
1. We guarantee all our display, modules, spare parts for TWO years.
2. We provide technology training for free, which contains the operation and maintenance training of the LED display in the factory.
3. After sales, if you have any problem with our products, you can inform us by E-mail, we will reply to you at once.
4. We can provide the training and technical support for the customer in the factory if the customer asks.
5. we have a warehouse in the USA and our engineer stay in the USA to deal with after-sales and provide technical support.
6. We often attend exhibitions around the world every year, so we can visit you if you need at that time.
