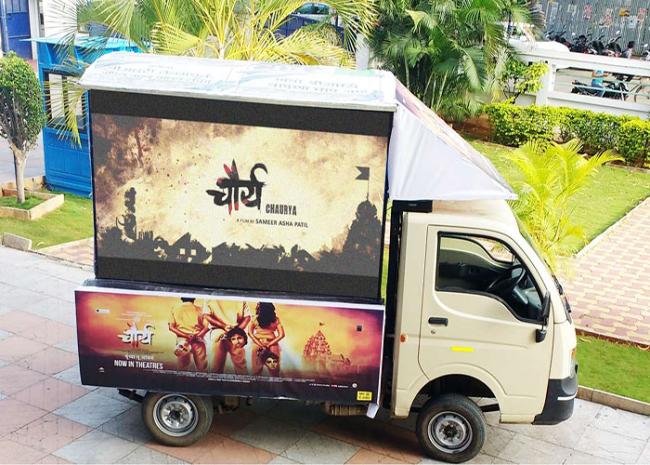

Outdoor Mobile Truck Mounted Led Screen Panel 6500 Nits For Commercial Advertising
Outdoor Mobile Trailer Mounted Led Panel Display For Commercial Advertising
Main Feature
1. The protection level can reach up to IP65 ,and applicable to any rainy weather ,thus can used in any outdoor environment.
2. Wider viewing angle: Horizontal≥120º;Vertical≥120º,can attract more audiences'eye, very good for outdoor advertising.
3. Customized available: Cabinet size and materials can be customized according different projects.Our mobile LED screen trucks are very quick to setup, and are completely self-contained allowing for extreme flexibility.
4.We take Pixel-To-Pixel Calibration System to make the shows image effectively stable.
5. A module mask had mounted, anti-Oxidation module frame with protection from deformation.
6. Another feature of truck mobile LED display is the movable power supply control room, which not only facilitates control, but also reduces unnecessary power consumption.
Specifications
| Truck mobile billboard | ||
| Pixel Pitch | 4.81mm | 6.67mm |
| Pixel Density | 15,625 px/m2 | 10,000 px/m2 |
| LED Type | SMD2727 | SMD2727 |
| LED Configuration | 1R1G1B | 1R1G1B |
| Cabinet Dimension | 1000*1000 mm | 1280*960mm |
| Cabinet Resolution | 208*208 px | 192*144 px |
| Cabinet Weight | 60kg | 60kg |
| Cabinet Material | cold steel | cold steel |
| Ingress Protection(front/rear) | IP65/IP54 | IP65/IP54 |
| Brightness | >6500nits | >6500nits |
| Viewing Angle(H/V) | 140°/160° | 140°/160° |
| Driving Method | 1/4 Scan | 1/4 Scan |
| Power Consumption(avg.) | 360w/m2 | 360w/m2 |
| Frame Refresh | ≥ 60Hz | ≥ 60Hz |
| Data Refresh Rate | ≥ 1920Hz | ≥ 1920Hz |
| Gray Scale | 16bit | 16bit |
| Power Supply | AC 110/220±10%,50~60Hz | AC 110/220±10%,50~60Hz |
| Temperature(operating/storage) | -40ºC - 60ºC | -40ºC - 60ºC |
| Humidity(operating/storage) | 10%~90%RH/10%~85%RH | 10%~90%RH/10%~85%RH |
| MTBF | ≥1000 Hours | ≥1000 Hours |
| Life Span | ≥100000 | ≥100000 |
| Pixel Failure | <0.0003 | <0.0003 |
Applications:
Our full color LED display are widely used in chain shop,large shopping mall, hospitals,bars,shopping mall,outdoor,advertising media,Entertainment centers,Square and so on .
Advantages
- With strict quality control process, from raw materials to finished products, all steps of indoor LED screen are supervised with guarantee of best quality.
- IP65 protection level to ensure that the LED screen to work all day in outdoor environments and avoid being affected by the weather.
- All sides could playadvertising to guarantee people on the street could see it clearly at different angles.
- It can be shown at any time, communication, publicity coverage extensively,and interact with the audience at any time. At the same time get the best effect of advertising.
Our Promise
24 hours response for your inquiry.
7 days per week to help you.
365 days after serbice support.
All lifetime guarantee and free charge within two years.
OEM&ODM, CUSTOMIZED DESIGN SERVICE,
Patent right protection and distributorship protection.
