Full Color Outdoor LED Advertising Display Billboard P10mm 1 / 4 Scan SMD 3535
P10mm Full Color Outdoor LED Advertising Display Billboard 1 / 4 Scan
Full Color Outdoor LED Main advantages:
1. Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light.
2.Safty Lock. Upgrated double safty lock design, double hanging lock and stable side lock.
3.The cabinet of unit moules asopts to high-temperature spraying technology, the antirust function is greatly improved.
4. Against Outdoor Envioronment
BOF series is IP65/54 validated as dust-and water-proof,delivers brightness levels up to 6,500nits and an ultra-wide viewing angle to give audience clear visual effect in any weather condition, auto-adjusted brightness according to day and night.
5.Multifunctional cabinet, just change the module to upgrade the product with low cost;
6. The control system,we classified synchronous control and asynchronous control.Currently our asynchronous control can make use of USB,WIFI and 4G to transmitted.
Full Color Outdoor LED Specifications, the catalogue can be download⇒
| BOF-10 | |
| Physical Pitch | 10mm |
| Pixel Configuration | SMD 3535 |
| Pixel Density | 10,000 pixels/m² |
| Module Dimensions(W*H)(mm) | 320*320 |
| Panel Dimensions(mm) | 1280*960*150 |
| NO. of Modules Per Panel (W*H) | 4*3 |
| Physical Resolution of Module (W*H) | 32*32 |
| Physical Resolution of Panel (W*H) | 128*96 |
| Panel Material | Steel/ Aluminum |
| Colors | 281 trillion |
| Brightness | >6,500 nits |
| Weight (kg/m²) | 65/45 |
| Processing | 16 bit |
| Refresh Rate | >1920 Hz |
| IP Rating | IP65/ IP54 |
| Viewing Angle | V:160 degree H: 140 degree |
| Expected Lifetime | 100,000 Hrs |
| Operating Temp/Humidity | -20ºC-50ºC/ 10%-90% |
| Storage Temp/Humidity | -20ºC-50ºC/ 10%-90% |
| Avg./ Max. Power Consumption | 360/900W/ panel |
| Servicing | Front/Rear |

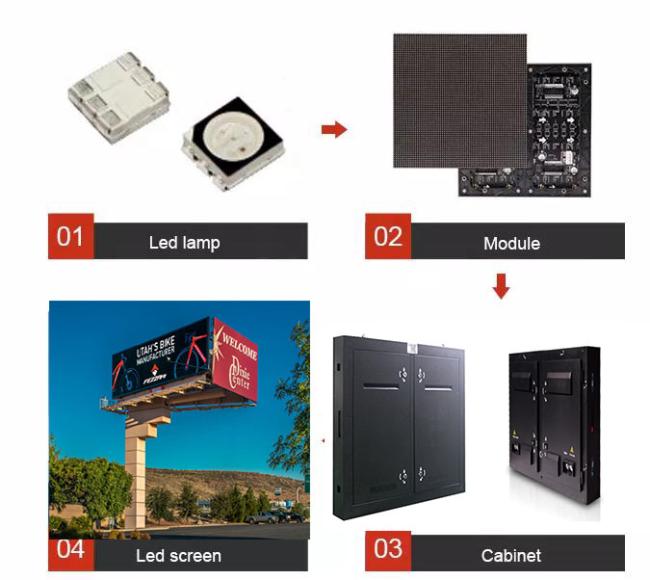

Full Color Outdoor LED Procesure Details

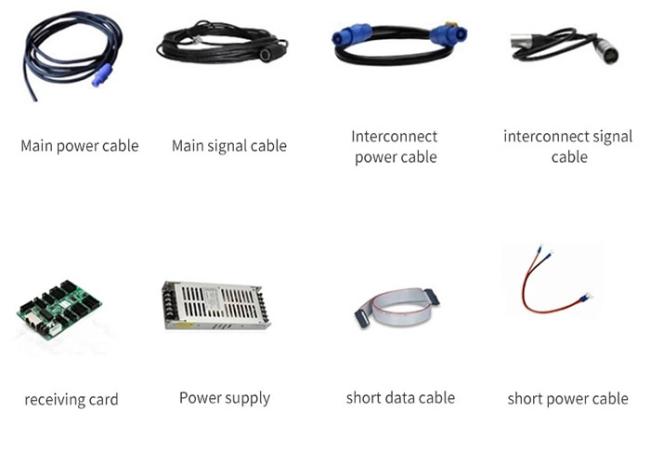

The related accessories

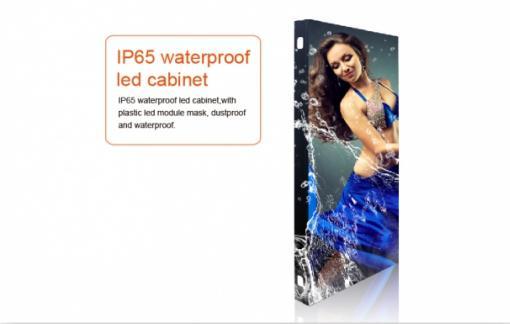

2. IP65 Waterproof, you can click the photo as follow and then you will get the video. ↓↓↓↓↓↓↓↓

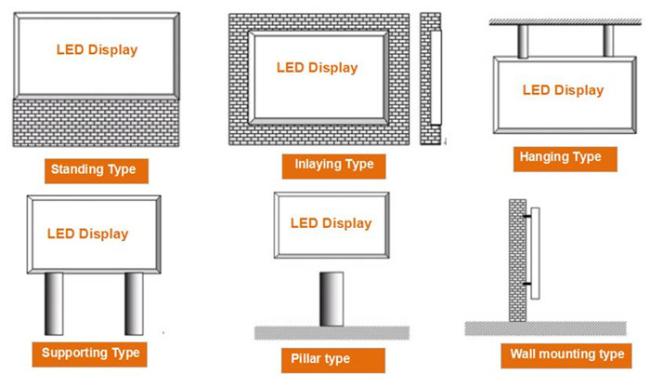

3. Multiple installation methods

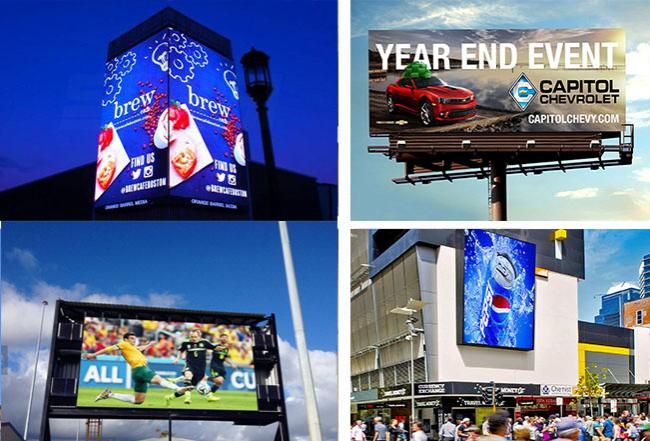

Full Color Outdoor LED Applications:
Ideal for dazzling different events, such as Stage, Concert, Fashion Show, Wedding, Conference, Building, Hotel, Club & Bars, Festival, etc.
About us
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
Our Service
1) Reply your inquiry in 24 working hours.
2) Customized design is available,OEM & ODM are welcomed.
3) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
4) Special discount and protection of sales area provided to our distributor.
5) Warmly welcome your visit in our company if available.
6) . Warranty
(A) We provide warranty of all components for 24 months. During this time, we will replace or repair our goods for free if there is something wrong with them.
(B) We will provide maintenance for a lifetime and charge for the raw materials only.
7) Technology Training
(A) We provide the technology training for free, which contains the operation training and maintenance training in the factory.
(B) We will send our engineers to your country by negotiation.
