Waterproof Outdoor Rental Led Screen 6000 Nits Brightness 2000Hz Refresh Rate P3.91 P4.81

Price Negotiable
Price: Negotiation
MOQ: Negotiation
Delivery Time: 15-25 days
Brand: Bako Vision
Product Description

P3.91mm P4.81mm Waterproof Outdoor Rental LED Display Screen Full Color Wide Viewing Angle for Business



Features:



Fast Installation and Easy Maintenance


     1. Truss hanging and ground support both available
     2. Cable-less between modules
     3. Front and rear access
     4. Tools free installation







Slim,Light Weight and Quiet


     1. 500mm×500mm or 500mm×1000mm options
     2. 80mm thickness
     3. Fanless design



Superior Electrical Features


     1.Dual signal backup port
     2. UI LCD monitoring display indicates the status





  BOR-Ⅰ-3 BOR-Ⅰ-4
Physical Pitch 3.91mm 4.81mm
Pixel Configuration SMD1921 SMD2525
Pixel Density 65,536 pixels/㎡ 43,264 pixels/㎡
Module Dimensions(W x H) (mm) 250 x 250 / 250 x 500 250 x 250 / 250 x 500
Panel Dimensions (mm) 500 x 500 x 80 / 500 x 1000 x 80 500 x 500 x 80 / 500 x 1000 x 80
NO. of Modules Per Panel (W x H) 2 x 2 2 x 2
Physical Resolution of Module (W x H) 64 x 64 / 64 x 128 52 x 52 / 52 x 104
Physical Resolution of Panel (W x H) 128 x 128 / 128 x 256 104 x 104 / 104 x 208
Panel Material Die-Casting Aluminum Die-Casting Aluminum
Single Cabinet Weight 9 / 15 kg/panel 9 / 15 kg/panel
Processing 16bit 16bit
Colours 281 trillion 281 trillion
Contrast Ratio 4,000 : 1 4,000 : 1
Average Power Consumption 75 /150 W /panel 75 /150 W /panel
Max Power Consumption 225 /550 W /panel 225 /500 W /panel
Operating Temp/Humidity -20℃ - 60℃ / 10℃ - 60℃ -20℃ - 60℃ / 10℃ - 60℃
Storage Temp/Humidity -30℃ - 60℃ / 10℃ - 60℃ -30℃ - 60℃ / 10℃ - 60℃
Refresh Rate >1,920 Hz >1,920 Hz
Brightness >6,000nits >6,000nits
Horizontal Viewing Angle 160° 160°
Vertical Viewing Angle 140° 140°
Expected Lifetime 100,000 Hrs 100,000 Hrs
Max Stacking 20/10 20/10
Max Hanging 20/10 20/10
Servicing Front / Rear Front / Rear
IP Rating (Front/Rear) IP 65 / IP 54 IP 65 / IP 54

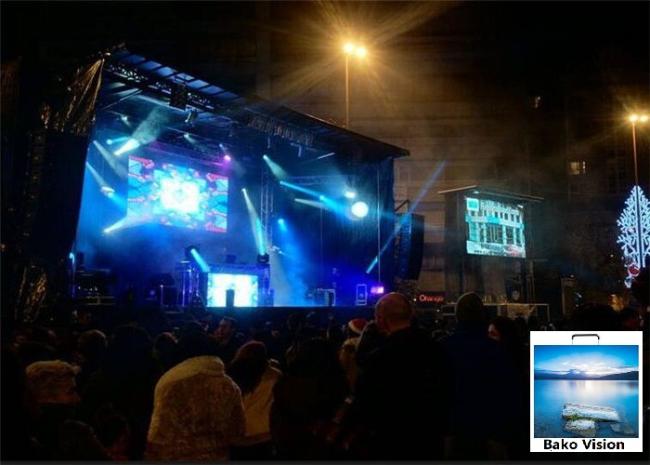

Application





Our Service



Pre-sales service :

Our team design and make solutions based on different requirements from different customers, what you think is what we can do.



After-sales services:

1. We provide customer service through What's APP, phone or email, supply you video or drawing to solve problems.

2. We provide remote control service through internet to achieve real time service, which will short time of solving problems.

3. We provide one professional engineer to one customer to keep fastly reply.



Installation Service:

1. We provide detailed CAD drawing to customer for preparing metal structure.

2. We could dispatch our engineer to your place , guide installation and free training.

3. Special designs have special solutions; we will make perfect solutions to satisfy all customers' requirements
