IP65 Outdoor Curtain Rental LED Display Nationstar Lamp 6000 Nits Brightness For Stage

Price Negotiable
Price: Negotiation
MOQ: Negotiation
Delivery Time: 15-25 days
Brand: Bako Vision
Product Description

P3.91mm P4.81mm Curtain Waterproof Outdoor Rental LED Display Screen



Features:

1 ) Ultra-thin and Super-light: only 9KG per cabinet of 500mm W*500mm H and 15 KG per cabinet of 500mm W*1000mm H and depth is only 80mm, can stand on floor independently.

2) 500*1000mm cabinet can work with our 500*500mm die-casting aluminum cabinet so the height of LED screen can be both 1m and 0.5m

3) The appearance is very simple and elegant,looks very high end

4) With specially designed fast lock system, easy to install and dismantle

5) The new structure design enables diversified installation to meet the hanging-up and stacking requirements.

6) The tolerance is less than 0.2mm so the gap between adjacent cabinet can be made to minimum.Surface is very flat,viewing angle is very wide.

7) .High refresh rate with NOVA control system,no scaning line when photographed.

8) . Due to the light weight and low power consumption, it can reduces the labor cost,operating cost and transportation cost

9) 16 bit color showing very clear and vivid video and images.

10) Good thermal design, excellent heat dissipation.



Specification

  BOR-I-3 BOR-I-4
Physical Pitch 3.91mm 4.81mm
Pixel Configuration SMD1921 SMD2525
Pixel Density 65,536 pixels/Sqm 43,264 pixels/Sqm
Module Dimensions(W x H) (mm) 250 x 250 / 250 x 500 250 x 250 / 250 x 500
Panel Dimensions (mm) 500 x 500 x 80 / 500 x 1000 x 80 500 x 500 x 80 / 500 x 1000 x 80
NO. of Modules Per Panel (W x H) 2 x 2 2 x 2
Physical Resolution of Module (W x H) 64 x 64 / 64 x 128 52 x 52 / 52 x 104
Physical Resolution of Panel (W x H) 128 x 128 / 128 x 256 104 x 104 / 104 x 208
Panel Material Die-Casting Aluminum Die-Casting Aluminum
Single Cabinet Weight 9 / 15 kg/panel 9 / 15 kg/panel
Processing 16bit 16bit
Colours 281 trillion 281 trillion
Contrast Ratio 4,000 : 1 4,000 : 1
Average Power Consumption 75 /150 W /panel 75 /150 W /panel
Max Power Consumption 225 /550 W /panel 225 /500 W /panel
Operating Temp/Humidity -20ºC - 60ºC / 10ºC - 60ºC -20ºC - 60ºC / 10ºC - 60ºC
Storage Temp/Humidity -30ºC - 60ºC / 10ºC - 60ºC -30ºC - 60ºC / 10ºC - 60ºC
Refresh Rate >1,920 Hz >1,920 Hz
Brightness >6,000nits >6,000nits
Horizontal Viewing Angle 160° 160°
Vertical Viewing Angle 140° 140°
Expected Lifetime 100,000 Hrs 100,000 Hrs
Max Stacking 20/10 20/10
Max Hanging 20/10 20/10
Servicing Front / Rear Front / Rear
IP Rating (Front/Rear) IP 65 / IP 54 IP 65 / IP 54

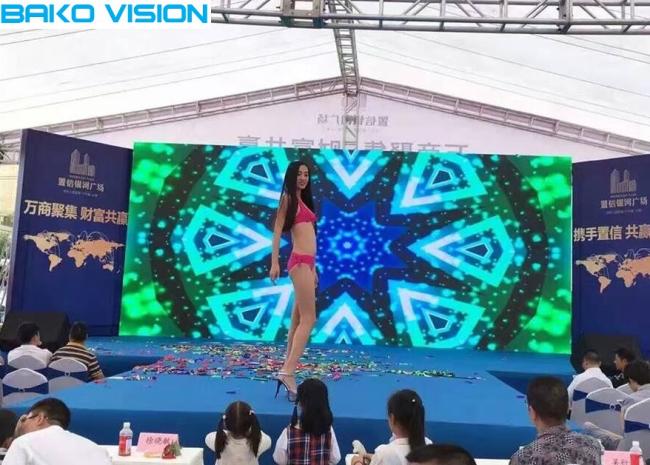

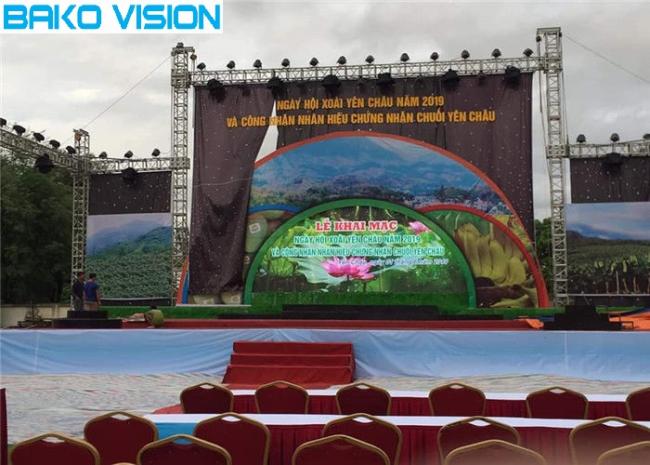

Application
