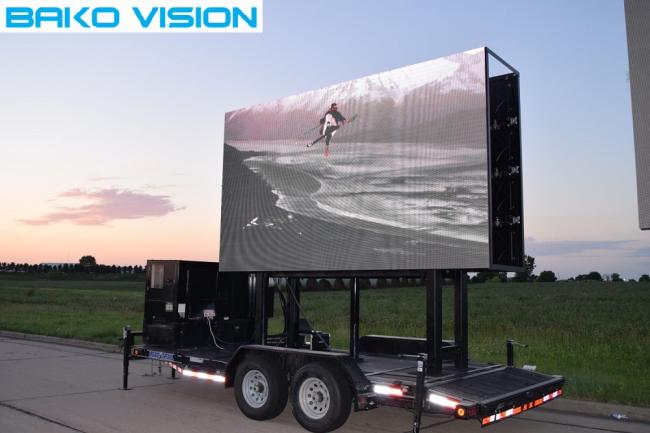

P4.81 P6.67 Mobile LED Screen Outdoor Advertising Billboard IP65 Waterproof
Outdoor Stable Led Screen on Moving Car/Truck For Advertising and Billboard
Quick Details:
1, Pixel Pitch: 4.81mm.6.67mm
2, SMD LEDs, Wide viewing angle: 160°/ 140°.
3, Digital Process: 16bits.
4, Standard cabinet size: 1000 X 1000 x 150mm, cabinet weight:40kg.
5, Warranty: 2years.
6, Recommended minimum viewing distance: 5m.
Description:
Bako Vision outdoor led digital billboards pixel include 4.81mm, 6.67mm,8mm, 10mm, 16mm, within these pixels, 4.81mm,6.67mm,8mm are the most hot-selling and highest cost-effective series.
Features:
1, High IP Rating IP65, good waterproof and dust resistance, suitable for every condition.
2, Wide viewing angle 160° for broader reach, seamless in all direction with same image quality output, suitable for large gatherings.
3, High brightness from 6,000nits to 9,000nits, visible from every direction even face to direct sunshine.
4, Good heat dissipation with fans and using meanwell power supply, long lifespan.
Advantages:
1, High quality SMD led panels, stable and high durability.
2, Without ghosting, clear and clean.
3, High fresh rate up to 2,000Hz, high contrast to 2,000:1, vivid color.
Specification
| BOF-4 | BOF-6 | |
| Physical Pitch | 4.81mm | 6.67mm |
| Pixel Configuration | SMD2727 | SMD2727 |
| Pixel Density | 43,264 pixels/Sqm | 28,224 pixels/Sqm |
| Module Dimensions(W x H) (mm) | 250 x 250 | 320 x 320 |
| Panel Dimensions (mm) | 1000 x 1000 x 150 | 1280 x 960 x 150 |
| NO. of Modules Per Panel (W x H) | 4 x 4 | 4 x 3 |
| Physical Resolution of Module (W x H) | 52 x 52 | 48 x 48 |
| Physical Resolution of Panel (W x H) | 208 x 208 | 192 x 144 |
| Panel Material | Steal / Aluminum | Steal / Aluminum |
| Weight (kg/Sqm) | 40 | 45 |
| Processing | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion |
| Contrast Ratio | 2,000 : 1 | 2,000 : 1 |
| Average Power Consumption | 360 W /panel | 360 W /panel |
| Max Power Consumption | 900 W /panel | 900 W /panel |
| Brightness | >6,500 nits | >6,500 nits |
| Refresh Rate | >1,920 Hz | >1,920 Hz |
| Vertical Viewing Angle | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front / Rear | Front / Rear |
| IP Rating (Front/Rear) | IP 65 / IP 54 | IP 65 / IP 54 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10ºC - 90ºC | -20ºC - 50ºC / 10ºC - 90ºC |
| Storage Temp/Humidity | -20ºC - 50ºC / 10ºC - 90ºC | -20ºC - 50ºC / 10ºC - 90ºC |
Case
Pre-sale service
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide professional solutions based on customer's requirement.
4. Offer sample and all document as customers required.
5. Other services, such as factory visiting and so on.
In-sale service
1. Tracking report of production.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
After-sale service
1. Lifetime maintenance and software upgrade.
2. Complaint respond period not exceed 24 hours, maintenance guidance and problem solution supplied in 48 hours.
3. Free technician training.
4. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
5. Engineer guide installation onsite if needed.
