High Brightness Outdoor Full Color Led Display Advertising P5.95 Meanwell Power Supply
P5.95 Outdoor Rental LED Display, High Brightness Full Color LED Video Wall Advertising
Product Certification:
Parameters:
| Pixel Pitch | P3.91 | P4.81 | P5.95 | P6.25 | |||
| LED Type | SMD1921 | SMD2525 | SMD2525 | SMD2727 | |||
| Module Size | 250*250mm / 250*500mm | ||||||
| Cabinet Size | 500*500mm / 500*1000 | ||||||
| Module Resolution | 64*64/64*128 | 52*52/52*104 | 42*42/42*81 | 40*40/40*80 | |||
| Cabinet Weight | 9/15KG | ||||||
| Cabinet Material | Die-Casting Aluminum | ||||||
| Gray Scale | 16 bit | ||||||
| Contrast Ratio | 4000:1 | ||||||
| View Angle(H/V) | 160°/ 140° | ||||||
| Refresh Rate | ＞1920Hz | ||||||
| Brightness | ＞6000nits | ||||||
| IP Rating | IP65 / IP54 | ||||||
| Servicing | Front / Rear | ||||||
| Operating Temp/Humidity | -10℃-60℃ / 10%-60% | ||||||
| Expected Lifetime | 100,000Hrs | ||||||
| Average Power Consumption | 75/150W/ Panel | ||||||
Features:
Slim, Light Weight and Quiet
● 500mmx500mm or 500mmx1000mm options
● 80mm thickness
● Fanless design
Superior Electrical Features
● Dual signal backup port

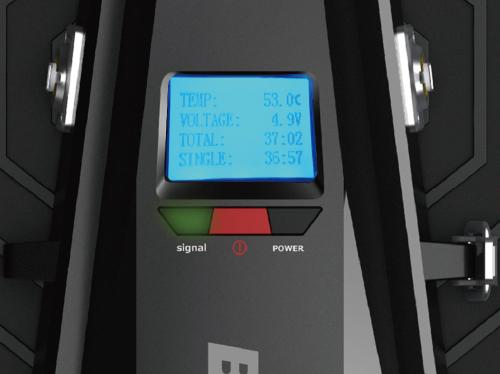

● UI LCD monitoring display indicates the status
Fast Installation and Easy Maintenance
● Truss hanging and ground support both available
● Cable-less between modules
● Front and rear access
● Tools free installation

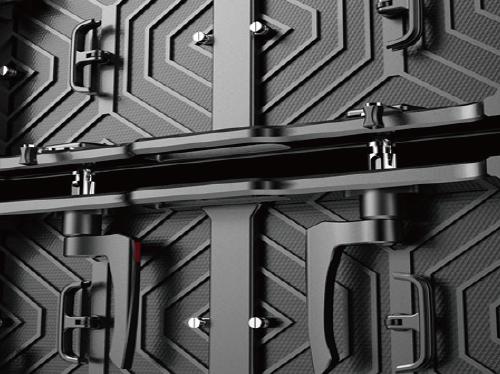

Conection System:
Cases:
Company Introduction:
LED Vision Technology Limited , started in Shenzhen in 2005,a world class manufacturer of
technologically advanced LED displays,it is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION product lines have include I/O rantal,I/O fixed, UHD fine pitch, transparent screen,advertising poster,foldable screen… meanwhile, based on our experienced R&D team,and comprehensive management , we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
